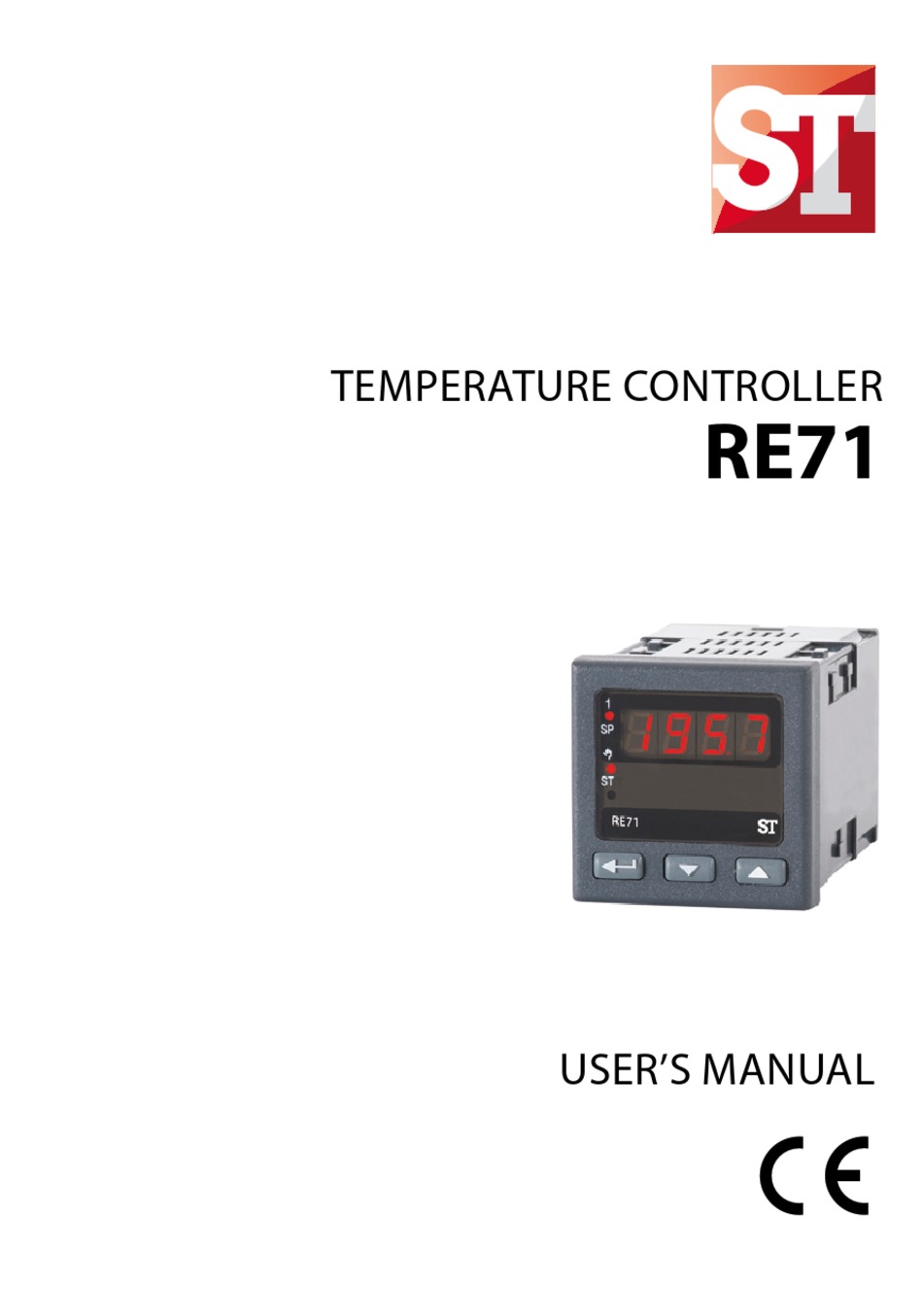

temperature controller
RE71
user's manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE71 and is the answer not in the manual?

Questions and answers

Summary of Contents for ST RE71

  • Page 1 RE71 user’s manual...

  • Page 3: Table Of Contents

    CONTENTS 1. APPLICATION ..............5 2. CONTROLLER SET .............. 5 3. BASIC REQUIREMENTS, OPERATIONAL SAFETY ......6 4. INSTALLATION ..............6 4.1. Controller Installation ............6 4.2. Electrical Connections ............8 4.3. Installation Recommendations ..........9 5. STARTING TO WORK ............10 6. SERVICE ................ 10 6.1.

  • Page 5: Application

    1. APPLICATION The RE71 controller is destined for the temperature control in plastics, food, dehydration industries and everywhere when the temperature sta- bilizing is necessary. Main features of the RE71 controller: direct co-operation with resistance thermometers (RTD) or thermo- couple (TC) sensors, two-stage control acc.

  • Page 6: Basic Requirements, Operational Safety

    3. BASIC REQUIREMENTS, OPERATIONAL SAFETY In the safety service scope, the controller meets to requirements of the EN 61010-1 standard. Observations Concerning the Operational Safety: · All operations concerning transport, installation, and commissioning as well as maintenance, must be carried out by qualified, skilled personnel, and national regulations for the prevention of accidents must be observed.
  • Page 7 Fig. 1. Controller fixing The panel cut-out should have 45 x 45 mm dimensions. +0,6 +0,6 The controller must be introduced from the panel front with disconnec- ted supply voltage. Before the insertion into the panel, one must check the correct placement of the seal. After the insertion into the hole, fix the controller by means of screw clamps.

  • Page 8: Electrical Connections

    4.2. Electrical Connections Make electrical connections to terminal strip and next, insert strips into the controller sockets. The controller has two separable terminal strips. One strip enables the connection of the supply and outputs by a wire of 2.5 mm cross- section, the second strip enables input signal connections by a wire of 1.5 mm...

  • Page 9: Installation Recommendations

    Supply Output - Relay Output – binary voltage vor SSR control Fig. 5. Connection of the supply and load circuit. 4.3. Installation Recommendations In order to obtain a full fastness against electromagnetic noise in an environment with unknown noise level, it is recommended to observe following principles: –...

  • Page 10: Starting To Work

    5. STARTING TO WORK After switching the supply on, the controller carries out the display test, re71 displays the , inscription, the program version and next, displays the measured value. A character message informing about abnormalities may appear on the display (table 4).

  • Page 12: Programming Controller Parameters

    6.1. Programming Controller Parameters The pressure and holding down the button during ca 2 seconds causes the entry in the programming matrix. The programming matrix can be protected by an access code. In case when giving a wrong value of the code, it is only possible to see settings through – without possibility of changes.

  • Page 13: Programming Matrix

    6.2. Programming Matrix...

  • Page 14: Setting Change

    6.3. Setting Change The change of parameter setting begins after pressing the but- ton during the display of the parameter name. The setting choice is carried out through buttons, and accepted by the button. The change cancellation follows after the simultaneous pressure of buttons or automatically after 30 sec since the last push pressure.

  • Page 15: Parameter Description

    List of configuration parameters Table 1 Parameter Manufactu- Change range of the Parameter description symbol rer setting parameter inp – Input parameters 0_dp: without decimal point Position of the decimal 1-dp point 1_dp: 1 decimal point shif Shift of the measured -99.9...99.9°C value outp –...
  • Page 16 pid – Parameters PID Proportional band 0.1...999.9°C PB_FABR Integration time constant 0...9999 s Differentiation time constant 60.0 0...999.9 s Correction of control signal 0...100.0% for P or PID control type Pulse period 20.0 0.5...99.9 s alar – Alarm parameters aLsp Set point value for absolute MIN...MAX alarm...

  • Page 17: Control

    Parameters depending on the measured range table 2 Sensor PB_FABR HY_FABR -50.0 100.0 15.0 Pt100 - 50...100°C Resist. thermom. 250.0 20.0 Pt100 0...250°C Resist. thermom. Pt100 0...600°C 600.0 30.0 Resist. thermom. Thermocouple of J 0...250°C 250.0 20.0 Thermocouple of J 0...600°C 600.0 30.0...

  • Page 18: Innovative Smart Pid Algorithm

    7.2. PID Control When we want to obtain a higher accuracy of temperature control, one must use the PID algorithm. The applied innovative SMART PID algorithm is characterized by an increased accuracy for the expanded range of control object classes. The fine tuning of the controller to the object consists on the settlement of the proportional element, integration element, differentiation element and output pulsing period.
  • Page 19 The autotuning process will be broken without PID settings calculations, if a controller supply decay occurs or the button is pressed. In such a case, the control with current PID settings will begin. If the autotuning experiment does not end with success, then an error code will be displayed acc.

  • Page 20: Alarms

    7.2.2. Proceeding Way in Case of an Unsatisfactory PID Control It is recommended to choose PID parameters, changing the value in a twice higher or twice less. During the change, one must respect follo- wing principles. a) Slow response of the jump: –...

  • Page 21: Additional Functions

    Relative lower Relative lower Relative Relative (out = dulo) (out = dulo) internal external (out = duin) (out = duou) Fig. 11. Kind of alarms The set point value for absolute alarms is the value defined by the aLsp parameter, and for relative alarms, it is the deviation from the set point value - aLdu parameter.

  • Page 22: Manual Control

    9.2. Manual Control The manual control gives the possibility to identify, test the object, or control it after a sensor damage. The entry to the manual control mode follows after holding the button down during the control signal display. The manual control is signalled by the pulsation of the diode with .

  • Page 23: Error Signalling

    10. ERROR SIGNALING Character messages signaling the incorrect controller operation Table 4 Error code (upper Reason Procedure display) Check, if the type of chosen sensor is in compliance with the connected one. Check if input Down overflow of the signal values are situated in the measuring range or lack appropriate range –...

  • Page 24: Technical Data

    11. TECHNICAL DATA Input Signals Input signals and measuring ranges for inputs Table 5 Sensor type Range Basic error Resistance thermometer (acc. to EN 60751:2009), measuring current 0.25mA - 50...100 ±0.8 Pt100 0...250 ±1.3 0...600 ±3.0 Thermocouple of J type (acc. to EN 60584-1:1997) 0...250 ±2.0 Fe-CuNi...
  • Page 25 Kinds of outputs: - voltageless relay switching contact, overload capacity: 5 A/230 V, - binary voltage voltage 6 V, resistance limiting the current: 10 W Way of output operation: - reverse for heating - direct for cooling Rated operating conditions: - supply voltage 230 V a.c.
  • Page 26 Safety requirements acc. to EN 61010-1 - isolation between circuits basic - installation category - pollution level - maximal phase-to-earth operating voltage: - for supply circuit, outputs 300 V - for input circuits 50 V - altitude above sea level 2000 m Electromagnetic compatibility: - noise immunity...

  • Page 27: Kontroller Execution Codes

    12. ORDER CODES The coding way is given in the table 6. Ordering codes: Table 6 Temperature Controller RE71 - Input: RTD Pt100 (-50...100°C) ....01 RTD Pt100 (0...250°C) ....02 RTD Pt100 (0...600°C) ....03 thermocouple J (Fe-CuNi) (0...250°C) ....04 thermocouple J (Fe-CuNi) (0...600°C) ....
  • Page 28 Example of Order: The code: RE71 - 06 2 00 E 0 means: RE71 – temperature controller of RE71 type – input: TC J, (0...900°C) – output: binary 0/6 V for SSR control – standard version – English language – without extra quality requirements...

  • Page 29: Maintenance And Guarantee

    13. MAINTENANCE AND GUARANTEE The RE71 controller does not require any periodical maintenance. In case of some incorrect operations: 1. From the Shipping During the Period Given in the Annexed Guarantee Card One should take the controller down from the installation and return it to the Manufacturer’s Quality Control Dept.
  • Page 32 Sifam Tinsley Instrumentation Ltd Sifam Tinsley Instrumentation Inc. Unit 1 Warner Drive, 3105, Creekside Village Drive, Springwood Industrial Estate Suite No. 801, Kennesaw, Braintree, Essex, UK, CM72YW Georgia 30144 (USA) E-mail: sales@sifamtinsley.com E-mail Id : psk@sifamtinsley.com Web: www.sifamtinsley.com/uk Web: www.sifamtinsley.com Contact: +44(0)1803615139 Contact No.: +1 404 736 4903...
