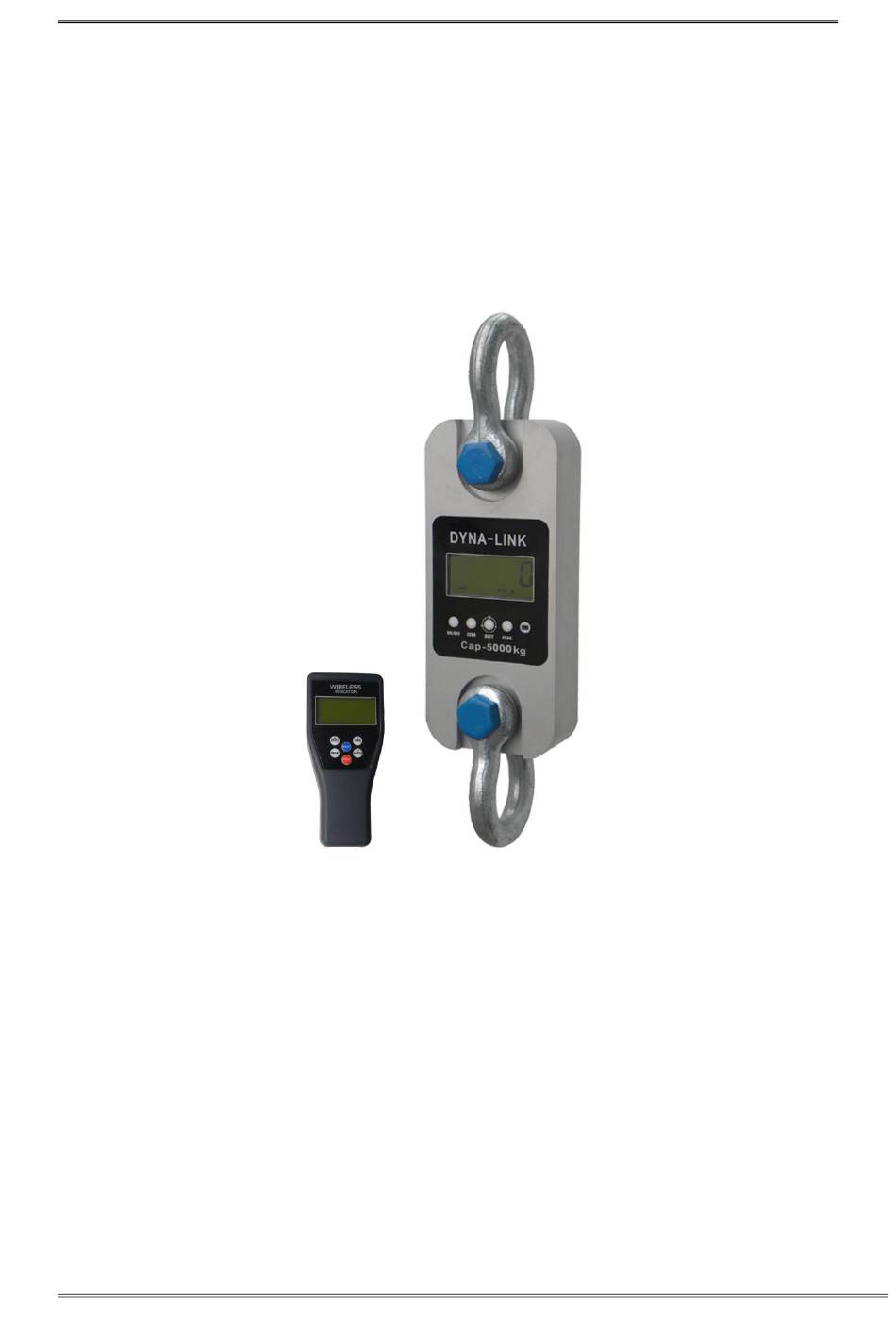

- Page 1 WIRELESS DYNAMOMETER USER MANUAL Model: W3 USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFE OPERATION GUIDE………………………………………… ..…...……….…..…2 CHAPTER 1 FEATURES AND SPECIFICATION............ 3 1. Features......................3 2. Main technical data....................3 3. Specification......................4 4. Appearance illustration....................4 5. Power supply....................5 CHAPTER 2 DISPLAY AND KEYS................5 1. LCD display......................5 2. Keys........................6 CHAPTER 3 WIRELESS INDICATOR OPERATION GUIDE........ -
Page 3: Safe Operation Guide
SAFE OPERATION GUIDE： 1.Do not make lifts beyond rated load capacity of the dynamometer, shackle. Do not perform overhead weighing. Stay clear when Dynamometer is in operation. 3. Do not perform weighing under strong wind condition which may cause incorrect reading. 4. -
Page 4: Features And Specification
CHAPTER 1 FEATURES AND SPECIFICATIONS Introduction: W3 wireless Dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications, Whether used as conventional crane weight or to measure force, W3 wireless Dynamometer is microprocessor controlled for precision accuracy, parameter setting and calibration is easy to operate through wireless indicator. -
Page 5: Specification
3. Specification Capacity(kg) Min.Weight(kg) Division(kg) Total counts (n) Model W3-01 1000 2000 W3-02 2000 2000 W3-03 3000 3000 W3-05 5000 2500 W3-10 10000 2000 W3-20 20000 2000 W3-30 30000 3000 W3-50 50000 2500 W3-100 100000 1000 2000 W3-200 200000 2000 2000 4. -
Page 6: Power Supply
WEIGHTS Model W3-1 W3-2 W3-3 W3-5 W3-10 Unit Weight(kg) 10.4 Weight with shackles(kg) 24.8 Model W3-20 W3-30 W3-50 W3-100 W3-200 Unit Weight(kg) 17.8 Weight with shackles(kg) 48.6 5. Power supply Dynamometer battery: “LR6(AA)”size alkaline batteries. 1.5VX3 Indicator battery: “LR6(AA)”size alkaline batteries. 1.5VX4 Current: the dynamometer average current is about DC 35mA, 3pcs new batteries can be used for about 40hours under continuous working. -
Page 7: Keys
2. Keys a. ON/OFF key 1．Press “ON/OFF” Key 1 Second, the Dynamometer turn on. 2．In ON status，Press “ON/OFF” Key 1 Second，the Dynamometer turn off. b. ZERO key When Dynamometer switch on with no load, but there are small digits on the screen, press this key to obtain the zero reading. -
Page 8: Chapter 4 Dymometer Function Guide
d. 【 MODE】 Used as function shift, or be combined with other keys. ◆ Press 【 MODE】 key once, it display “OFF”, press【 ENTER】 Key , it will wireless turn off dynamometer, and indicator display “noSIG”, means no signal. ◆ Press 【 MODE】 key twice, it display “SETUP”, Press 【 ENTER】 Key access Parameter Setting status. -
Page 9: Zero
◆TURN ON indicator OPERATION DISPLAY ILLUSTRATION 【 】 〖88888〗 ON/OFF Display twice, self test 〖 Ert 〗 Display twice 〖u 1.2〗 Display current software version 〖CH=E3〗 Display current wireless channel E3 〖U=3.98〗 Display current battery voltage is 3.98 〖–––––〗 Waiting stable If display 0, means the indicator can 〖... -
Page 10: Accumulation
5.ACCUMULATION OPERATION DISPLAY ILLUSTRATION Press 【MODE】 key 5 times 〖 ACCU〗 〖No***〗 Press【ENTER】 Current accumulation time 〖H****〗 Front four digits of total value 〖L****〗 Rear four digits of total value After display above contents twice, the dynamometer will return automatically. 6.ACCUMULATION SEARCH OPERATION DISPLAY... -
Page 11: Return
10. RETURN OPERATION DISPLAY ILLUSTRATION 〖 ESC〗 Press【MODE】 key 9 times 〖 press 【 ENTER 】 key 0〗 Return to normal testing status 11. SET POINT There are two user programmable Set-Point can be used for safety and warning applications or for limit weighing. -
Page 12: Chapter 5 Parameter Setting & Calibration
CHAPTER 5 PARAMETER SETTING & CALIBRATION parameter setting and calibration will be operated through wireless indicator 1.Key function FUNCTION 【TARE】 Move digit 【ZERO】 Set value up 【MODE】 Storage and exit 【ENTER】 Confirm 2. Parameter setting OPERATION DISPLAY ILLUSTRATION Press 【 MODE】 key 〖SETUP〗... - Page 13 C: zero-tracking range, 0~5 total 6 options; 0=0d; 1=0.5d; 2=1d; 3=1.5d; 4=2d; 5=2.5d Press【ZERO】 d: display speed， 0~2 total 3 options; 0=slow; 〖Cd=12〗 to choose 1=average; 2=fast; before calibration, set Cd=00 to achieve high accuracy, after calibration, set Cd=11 again, generally choose Cd==12 when ex-stock.. New dynamometer, it display LL=2, if Press【ENTER】...
-
Page 14: Calibration
〖01200〗 Press【ENTER】 New dynamometer it display 01200, if parameter to confirm set, the screen display set value. 〖03000〗 Set “2 LO” or “2 Press【 ZERO 】 HI” Value. e.g.3000kg,input and 【TARE】 3000 Press【ENTER】 〖g= 〗 acceleration of gravity 〖9.7930〗 Pres【 ENTER】 New dynamometer , it display 9.7930, if Press【... -
Page 15: Chapter 6 Signal Illustration
〖 -oL- 〗 〖End〗 Calibration finish 〖 3000〗 Attention: the standard load should be more than 20% capacity, it’s better to use full capacity standard load CHAPTER 6 DISPLAY ILLUSTRATION DISPLAY ILLUSTRATION REMARK 〖noSIg〗 Distance too far. Without wireless signal 〖SEtUP〗... -
Page 16: Chapter 7 Troubleshooting Guide
CHAPTER 7 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOUTION No display Defective battery Replace Defective button Requires authorized service Power button properly Press ON/OFF key firmly in pressed three seconds Digits flash Low battery Replace battery Display doesn’t Faulty load cell or PCB Requires authorized service respond to load Out of calibration...
