SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD
C90 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C90 and is the answer not in the manual?

Questions and answers

Summary of Contents for ShenZhen Chainway Information Technology C90

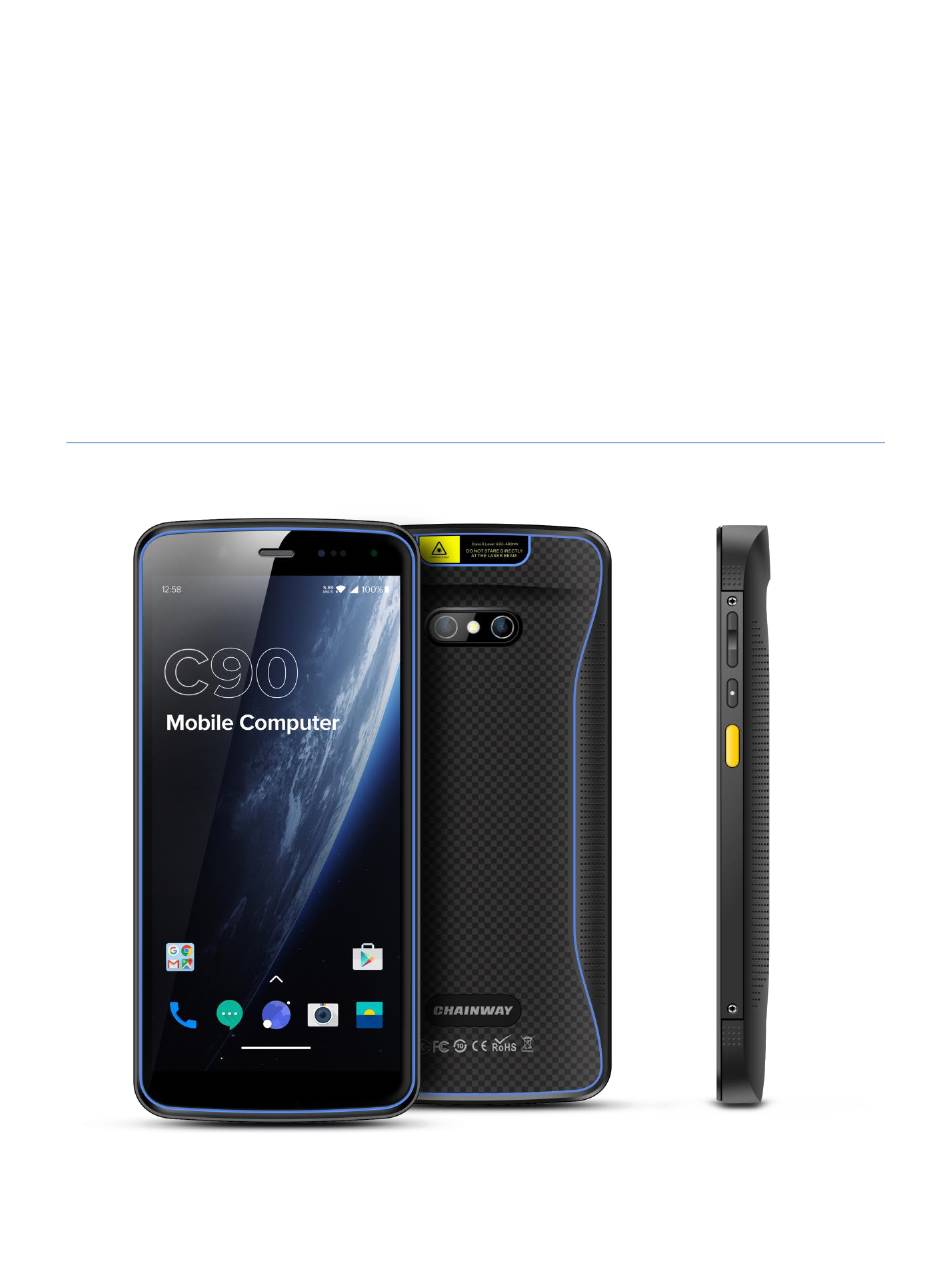

  • Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD C90 User Manual...

  • Page 2: Statement

    Statement 2013 by ShenZhen Chainway Information Technology Co., Ltd. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission written from Chainway. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems.

  • Page 3: Table Of Contents

    Contents Statement ..................1 Chapter 1 Brief Instruction ..............4 Brief Instruction ..............4 Precaution Before Using Battery ......... 5 Chapter 2 Installation Guide .............. 7 2.1 Appearance ................7 2.2 Buttons ..................8 2.3 Micro SD、SIM card Installation ..........9 2.4 Battery Charging ..............
  • Page 4 Chapter 7 Device Specifications ............23...

  • Page 5: Chapter 1 Brief Instruction

    WiFi performance, NFC, front and rear cameras, it possesses the best price versus performance ratio. All these make C90 immensely perfect to be implemented in a wide spectrum of industries, including logistics, warehousing, retail, asset tracking etc., and assisting customers to improve operation and management...

  • Page 6: Precaution Before Using Battery

    Precaution Before Using Battery  Do not leave batteries unused for extended periods of time, either in the product or in storage. When the battery has been unused for 6 months, check the charge status and charge or dispose of the battery as appropriate. ...
  • Page 7  The battery charge time increases significantly.  If a battery is stored or otherwise unused for an extended period, be sure to follow the storage instructions in this document. If you do not follow the instructions, and the battery has no charge remaining when you check it, consider it to be damaged.

  • Page 8: Chapter 2 Installation Guide

    Chapter 2 Installation Guide 2.1 Appearance The C90 device appearance is as follows.

  • Page 9: Buttons

    2.2 Buttons Button Function Power Button Press and hold to turn the device on or off. SCAN 2 Scan Buttons (Left&Right) Volume Volume +/-...

  • Page 10: Micro Sd、Sim Card Installation

    2.3 Micro SD、SIM card Installation User need to install TF card and SIM card according to the slots of card tray as below. Then insert into slot of SIM/TF. 2.4 Battery Charging Use the adapter to charge the battery. Don't use other brands of charger for device.

  • Page 11: Device Power On/Off

    2.5 Device Power on/off Press the „Power‟ button on side about 3s due to power on/off. And press it shortly to wake up.

  • Page 12: Chapter 3 Call Function

    Chapter 3 Call Function 3.1 Phone Click this icon Click the number button to input the numbers. Click the button to confirm and dial. Click the to end the calling.

  • Page 13: Contacts

    3.2 Contacts Click „Contacts‟ to open the contacts list. Click “Create new contact” to add the new contact.

  • Page 14: Messaging

    3.3 Messaging Click to open the message list. Click to input the content. Click to send the message. Click to add photos, videos.

  • Page 15: Chapter 4 Barcode Reader

    Chapter 4 Barcode Reader Open the Barcode2D Demo in APP Center and then press the „Scan‟ button to start scanning. Note: Please scan the barcode correctly, otherwise the scanning might be failed.

  • Page 16: Chapter 5 Rfid Reader(Optional)

    Chapter 5 RFID Reader(optional) 5.1 NFC Open the “NFC” demo within Appcenter, and then reading and writing information of the tag.

  • Page 17: Chapter 6 Other Functions

    Chapter 6 Other Functions 6.1 PING Open the Ping in Appcenter. Set the Ping parameters and select the internal/external addresses.

  • Page 18: Bluetooth

    6.2 Bluetooth 1. Open the Bluetooth demo in Appcenter and turn on the Bluetooth. 2. Input the content or select the file, then scan the nearby Bluetooth printer and pair them. 3. Select the printer and click „Print‟ to print the content.

  • Page 19: Gps

    6.3 GPS 1. Open the GPS demo in Appcenter and turn on GPS module. 2. Set the GPS parameters and get the GPS data information.

  • Page 20: Volume Settings

    6.4 Volume Settings 1. Open the Volume Setting demo in Appcenter. 2. Set the volumes based on the requirements.

  • Page 21: Sensor

    6.5 Sensor Open the Sensor demo in Appcenter. Test the sensor based on the requirements.

  • Page 22: Keyboard

    6.6 Keyboard 1. Open the Keyboard demo in Appcenter. 2. Set and test the key values of the device.

  • Page 23: Network

    6.7 Network 1. Open the Network demo in Appcenter. 2. Test the WIFI/Mobile signal based on the requirements.
  • Page 24 Chapter 7 Device Specifications Physical Parameters Dimensions 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in. Weight 230g / 8.11 oz. (device with battery) Screen 5.7-inch (18:9), IPS LTPS 1440 x 720 Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported Battery Main battery: built-in 5000 mAh...
  • Page 25 Interface USB2.0, Type-C, OTG Storage Card TF card Type Maximum 128GB Expansion Storage Environmental Parameters -20 ℃~+50 ℃ Operating Temperature -40 ℃~+70 ℃ Storage Temperature Humidity 5%RH-95%RH (non-condensing) Dropping Survive Multiple 2.0 m / 6.56 ft. drops to the concrete across the operating temperature range Sealing IP67, IEC compliance...
  • Page 26 WLAN Support IEEE802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, 2.4G/5G dual-band, IPV4, IPV6; Support 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112, 116,120,124,128,132,136,140,149,153,157,161,165), depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP- MSCHAPv2, PEAP-LTS, PEAP-GTC, etc. Blueto V2.1+EDR,3.0+HS and V4.1+HS, BT5.0 GNSS...
  • Page 27 Postal, Dutch Postal (KIX),etc. RFID Developing Environment Chainway SDK Programming Java Language Developing Tool Eclipse/Android Studio FCC Caution. § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 28 user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
