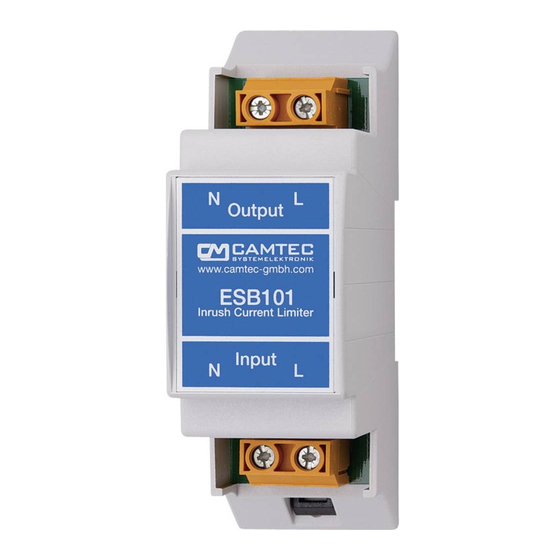

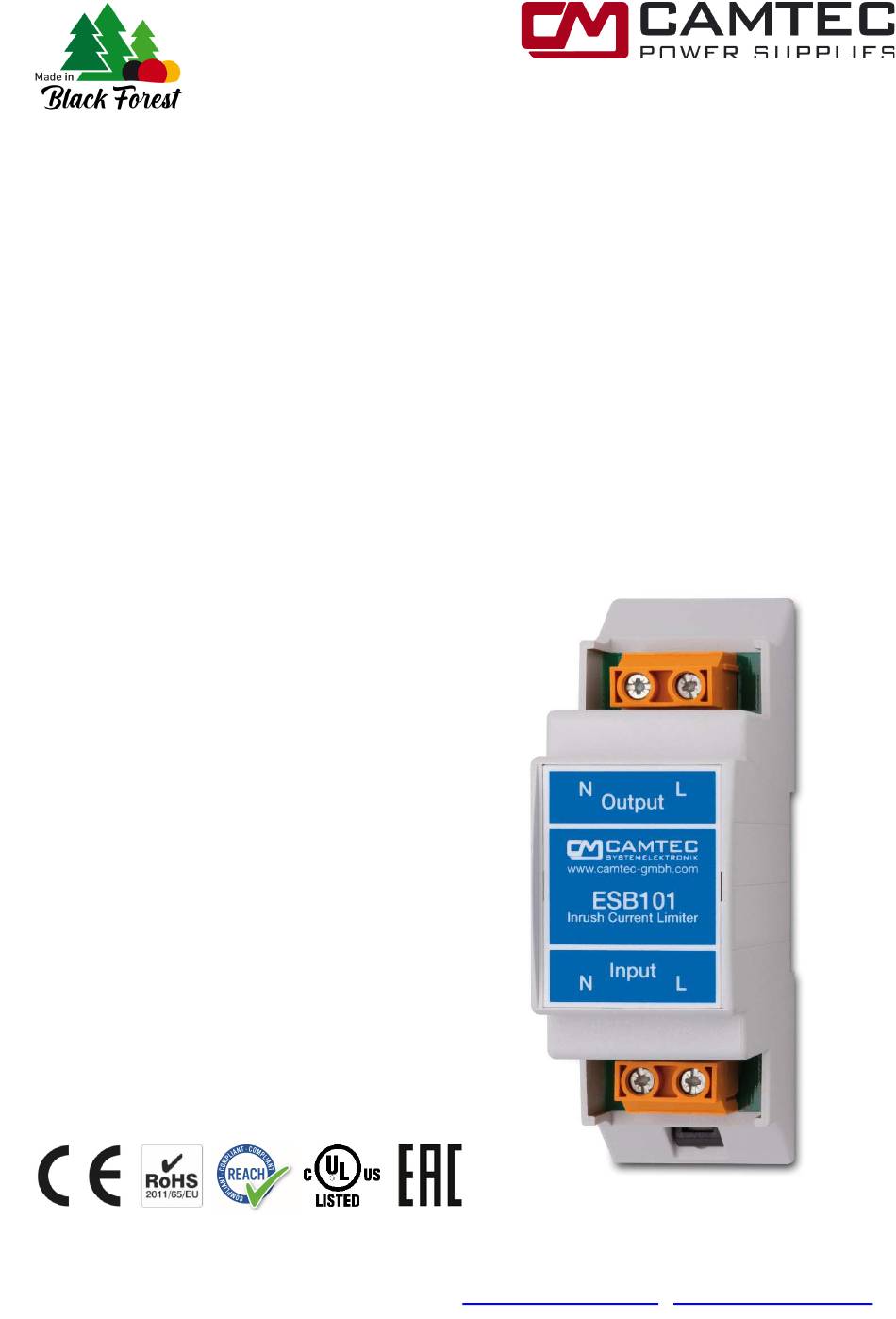

ESB101
Inrush Current Limiter, Inrush Current Protection
For capacitive loads, 115Vac/230Vac 16A,
Short Specification:
Peak- / R.M.S. inrush current limiter
90-132Vac / 184-264Vac, 16A continuous
Power consumption 1,1W @ 230Vac
DIN TS35mm DIN-Rail
Wall mount (universal case)
Spring-type terminals 6mm² / 10AWG
Integrated bypass relay
Capacitive load 1.500uF up to 10.000uF
Integrated thermal protection
IP20 UL94V-0 case DIN43880
for DIN/VDE0603 cutout box
EN62368-1, EN55032 class B
16 ⅓ Hz – 440Hz
No simple NTC-solution! It allows to
reduce cabling sections and to install
fast circuit breakers. 100% protection
from
tripping
breakers or burning relay and line
switch contacts.
Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany
Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
pre-installed
circuit
16 ⅓ Hz – 440Hz,
The ESB is a budget-priced inrush peak
current limiter for high loads in LED-
applications, complex automation systems
and in the machine building. The ESB101
offers effective and interference free operation
with capacitive loads. It is simple to integrate
into existing equipment. The ESB101 is self-
powering and does not require an external
power supply.
www.camtec-gmbh.com
ESB101(R2) MANUAL
- 40°C ... +60°C
P.1/7 (06/2016.02.4)
-
info@camtec-gmbh.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESB101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Camtec ESB101

  • Page 1 Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.1/7 (06/2016.02.4) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 – www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
  • Page 2: Technical Table

    Spring-type terminal solid max. 0,18...6mm² 26…10AWG according with IEC/EN60664-1, IEC/EN61984 Use copper conductors only. Wire stripping length 7mm. Tightening torque per terminal block is 0.5 - 0.6 Nm / 4.5 - 5.3 lbf-in Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.2/7 (06/2016.02.4) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
  • Page 3: General Description

    , it will be detected by the ESB101 (Fig.5). As soon as the AC recovers the inrush will be limited, again (Fig.2 & 3). The ESB101- models provide an internal temperature control. In case of a failure the device shuts down to safely prevent from overheating or fire.
  • Page 4 Deduced by this fact we can say that within a 230V 16A A/C network not the ESB101.16 limiter is the right selection for a MCB B16A, but the ESB101.LED.230VAC.
  • Page 5 DIN 43880 with IEC standardized ventilation slots. Save fix on DIN-Rail TS35mm (7.5/15) DIN/EN60715. It is designed for building cabinets DIN/VDE0603. Easy to wall mount by multifunctional housing; remove the DIN-Rail latch and access the two mounting holes to screw the ESB101 to any old surface. (Fig.8 mechanical drawing) (Fig.9 mounting restriction)
  • Page 6: Mounting Instructions

    Follow the above mounting restrictions to allow maximum lifetime of the product and to prevent from tripping the internal temperature protection fuse. The ESB101 is an active device. The distance between an ESB101 and the next active or temperature sensitive device shall be 17,5mm or larger. The power consumption of the device is constant at continuous operation (2,2W @ 115Vac / 1,1W @ 230Vac).
  • Page 7 - Não usar o aparelho em ambientes húmidos. Não usar o aparelho em ambientes propensos a condensações. - Não tocar enquanto estiver em funcionamento, nem após a desligar. A superficie poderá estar quente e provocar lesões. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.7/7 (06/2016.02.4) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
