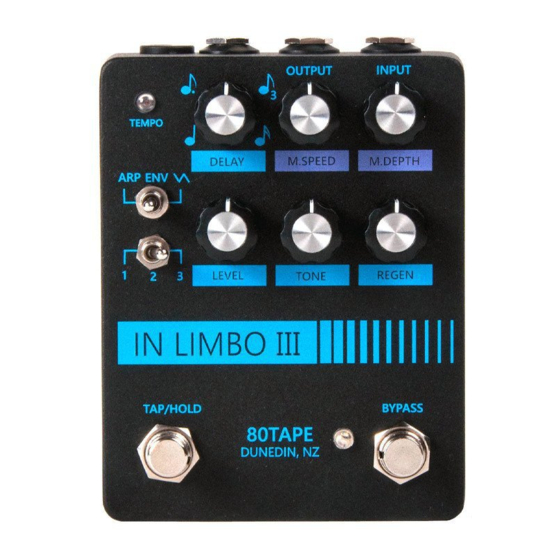

80TAPE IN LIMBO III Manual

IN LIMBO III - MULTI TAP MANUAL

POWER SUPPLY NOTES:

Voltage: 9V DC (negative tip - standard Boss style 2.1mm connector)
Typical current draw: 150mA (recommended 200mA and above rated power supply)
CV Input range: 0 to +5V
EXT tap: Active LOW (Expects to be pulled to GND)
Where possible avoid daisy chaining this unit to avoid interfernce.

Changing subdivision:

Hold the tap tempo switch for one second then turn
the DELAY control a quarter turn in any direction.
Next, move the dial to the desired subdivision as
shown on the right release the tap tempo button
when in place to set. The setting will be saved and
recalled for next use.

Multi Tap Switches:

This unit has two multi tap toggle switches with 1/3, 2/3, 3/4 and 1/2 settings. Both of these switches have a
centre o position to enable a standard delay setup. The full output (1/1) tap can also be switched on or o , to
allow shorter delay times. Multi taps have their own separate regeneration path which can be switched on or
o . Take care when using this at high regeneration settings as the more you add in to the regeneration path

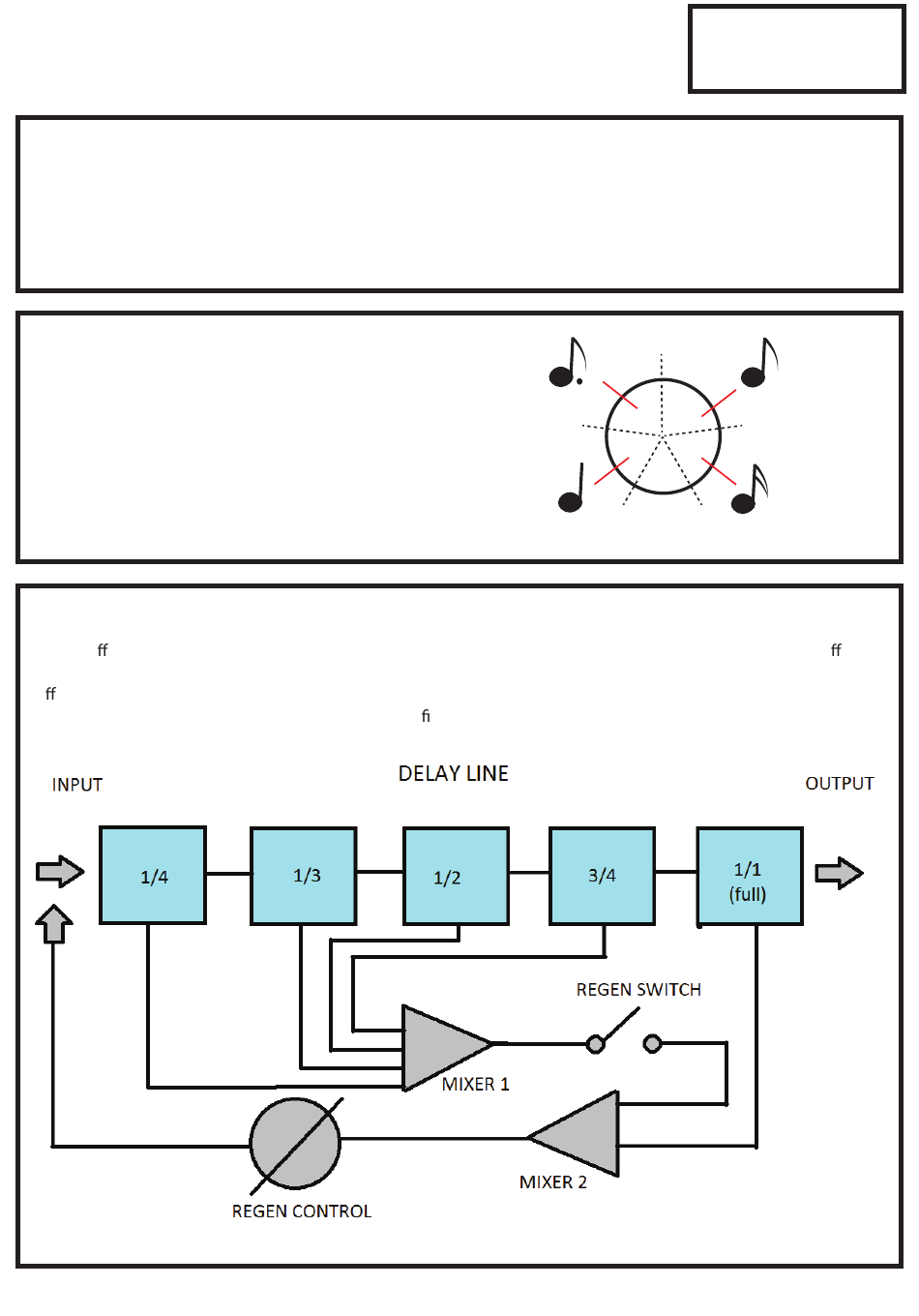

the sooner it will self oscillate. See the below simpli ed signal path.
1
80TAPE FX
Dunedin, New Zealand
email: jonny@80tape.com
3
DELAY
