- Page 1 Follow us USER'S MANUAL Vmoto Soco Scan QR code to www.vmotosoco.com download e-user manual...
- Page 2 Fully understand the information in this manual, include but not limited to the relevant instruction, precautions and warnings. Fully understand the operation and contingency measures of RU smart electric bike. Be fully aware of warning labels of RU smart electric bike.
- Page 3 SAFETY INSTRUCTION To ensure the safety of you and others, please make sure to observe the following matters: Don’t lend your vehicle to someone who can’t operate it in order to prevent any injuries. No minors under 16 years old are allowed riding on the road. Do not ride after you take medications which may affect your riding ability, drink alcohol, or when you are unwell.
- Page 4 SAFETY INSTRUCTION Please make sure that the electric bicycle is save to ride a. Electric bike should not be parked in building foyers, evacuation staircases, walkways, and safety exits. b. Electric bike should not be charged and parked in residential buildings, should be far away from combus- tible when charging, do not exceed the recommended charging time.
- Page 5 Specific cations Quick Start Main technical parameters and performance index RU Main technical parameters Main technical parameters of the vehicle Battery type: lithium battery Capacity: 20Ah L*W*H mm: 1643X725X1044 Front and rear wheel center distance: 1160 mm Nominal voltage: 48V Weigh: 54.5kg...
- Page 6 QUICK START Check accessories items Intelligent remote control Left&right rearview mirror Instruction manual Rearview mirror wrench Charger...
- Page 7 QUICK START Install rear-view mirror...
- Page 8 QUICK START Install battery pack Open seat cushion/ Put in the battery pack. Plug in the main plug. Drop the seat cushion. battery compartment.
- Page 9 Wear helmet. Press the "unlock key" Pack up the main stand Gently turn the handle of the intelligent and ride RU to ride on the road. remote control key, and then press the "pass-key" to enter the "energized state" of...
- Page 10 CONTENTS Parts description Operational guidelines Cycling guidelines Battery instructions The maintenance Common problems...

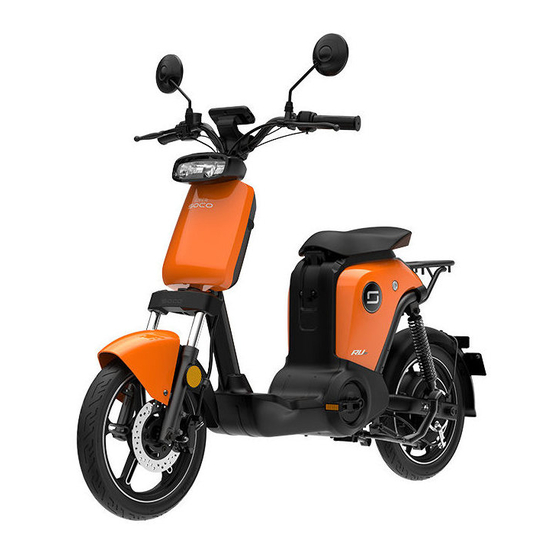

- Page 11 PARTS DESCRIPTION a. Complete vehicle parts schematic diagram SIDE VIEW Rear view mirror The vehicle code Battery compartment headlamps FOC vector controller Lighting and reflector position The motor Nameplate position Disc brake Main stand...
- Page 12 PARTS DESCRIPTION a. Complete vehicle parts schematic diagram TOP VIEW Front brake handle Throttle instrument panel The saddle Rear brake handle Left hand switch set...
- Page 13 PARTS DESCRIPTION b. Instrument diagram Speed display/error code Total VMT/single VMT Displays the current speed, and displays the Display total vehicle mileage/single trip mileage error code when the error prompt is on Percentage of electricity display Quantity indicator bar Display the current battery percentage Display current battery level Headlight status display Charging status display...
- Page 14 OPERATIONAL GUIDELINES Left combination switch Headlight switch One touch to switch on/off. The horn button Press and hold the horn to sound, release and stop.
- Page 15 OPERATIONAL GUIDELINES b. Intelligent remote control operation Open battery compartment RU adopts the second generation of intelligent remote control of Insert and turn the key to the right to SOCO, which can easily lock or unlock the vehicle by pressing the open the battery key within the effective distance.
- Page 16 CYCLING GUIDE a. Check items before riding Before riding RU smart electric vehicle, please make sure to check the following items, which will guarantee your safety on the road. Whether the handlebar is stable and whether it's rotating freely. Whether the switches of the left and right on the handlebar work properly.
- Page 17 Lift up the main stand Gently turn the handle to and ride RU. ride on the road. The vehicle must be in a completely stationary state before starting. If the vehicle is on the road, please push the vehicle to a safe area carefully. Do...
- Page 18 CYCLING GUIDE Riding notes When starting the bike, accelerate slowly to avoid increase of energy consumption caused by instanta- neous rapid acceleration. In order to ensure safety, the riding speed should be kept as steady as possible to reduce the energy consumption caused by frequent starting, braking, instantaneous acceleration and other operations.
- Page 19 BATTERY INSTRUCTIONS Charging method 1: directly charge the battery: Open the battery Disconnect the Remove the battery Insert the main Indicator light is from the battery plug of the charger compartment battery pack main red when charging compartment into the charging plug.
- Page 20 BATTERY INSTRUCTIONS Charging mode 2: charge the battery on-board Open the battery compartment. Disconnect the battery pack main plug. Insert the main plug of the charger into the charging port of the battery pack, and then insert the ac plug of the charger into the socket. Indicator light is red when charging normally, and green when full.
- Page 21 Do not throw, drop or press battery pack. Must use the supplied Super Soco charger，do not use any other charger to charge battery pack; Maintain an airflow around the charger at all times during charging. Do not enclose it in a storage compartment or other unventilated space when charging.
- Page 22 BATTERY INSTRUCTIONS Storage，maintenance and transport Do not park the bike in the hall of building，escape stair，aisle and safety exit. If you don’t use the bike for a long-time(such as winter，summer or other special condition），you should take the battery pack out and store it separately. Otherwise，battery capacity will be run out and the battery will be damaged.
- Page 23 Regular inspection and maintenance The new bike must do the first inspection and maintenance in SUPER SOCO service when it reaches 1000 km or after 2 months（whichever comes first）.The bike is recommend to do a regular inspection and maintenance at every 3000 km or 6 months（whichever comes first）.
- Page 24 Common problems and troubleshooting methods a. Common problems and troubleshooting methods Error Causes Solutions 1.battery is poorly connected. No power，“start” 1.connect the power cable appropriately. 2.safety fuse burned out. not on 2.please replace the safety fuse. Power on，turning 1.low battery 1.charge the battery handlebar，motor 2.brake handle does not reach the right position.
- Page 25 COMMON PROBLEMS AND TROUBLESHOOTING METHODS Error Causes Solutions Error 99 on speedometer Controller communication error Please contact with after-sales service or dealer Error 98 on speedometer Controller stops working（possibly over Please park for a while then start again current，blocking，under voltage，over temperature）...
- Page 26 COMMON PROBLEMS AND TROUBLESHOOTING METHODS Error Causes Solutions Error 90 on speedometer Battery discharge over current In case it shows error 90 all the time，stop riding， wait for a moment Error 89 on speedometer Charging low temperature Take out the battery and charge in warm indoor place Error 88 on speedometer Discharging low temperature Store the battery or e-bike in warm indoor place ，...
- Page 27 COMMON PROBLEMS AND TROUBLESHOOTING METHODS b. Battery troubleshooting Battery Status Issues Causes Solution Before using Battery no power“start”not Low battery Charge battery In use When riding with low Low battery，low voltage Charge battery power，power off occurs protection，normal phenomenon when battery capacity drops below 10% In use Error 88 on instrument...
- Page 28 COMMON PROBLEMS AND TROUBLESHOOTING METHODS Battery Status Issues Causes Solution In use Mileage different from Official announced mileage is the Any questions，please contact with official announced one in special surrounding and after-sales service status，related to road or dealer. conditions，whether， temperature，wind drag and load. Storage Start e-bike，“power”not on Store battery too long，low...
- Page 29 Vmoto Soco wish you a happy voyage...
