INSTALLATION GUIDE
T-WAY
IT - Istruzioni originali

Advertisement

loading
Need help?

Need help?

Do you have a question about the T-WAY and is the answer not in the manual?

Questions and answers

Summary of Contents for tau T-WAY

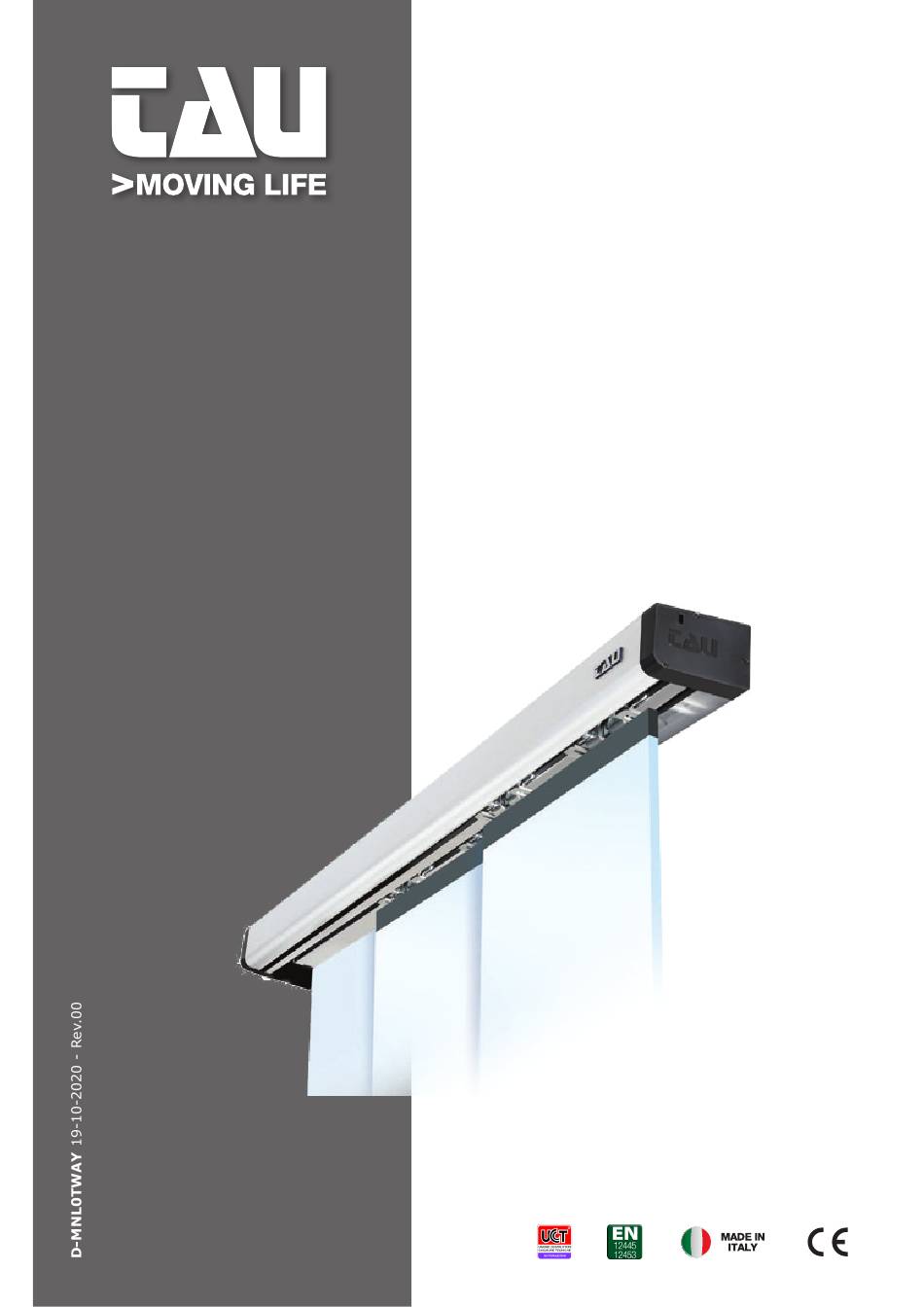

  • Page 1 INSTALLATION GUIDE T-WAY IT - Istruzioni originali...

  • Page 2: Maintenance Program

    The manufacturer reserves the right to modify or improve products without prior notice. Any inaccuracies or errors found in this handbook will be corrected in the next edition. When opening the packing please check that the product is intact. Please recycle materials in compliance with current regulations. This product may only be installed by a qualified fitter.
  • Page 3 INDEX TECHNICAL FEATURES pag. 4 TYPICAL SYSTEM pag. 4 AUTOMATION SECTION AND REFERENCES pag. 4 LEAF DIMENSIONS AND COMPONENT LAYOUT pag. 6 INSTALLATION pag. 17 LIMIT STOP POSITIONING ON T-WAY2S / T-WAY2D / T-WAY4 pag. 19 ADJUSTMENT OF THE BELT TENSION AND EASY OPENING OF THE GUARD pag.
  • Page 4 1. TECHNICAL FEATURES TECHNICAL DATA T-WAY 120 Watt Power rating 1+1 wing 130 daN (Kg) - 2+2 wings65 daN (Kg) per wing Max. door weight 70 cm/sec (for wing) Opening speed 60 cm/sec (for wing) Closing speed 230 Vac ± 10% 50-60 Hz...
  • Page 5 157.5 Guard opening empty area 157.5 1. Pair of side panels 7. Complete carriage 13. Telescopic crosspiece 2. Electronic control unit 8. Door side fixing 14. Main crosspiece 3. Motor unit with encoder 9. Slow leaf belt support 15. Sliding rail 4.
  • Page 6 4. LEAF DIMENSIONS AND COMPONENT LAYOUT For the door to work correctly, we recommend you comply with the measurements shown in the relative tables. 4.1 TWO-LEAF OPENING TO THE LEFT WITH ELECTRIC LOCK. LEVER RELEASE WITH BATTERY LEGEND: LT = BEAM CUT LENGTH PL = FREE PASSAGE...
  • Page 7 4.3 TWO-LEAF OPENING TO THE LEFT WITH ELECTRIC LOCK. LEVER RELEASE WITHOUT BATTERY LEGEND: LT = BEAM CUT LENGTH PL = FREE PASSAGE LA = LEAF WIDTH G = FINAL STOP LEAVES OVERLAPPING Motor axle position 120 mm Lunghezza taglio trave Control central position 295 mm Free passage...
  • Page 8 FORMULAS TO CALCULATE BEAM-LEAVES LENGTH Calculation of LT when PL is known Calculation of PL when LT is known LT= (3 PL - G) PL= 2 (LT - S) + G LA= (PL - G) Below are some examples of telescopic sliding doors calculated by assuming a leaf overlap S = 23mm and a final stop G = 0mm each one with its relative installable accessories.
  • Page 10 4.5 TWO-LEAF OPENING TO THE RIGHT WITH ELECTRIC LOCK. LEVER RELEASE WITH BATTERY LEGEND: LT = BEAM CUT LENGTH PL = FREE PASSAGE LA = LEAF WIDTH G = FINAL STOP LEAVES OVERLAPPING Motor axle position 638 mm Beam cut length Control central position 70 mm Free passage...
  • Page 11 4.7 TWO-LEAF OPENING TO THE RIGHT W/O ELECTRIC LOCK. WITHOUT BATTERY LEGEND: LT = BEAM CUT LENGTH PL = FREE PASSAGE LA = LEAF WIDTH G = FINAL STOP LEAVES OVERLAPPING Motor axle position 178 mm Beam cut length Control central position 228 mm Free passage Single pulley position...
  • Page 13 4.8 4-LEAVES OPENING WITHOUT ELECTRIC LOCK. WITHOUT BATTERY LEGEND: LT = BEAM CUT LENGTH PL = FREE PASSAGE LA = LEAF WIDTH G = FINAL STOP LEAVES OVERLAPPING Motor axle position 85 mm Beam cut length Control central position 260 mm Free passage Single pulley position 683 mm...
  • Page 14 4.10 CARRIAGE CONNECTION BAR FOR T-WAY WITH 4 MOBILE LEAVES The T-WAY operating unit with 4 mobile leaves provides for the use of a connection bar fixed between the left support carriage of the slow moving leaf on the right side of the beam and a special return carriage connected to the traction belt.

  • Page 16: Installation

    5. INSTALLATION 5.1 REAR CROSSPIECE ANCHORING The crosspiece must be fixed to a flat surface, solid enough for the weight of the leaves that will be used. If the wall or support you are using does not meet these characteristics, a suitable iron tube must be adopted as the crosspiece is not self-supporting. We recommend you use a spirit level to avoid an assembly not level with the crosspiece.
  • Page 17 5) Once the desired height of the leaf has been adjusted using the adjusting screw (B) tighten the two screws (A). For the automation to operate correctly, it is important that the mobile leaf is perpendicular to the crosspiece. For a good functioning of the automation it is important that the mobile leaf is perpendicular to the crosspiece. PROFILO REGGIANTA 10 min.
  • Page 18 REGOLARE LA POSIZIONE DEL CARRELLO REGOLARE LA POSIZIONE DEL FINECORSA DI CHIUSURA ALLENTANDO LE VITI E ELETTROBLOCCO. SPOSTARLO NELLA POSIZIONE DESIDERATA E SERRARE LE VITI When adjusting the brake pad during opening, keep in mind that during normal operation, the moving leaf stops 5 mm before impacting the pad (excluding the first manoeuvre after a power failure).
  • Page 19 8) Install the gearmotor, control unit, pulley transmissions, belts and accessories on the front beam according to the configuration of the t-way door, see assembly diagrams (paragraph 4) (fig. 11-H) - Fit the tightener and the two-belt pulley transmission by inserting them in the track and tightening the screws (fig. 11-H.1) - Fit the tightener and the slow leaf belt pulley transmission by inserting them in the track and tightening the screws (fig.
  • Page 20 15.5 15.5 fig. 11-A fig. 11-B fig. 11-C 15.5 fig. 11-D 15.5 15.5 End holes Intermediate holes fig. 11-E fig. 11-F...
  • Page 21 Version without electric lock Version with electric lock fig. 11-G fig. 11-H.1 fig. 11-H.2 fig. 11-H fig. 11-H.3 fig. 11-H.4 fig. 11-H.5 fig. 11-H.6 fig. 11-H...
  • Page 22 fig. 11-i.2 fig. 11-i.1 fig. 11-i fig. 11-J.1 Belt joint fig. 11-J.2 fig. 11-J.3 fig. 11-J fig. 11-K 9. ASSEMBLY OF A FOUR-LEAF AUTOMATIC TELESCOPIC DOOR KIT (T-WAY4) FIG. 12 The assembly procedure of a T-WAY4 door is the same as that of a T-WAY2S. The same procedure is followed, with the variations made to the leaves with opening to the right 1) After preparing the rear beam and inserting the intermediate and lateral fastenings, insert 5 carriages, four of which are for the rear leaves and one is an auxiliary pulley transmission carriage for the movement of the door opening to the right.
  • Page 23 4) Fit the front beam tightening all the screws. Then fit the opening limit stop extension and the closing limit stop on the front carriages and then fit them onto the front beam (fig. 12-D) 5) Fasten the gearmotor, control unit, two-belt pulley transmission and single pulley transmission with their relative tighteners and the opening limit stops to the front beam according to the door configuration.
  • Page 24 fig. 12-D fig. 12-E fig. 12-F.1 fig. 12-F.2 fig. 12-F fig. 12-G.1 fig. 12-G.2 fig. 12-G.3 fig. 12-G...
  • Page 25 GUARANTEE: GENERAL CONDITIONS TAU guarantees this product for a period of 24 months from the date of purchase (as proved by the sales document, receipt or invoice). This guarantee covers the repair or replacement at TAU’s expense (ex-works TAU: packing and transport at the customer’s expense) of parts that TAU recognises as being faulty as regards workmanship or materials.
  • Page 28 Via Enrico Fermi, 43 - 36066 Sandrigo (VI) - Italy Tel +39 0444 750190 - Fax +39 0444 750376 info@tauitalia.com - www.tauitalia.com...
