Summary of Contents for Allied Data Technologies Tornado PCI V.90

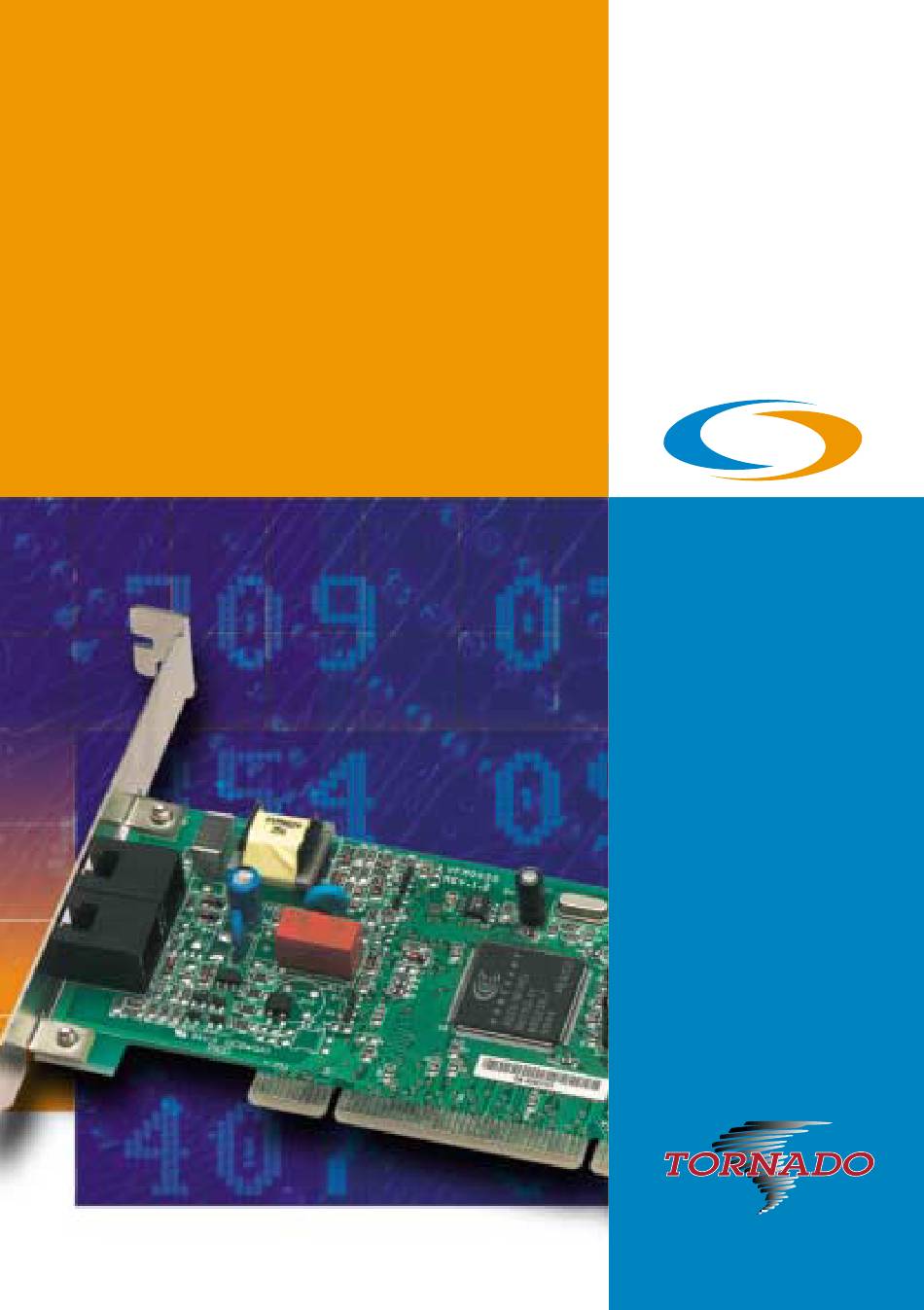

- Page 1 Installation Manual Tornado PCI V.90 Fax/Modem Allied Data T E C H N O L O G I E S...
- Page 2 ALLIED DATA TECHNOLOGIES. The sale and use of software is subject to the ALLIED DATA TECHNOLOGIES General Terms of Delivery and Payment as well as its License Terms.
-
Page 3: Declaration Of Conformity
The product herewith complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC. The product was tested in a typical configuration. Spijkenisse, 14 March 2001 Quality Management European Contact: ALLIED DATA TECHNOLOGIES B.V. Allied Data Technologies... - Page 4 Installing the PCI card ............5 Installing the Tornado PCI V.90 in a Windows 95/98 environment ......8...
- Page 5 Tornado PCI V.90 This installation manual describes how the Tornado PCI V.90 must be hooked up to your PC and how the drivers must be installed. It contains extensive information and a description of all the commands of the Tornado PCI V.90.
- Page 6 Tornado PCI V.90 1. First of all you have to check what kind of modem you have. This could be a modem type "controllerless" or "softmodem" . On the backside of the modem should be a white label. This label contains the product code.
- Page 7 Tornado PCI V.90 6. Hold the internal fax/modem above the slot you have selected, check whether the connector is pointed down, and whether the cover attachment is in the correct position. Carefully slide the fax/modem into the slot by applying pressure to the ends of the fax/modem.
- Page 8 Screen prints are from Windows 98 and can look a bit different in Windows 95. First go through the following points before installing the Tornado PCI V.90 and continuing with the installation. 1. Turn on the computer and wait for Windows to start.
- Page 9 Tornado PCI V.90 The following ‘Add New Hardware Wizard’ window appears. 6. Choose the ‘Specify a location’ option. 7. Click ’Browse’. 8. Scroll to the Tornado folder on the CD. 9. Scroll to the folder from the VFM56.0-PRC or the VFM56.0-PRS.
- Page 10 Tornado PCI V.90 11. Select the drivers for the operating system installed on your computer. 12. Click ‘OK’ The following ‘Add New Hardware Wizard’ window appears. 13. Click ‘Next’ The following ‘Add New Hardware Wizard’ window now appears. 14. Click ‘Next’...
- Page 11 Tornado PCI V.90 15. Click ‘Finish’. The modem is now installed. This equipment has been approved to Council Decision 98/482/EC for pan-European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTN’s provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point.
- Page 12 Allied Data T E C H N O L O G I E S Headoffice Allied Data Technologies bv Europe Netherlands E-mail : support@allieddata.com Website : www.allieddata.com E-mail: support@allieddata.com Asia E-mail : support@allieddata.com Website: Website : www.allieddata.com www.allieddata.com E-mail : USsupport@allieddata.com Website : www.allieddata.com...
