Summary of Contents for Gold Medal 2856 Series

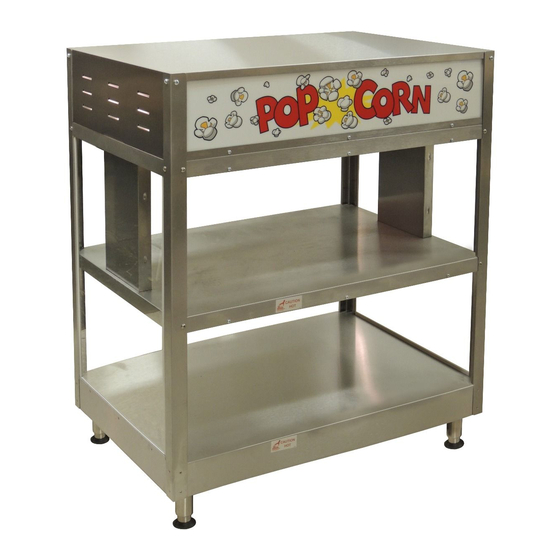

- Page 1 Instruction Manual 36 in. and 42 in. Popcorn Staging Cabinets Model Series 2856 and 2855 42 in. Model 2855-00-000 36 in. Model 2856-00-000 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 44404...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions
36 in. and 42 in. Popcorn Staging Cabinet Model Series 2856 and 2855 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 5: Electrical Requirements
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 6: Controls And Their Functions
36 in. and 42 in. Popcorn Staging Cabinet Model Series 2856 and 2855 OPERATING INSTRUCTIONS Controls and Their Functions LIGHT SWITCH Flip the Light Switch to the ON position to energize the LED dome sign and LED lighting on each shelf. CIRCUIT BREAKER The Circuit Breaker protects the lighting circuit. -
Page 7: Care And Cleaning
DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic. Use only non-ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No. -
Page 8: Troubleshooting
36 in. and 42 in. Popcorn Staging Cabinet Model Series 2856 and 2855 Troubleshooting Issue Possible Cause Solution Unit Does Not Light Up A. Power to Unit A. Make sure the power cord is plugged in. (when Light Switch is turned ON) B. -
Page 9: Maintenance Instructions
36 in. and 42 in. Popcorn Staging Cabinet Model Series 2856 and 2855 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 10: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 11: Replacing Broken Glass
Model Series 2856 and 2855 Replacing Broken Glass If you accidentally break a panel of glass, it can be replaced very easily. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop and always purchase tempered glass. - Page 12 See Lighting and Heating section for lighting parts. Front Counter Model 2856 shown for image reference. Part Number Item Part Description 2856 Series 2855 Series DOME 111316 111370 SCREW #8-32X3/8 PAN HD PH (fastens Dome) 74141 74141 SHELF WELDMENT...
- Page 13 See Dome Interior section for dome interior/blower components. * CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. Front Counter Unit Shown...
- Page 14 36 in. and 42 in. Popcorn Staging Cabinet Model Series 2856 and 2855 Lighting / Heating Bottom View – Parts Breakdown * Light Panel Brace Model 2855 Only (not shown) Clear Light Cover over LED Lights 2 LED Strips on each shelf Alum.
- Page 15 STRAIN RELIEF #SR-9P-2 47026 47026 POWER SUPPLY CORD CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its 47603 47603 service agent, or similarly qualified persons in order to avoid a hazard. BOTTOM COVER (image not shown)
- Page 16 Dome Interior View See Lighting and Heating section for light mounting and LED parts. Model 2856 Shown for image reference. Part Number Item Part Description 2856 Series 2855 Series SIGN CAP 111353 111353 SCREW #8-32X3/8 PAN HD PH 74141 74141...
-
Page 17: Wiring Diagram
36 in. and 42 in. Popcorn Staging Cabinet Model Series 2856 and 2855 Wiring Diagram Model Series 2856 and 2855 gmpopcorn.com Page 17... - Page 18 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
