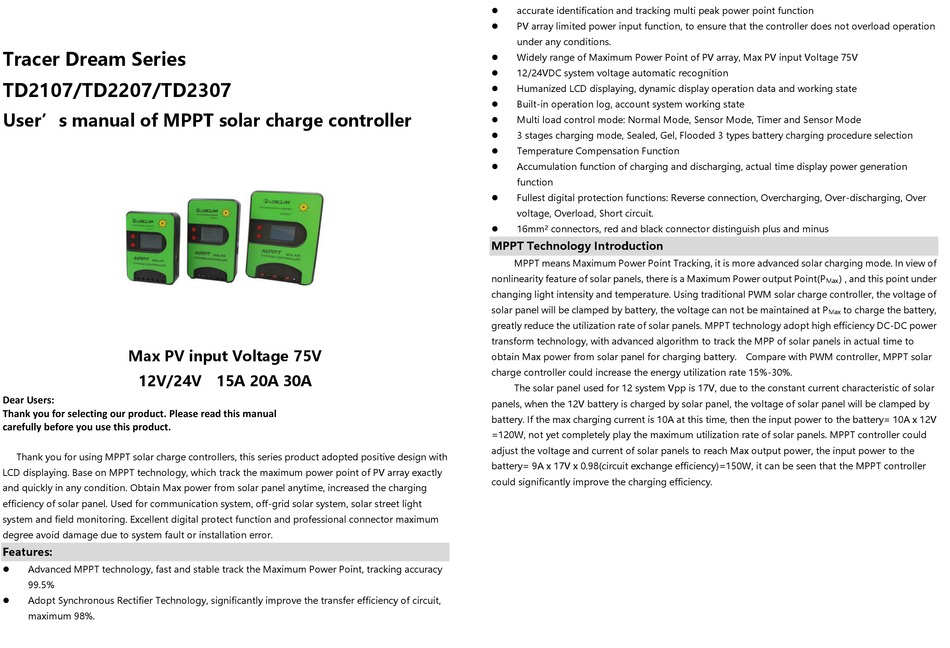

Tracer Dream Series
TD2107/TD2207/TD2307
User's manual of MPPT solar charge controller
Max PV input Voltage 75V
12V/24V 15A 20A 30A
Dear Users:
Thank you for selecting our product. Please read this manual
carefully before you use this product.
Thank you for using MPPT solar charge controllers, this series product adopted positive design with
LCD displaying. Base on MPPT technology, which track the maximum power point of PV array exactly
and quickly in any condition. Obtain Max power from solar panel anytime, increased the charging
efficiency of solar panel. Used for communication system, off-grid solar system, solar street light
system and field monitoring. Excellent digital protect function and professional connector maximum
degree avoid damage due to system fault or installation error.

Features:

Advanced MPPT technology, fast and stable track the Maximum Power Point, tracking accuracy
99.5%
Adopt Synchronous Rectifier Technology, significantly improve the transfer efficiency of circuit,
maximum 98%.
accurate identification and tracking multi peak power point function
PV array limited power input function, to ensure that the controller does not overload operation
under any conditions.
Widely range of Maximum Power Point of PV array, Max PV input Voltage 75V
12/24VDC system voltage automatic recognition
Humanized LCD displaying, dynamic display operation data and working state
Built-in operation log, account system working state
Multi load control mode: Normal Mode, Sensor Mode, Timer and Sensor Mode
3 stages charging mode, Sealed, Gel, Flooded 3 types battery charging procedure selection
Temperature Compensation Function
Accumulation function of charging and discharging, actual time display power generation
function
Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Over
voltage, Overload, Short circuit.
16mm
connectors, red and black connector distinguish plus and minus
2

MPPT Technology Introduction

MPPT means Maximum Power Point Tracking, it is more advanced solar charging mode. In view of
nonlinearity feature of solar panels, there is a Maximum Power output Point(P
changing light intensity and temperature. Using traditional PWM solar charge controller, the voltage of
solar panel will be clamped by battery, the voltage can not be maintained at P
greatly reduce the utilization rate of solar panels. MPPT technology adopt high efficiency DC-DC power
transform technology, with advanced algorithm to track the MPP of solar panels in actual time to
obtain Max power from solar panel for charging battery. Compare with PWM controller, MPPT solar
charge controller could increase the energy utilization rate 15%-30%.
The solar panel used for 12 system Vpp is 17V, due to the constant current characteristic of solar
panels, when the 12V battery is charged by solar panel, the voltage of solar panel will be clamped by
battery. If the max charging current is 10A at this time, then the input power to the battery= 10A x 12V
=120W, not yet completely play the maximum utilization rate of solar panels. MPPT controller could
adjust the voltage and current of solar panels to reach Max output power, the input power to the
battery= 9A x 17V x 0.98(circuit exchange efficiency)=150W, it can be seen that the MPPT controller
could significantly improve the charging efficiency.
) , and this point under
Max
to charge the battery,
Max

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tracer Dream Series and is the answer not in the manual?

Questions and answers

Summary of Contents for squarespace Tracer Dream Series

  • Page 1 PV array limited power input function, to ensure that the controller does not overload operation  under any conditions. Tracer Dream Series Widely range of Maximum Power Point of PV array, Max PV input Voltage 75V  12/24VDC system voltage automatic recognition ...
  • Page 2 charging, so that the controller should be closed to battery as near as possible. ② Recommend system current density of cables less than 3A/mm Unreasonable cable selection will increase the system consumption, even burning. ③ Try to use multi strand copper wire in order to connecting with the terminal firmly. Loose power connection and/or corroded wires may result in resistive connections that melt wire insulation, burn surrounding materials or even cause fire.
  • Page 3 cable of battery to the controller in advance, then connected to battery poles secondly. If your connection is correct, the LCD displaying will show battery voltage and other technical data. If LCD no displaying, please check the fault. The length of cable between battery and controller as shorter as possible. Suggest to 30CM -100CM. If short circuit happened on the terminals of controller, it will be result in fire or explode.
  • Page 4 Battery Type Load on Load off Load Sensor Timer mode output Load Load Sensor mode output LOAD Data about load Load working mode Operation and Indication of controller Generated Power:This interface show the solar panels current output power. Charging Ampere hour number: account current system generation ampere hour, long press “ →” button could zero Main Interface ...
  • Page 5 Attention: About the control parameter of battery, we had fully consider user’s working condition, if customers discharging, temperature symbol and warning flash, when the temperature get down to 65℃, the controller auto want to adjust the parameter, please refer to battery supplier suggestion, or unreasonable adjust will destroy feedback.
  • Page 6 Technical Data Mode TD2107 TD2207 TD2307 System Voltage 12V/24V PV Max Input Voltage 12V 200W;24V 12V260W;24V 12V 390W;24V PV Max Input Power 400W 520W 780W Self-consumption ≤23mA Max Charging current Max Discharging current 11.0V ADJ 9V….12V;×2/24V 12.6V ADJ 11V….13.5V;×2/24V Float Voltage 13.8V ADJ 13V….15V;×2/24V;...
