Summary of Contents for Dynamics SPSF

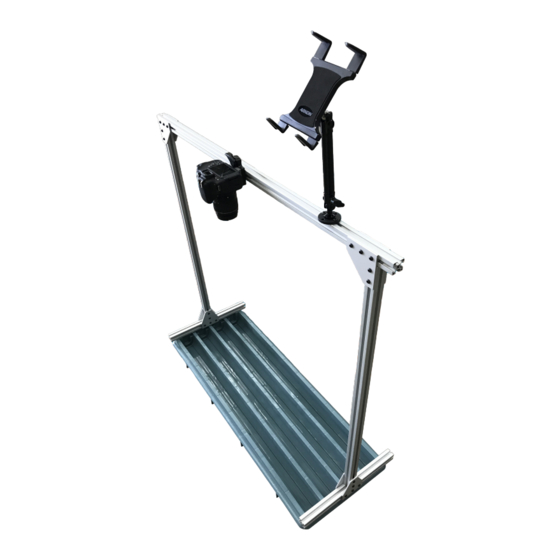

- Page 1 USER’S MANUAL Simple Portable Camera Frame...
- Page 2 Table of Contents PRODUCT SPECIFICATIONS ASSEMBLY AND OPERATING INFORMATION CONTACT INFORMATION...
- Page 3 Product Specifications Dimensions: ~1150L x 400W x 1100H mm Adjustable Profiles...
- Page 4 Assembly and Operating Information PREPARATION Components Profile x 5 M6 bolts/nuts, Joining plates M6 bolts/nuts, Tablet mount M8 bolts/nuts, Camera mount Tools Allen key: M6 x 1 M8 x 1...
- Page 5 ASSEMBLY Assemble base frames and columns. Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7...
- Page 6 ASSEMBLY Assemble top beam and camera mount. M8 nut inserted for camera mount Assemble tablet mount to a base frame. M6 bolts/nuts, Tablet mount OPERATION • Put the simple portable camera frame on a tray. • Mount the camera to the camera mount. •...
- Page 7 Contact Information Contact Nos. 1800 105 584 Websites www.dynamicsgex.com.au 07 5482 6649 www.coretrays.net Warehouses Perth: 50 Mulgul Road, MALAGA WA 6090 | Australia Kalgoorlie: 15 Cunningham Drive, West Kalgoorlie WA 6430 Gympie: 37 Langton Road, GYMPIE QLD 4570 | Australia Mt Isa: 34 Barkly Highway, MT ISA QLD 4825 | Australia Other Warehouses: Adelaide, Melbourne &...
