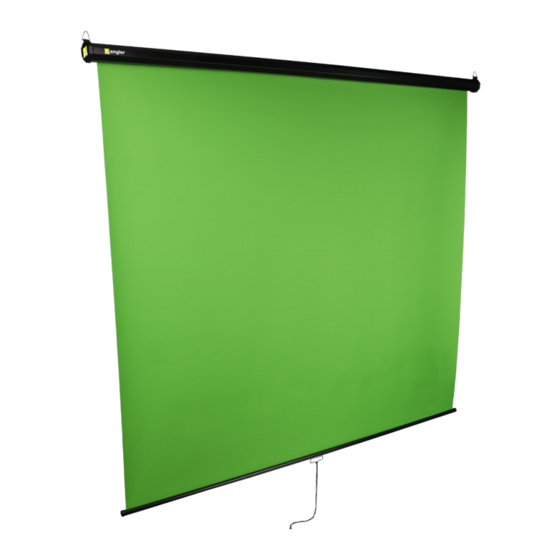

Retractable green screen
Hide thumbs

Advertisement

Table of Contents

Retractable Green Screen
WM-CG-710
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM-CG-710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Angler WM-CG-710

  • Page 1 Retractable Green Screen WM-CG-710 INSTRUCTIONS...
  • Page 2 Thank you for choosing Angler. Angler’s retractable 7 × 10-foot green screen is ideal for studios and meeting and conference rooms where space is at a premium, and a green screen needs to be deployed in seconds. The screen comes in a sturdy metal case that’s equipped with keyholes for wall mounting, and hooks for suspending it from a ceiling.
  • Page 3 Overview Screen Screen handle Lanyard Ceiling-mount hooks Wall-mount keyholes...
  • Page 4 Wall Mounting Instructions Measure the distance between the keyholes at the back of the screen’s end caps. Use that measurement to mark the locations of the mounting holes on the wall. Use a level to make sure it's even. Note: Drywall is not strong enough to support the backdrop for repeated use. For a more secure wall mount, sink the screws into wall studs or fortify your wall by adding a mounting plate, wood blocking, or bracing.
  • Page 5 Ceiling Mounting Instructions Use chains to suspend the screen from a ceiling. Measure the distance between the hooks on the screen’s end caps. Use that measurement to determine how far apart the chains should be. Use eye hooks or similar fasteners to attach the chains to the ceiling.
  • Page 6 Operation Pull the screen down with the lanyard or the handle. When the screen is at the desired length, slightly raise the screen to allow the auto-lock to engage. Retract the screen by using the handle or lanyard to pull it down approximately 1 to 2 inches to disengage the auto-lock, and slowly guide the screen back into the case.
  • Page 7 Specifications Type Manual 6.9 × 9.9 ft. (211.1 × 302.3 cm) Screen Dimensions Chroma green Screen Color Polyester Material Case Dimensions 3.7 × 86.75 × 3.2 in. (9.5 × 220.3 × 8.2 cm) (H × W × D) Weight 18.7 lb. (8.5 kg)
  • Page 8 One-Year Limited Warranty This Angler product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
