- Page 1 UTi260B Professional Thermal Imager User Manual P/N:110401109510X...
-
Page 2: Table Of Contents
The 9.6 Measurements --------------------------------------------------------------------------------- 14 dealer shall not be entitled to give any other warranty on behalf of Uni-Trend. If you need warranty service within the warranty period, please contact your seller directly. -
Page 3: Specifications
UTi260B User Manual UTi260B User Manual 1. Specifications 0% (pure visual light image), 25%, 50%, 75%, Sensor UFPA Image blending ratio and 100% (pure infrared image) Temperature range High-gain: -15°C~150°C; low gain: 150°C~550°C PC software Measurement resolution 0.1°C Real-time image Yes (real-time image projection through PC software) Accuracy ±2°C/±2% (whichever is greater) -
Page 4: Structure

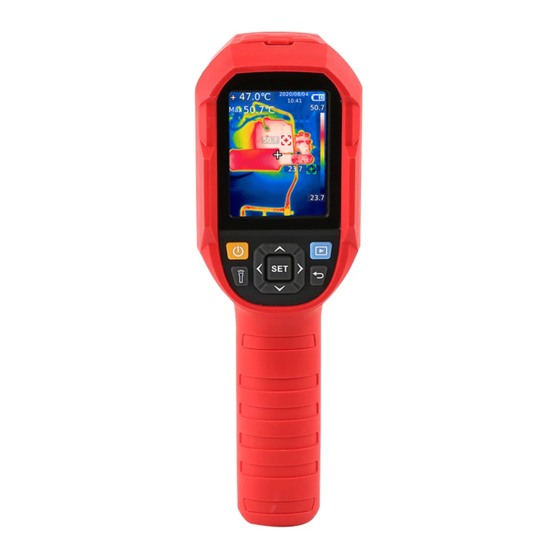

UTi260B User Manual UTi260B User Manual 2. Structure 3. Display Display size: 2.8” Display resolution: 320 (vertical) x 240 (horizontal) pixels Description Description Item Item Upper casing Power button USB (Type-C) interface Flashlight button SD card slot Left button Lower casing Down button Description Description... -
Page 5: Power On/Off
UTi260B User Manual UTi260B User Manual 4. Power On/Off 6. Palette Press and hold the power button for 3s to turn on/off the product. For long-term idle or measuring environment change, please turn on the product and leave it for 20 minutes before measuring. -
Page 6: Point Temperature
UTi260B User Manual UTi260B User Manual 8. Image Mode 7. Point Temperature 1) Press the SET button to open the main menu. 2) Press the left/right button to select the option. 3) Press the SET button to enter the Point Temperature menu. 4) Press the up/down button to select the desired point. -
Page 7: Settings
UTi260B User Manual UTi260B User Manual 9. Settings 9.2 Date and Time To set date and time: 1) Press the up/down button to select the Date and Time option in the settings menu. To enter Settings menu: 2) Press the SET button to enter the Date and Time submenu. 1) Press the SET button to open the main menu. -
Page 8: Hi/Lo Alert
UTi260B User Manual UTi260B User Manual 9.6 Measurements 9.4 HI/LO Alert To set high/low temperature alert: 1) Press the up/down button to select the HI/LO Alert option in the Settings menu. To set measurement parameters: 2) Press the SET button to enter the HI/LO Alert submenu. 1) Press the up/down button to select the Measurements option in the Settings menu. -
Page 9: Auto Power Off
UTi260B User Manual UTi260B User Manual 9.8 Auto Power Off 9.10 System Settings To enter System Settings submenu: To set auto power off: 1) Press the up/down button to select the System Settings option in the Settings menu. 1) Press the up/down button to select the Auto Power Off option in the Settings menu. 2) Press the SET button to enter the System Settings submenu. -
Page 10: Temperature Compensation And Calibration
UTi260B User Manual UTi260B User Manual 9.10.2 Factory Reset 9.10.4 Auto Save To set auto save: 1) Press the up/down button to select the Auto Save option in the Settings menu. 2) Press the SET button to enter the Auto Save submenu. To restore factory settings: 3) Press the up/down button to select Yes or No. -
Page 11: Image Capture
UTi260B User Manual UTi260B User Manual 12. Image Capture 15. SD Card This device supports Micro SD card (TF card) to store images. To avoid affecting the operating speed of the device, please copy the backup data regularly and clean up the SD card in time. -
Page 12: Appendix
Rust 0.09 Copper plate Gypsum 0.06 0.75 Black aluminum Paint 0.95 Human skin 0.98 Rubber 0.95 Asphalt 0.96 Soil 0.93 0.93 Note: This manual can be downloaded from the official website of Uni-Trend (refer to UNI-T Documents Download Operation Guide).
