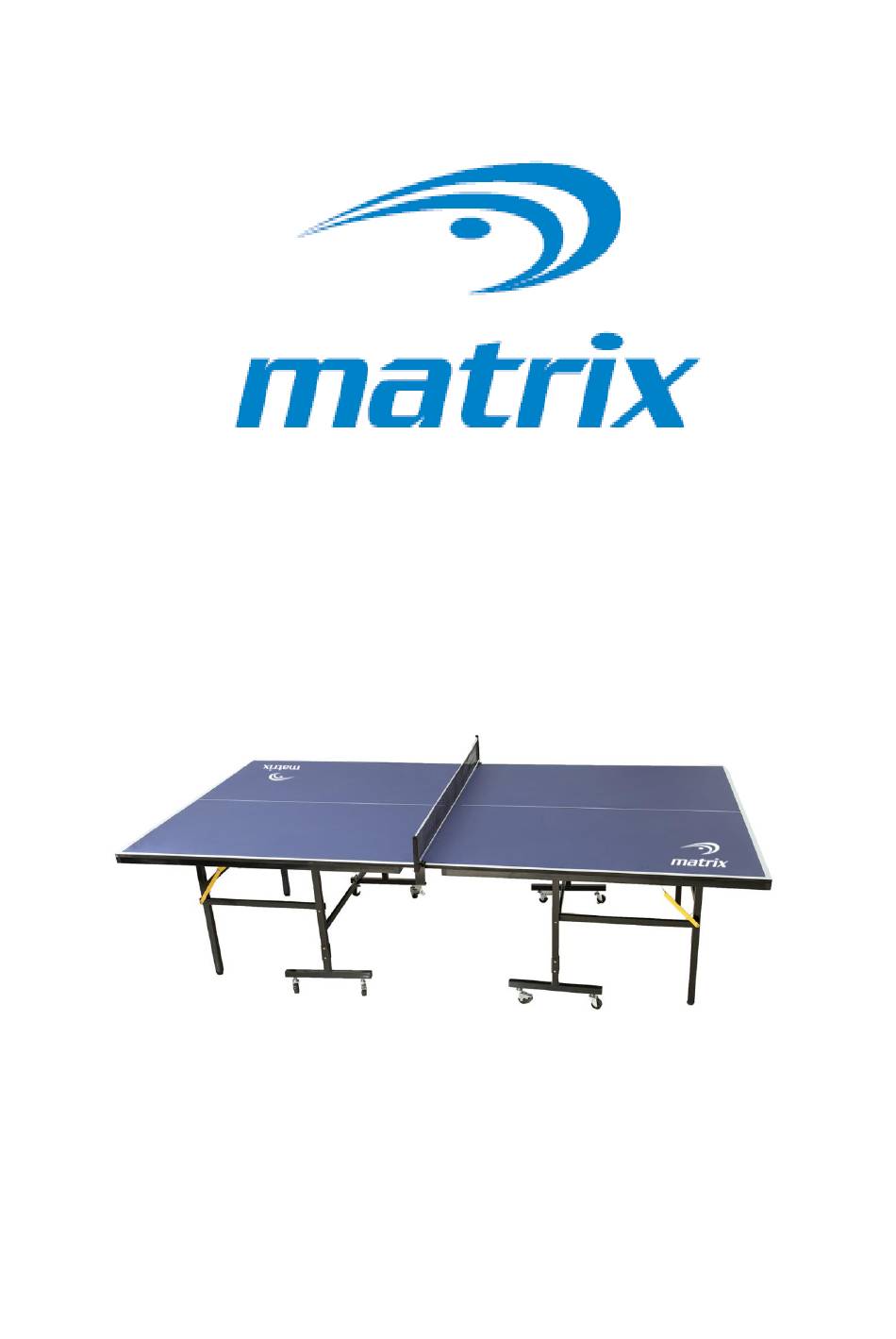

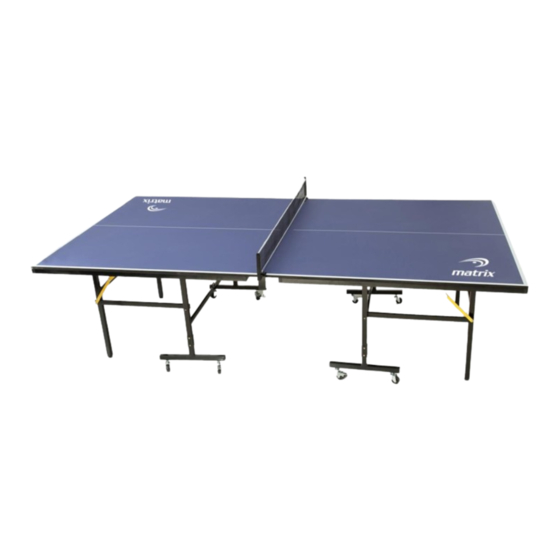

- Page 1 Matrix 4000 Table Tennis Table Manual Instruction Model No. 184-0693...
- Page 2 For any warranty, assembly inquiries, please call: 1- 855-803-9314 Part List 1. Table Tops 2. Rack&Net Qty: 2 Qty: 1 3. Iron Plates 4. Wheel Qty: 8 Qty: 4 5. Wheel with brake 6. T-leg...
- Page 3 Qty:4 Qty: 4 7. Screw 8. 8*10mm Wrench Qty:8 Qty:2 Part#, Description, Picture, Quantity Assembly Instructions 1. Attach the wheels to the nuts welded on the T-leg bottom, rotate in to secure.
- Page 4 2. Carefully lay both table tops flat and face down on a soft surface. Unlock and unfold pre-assembled table top, using two iron plates to fix ‘T’ leg [this should be consistent with parts list] into designated position and ensure marking tape lines up on each side, see figure 1.
- Page 5 Preparation for use 1. Open the carton and check to ensure all accessories and fittings are in the package. 2. Install ‘T’ leg according to figure 1 above. 3. Tighten all screws and turn table up right way ready for use.。 Care and Maintenance for use of your Table 1.
- Page 6 5. Do not place hot goods on table top. 6. Do not place heavy goods on table to avoid distortion. 7. Do not use table for any other exercise other than table tennis. 8. Do not move table around quickly on rugged ground. 9.
- Page 7 FOLD LOCK UNLOCK Straighten hinge when using table and collapse hinge to fold table. Lock wheel tightly when using table and unlock for moving and storing. Height Adjusting Method The wheel height can be adjusted to a maximum of 15mm. The foot height can also be adjusted to a maximum of 15mm.
