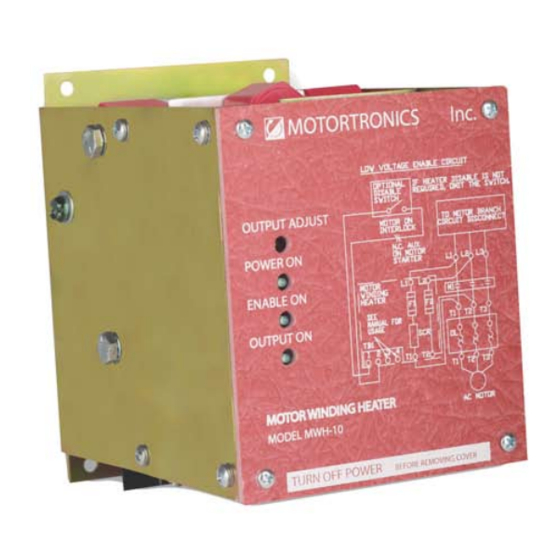

- Page 1 MOTORTRONICS Solid State AC Motor Control MWH Series Solid State Motor Winding Heater 10 to 80 Amps INSTALLATION & START-UP MANUAL REV 4 6091101MN Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
-
Page 2: Table Of Contents
Table of Contents Chapter 1: General Information ....1 1.1 Introduction 1.2 Features 1.3 Specifications 1.4 Recieving and Unpacking 1.5 Dimensions Chapter 2: Installation ......... 4 2.1 Wiring Chapter 3: Operation ........7 Chapter 4: Diagrams ........8 4.1 MWH 10 Amp Model 4.2 MWH 25 Amp Model 4.3 MWH 50 Amp Model 4.4 MWH 80 Amp Model... -
Page 3: Chapter 1: General Information
Features Fully Automatic Operation The Motortronics MWH Series is designed for fully automatic operation. It turns on approximately one minute after power is applied to the system. When the motor is started the MWH is instantly turned off. -
Page 4: Specifications
OUTPUT ON indicator shows that the MWH is sup- plying power to the motor windings. Designed for Safety The MWH Series is supplied in a compact open chassis design. Optional NEMA 1 enclosures are also available. The front cover of the unit is fiber- glass insulation material which shields against acci- dental contact with electrically live parts. -
Page 5: Recieving And Unpacking
MWH Series 10 - 80 Amps 1.4 Receiving and Unpacking Unpacking - Carefully unpack the unit from the ship- ping carton and inspect it for shipping damages. Im- mediately report any damages to the carrier. Mounting - Select mounting location and make sure ambient temperature does not exceed operating range limits given in specifications. -
Page 6: Chapter 2: Installation
MWH Series 10 - 80 Amps 2.0 - Installation Wiring Connection diagrams illustrate typical wiring connec- tions. Use 75° C minimum wires. Note: All wiring must comply with local codes, regulations and ordinances. WARNING! Do not service equipment with voltage applied. - Page 7 MWH Series 10 - 80 Amps 4. Connect L1 and L2 on the MWH to L1 and L2 on the magnetic contactor us ing the wire size recommended for your unit. (See Connection Diagram on right). 5. Connect T1 and T2 to the load side of the magnetic contactor before the over load relay heater elements.
- Page 8 MWH Series 10 - 80 Amps 10. Included with each unit are two self-adhesive warn- ing labels. Attach one warning label in a conspicu- ous place on the motor junction box and the other on the outside of the starter enclosure.
-
Page 9: Chapter 3: Operation
MWH Series 10 - 80 Amps 3.0 - Operation 1. Apply line voltage to the system. The “Power On” LED on the MWH should light. If the “Power On” LED does not light, it is an indication of a blown fuse or improper connections. -
Page 10: Chapter 4: Diagrams
MWH Series 10 - 80 Amps 4.0 - Diagrams 4.1 MWH 10A Model Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 11: Mwh 25 Amp Model
MWH Series 10 - 80 Amps 4.2 MWH 25A Model Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 12: Mwh 50 Amp Model
MWH Series 10 - 80 Amps 4.3 MWH 50A Model Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 13: Mwh 80 Amp Model
MWH Series 10 - 80 Amps 4.4 MWH 80A Model Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... - Page 14 Because of the number of different applica- tions, Motortronics can not be responsible or liable for actual use based on the examples or diagrams. Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
