Summary of Contents for Value VRR24L

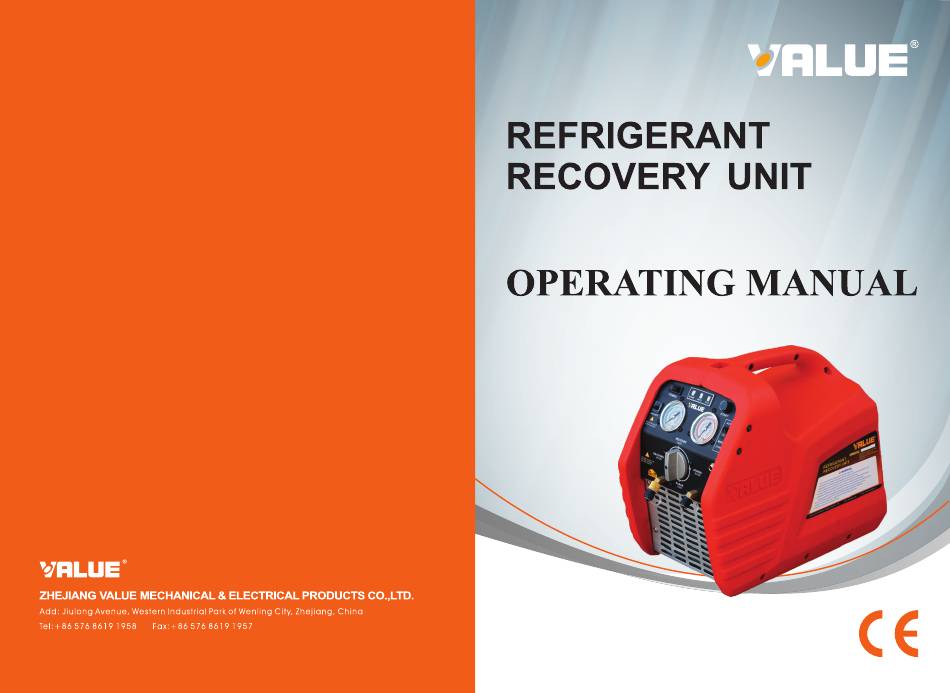

- Page 1 VRR24L E-mail:sale@worldvalue.cn http//:www.worldvalue.cn...
- Page 3 When using an extension cord , it should be a minimum 2.0mm AWG and no longer than 7.5 meters, or it may cause the voltage drop and damage the compressor. 377.1...
- Page 4 1. Do not mix different refrigerants together in one tank,or they could not Cause of High Pressure Protection and Trouble Shooting: be separated or used. ① The input valve of the refrigerant tank is closed——open the valve will 2. Before recovering the refrigerant, the tank should achieve the vacuum help solve the problem.
- Page 5 10. In order to gain maximum recover speed, a hose with inner diameterbigger than 4mm is recommended and the hose should better be shorterthan1.5m. 11. While recovering large amounts of liquid, use the Push/Pull Mode. (See Push/Pull Mode operation on Page12) 12.
- Page 6 COMPONENT COMPONENT PLASTIC COVER STARTING CAPACITOR FRONT PANEL JUNCTION BOX O.F.P. CABLE（※） JUNCTION BOX COVER AIR-COOL CONDENSER RUNNING CAPACITOR BASE COMPRESSOR OUTPUT INPUT POWER SUPPLY CORD COPPER PIPES FAN COVER CONTROL VALVE ※：Optional according to model ※：Optional according to model...
- Page 7 1. Turn the Switch to position "1". 2. Correctly and firmly connect the pipes.(See Connection Drawing) 3. Connect the unit to the right power supply(as shown on the Name Plate), turn the power on(I), and the BYPASS switch to MANUAL. 4.
- Page 8 1. Turn the Switch to position "1". 2. Correctly and firmly connect the hoses.(See Connection Drawing). 3. Turn the power on, turn the BYPASS switch to MANUAL and hit the start button. HVAC Syetem O.F.P. cable Input Output Vapor Filter Vapor valve Liquid Liquid valve...
- Page 9 6. When the showing of electric scale is not changing or changing very slowly, means that the liquid recovery is finished, and it's time for gas recovery. (The hoses need to be re-connected and please follow the Purge Operation to purge the gas refrigerant.) 7.
