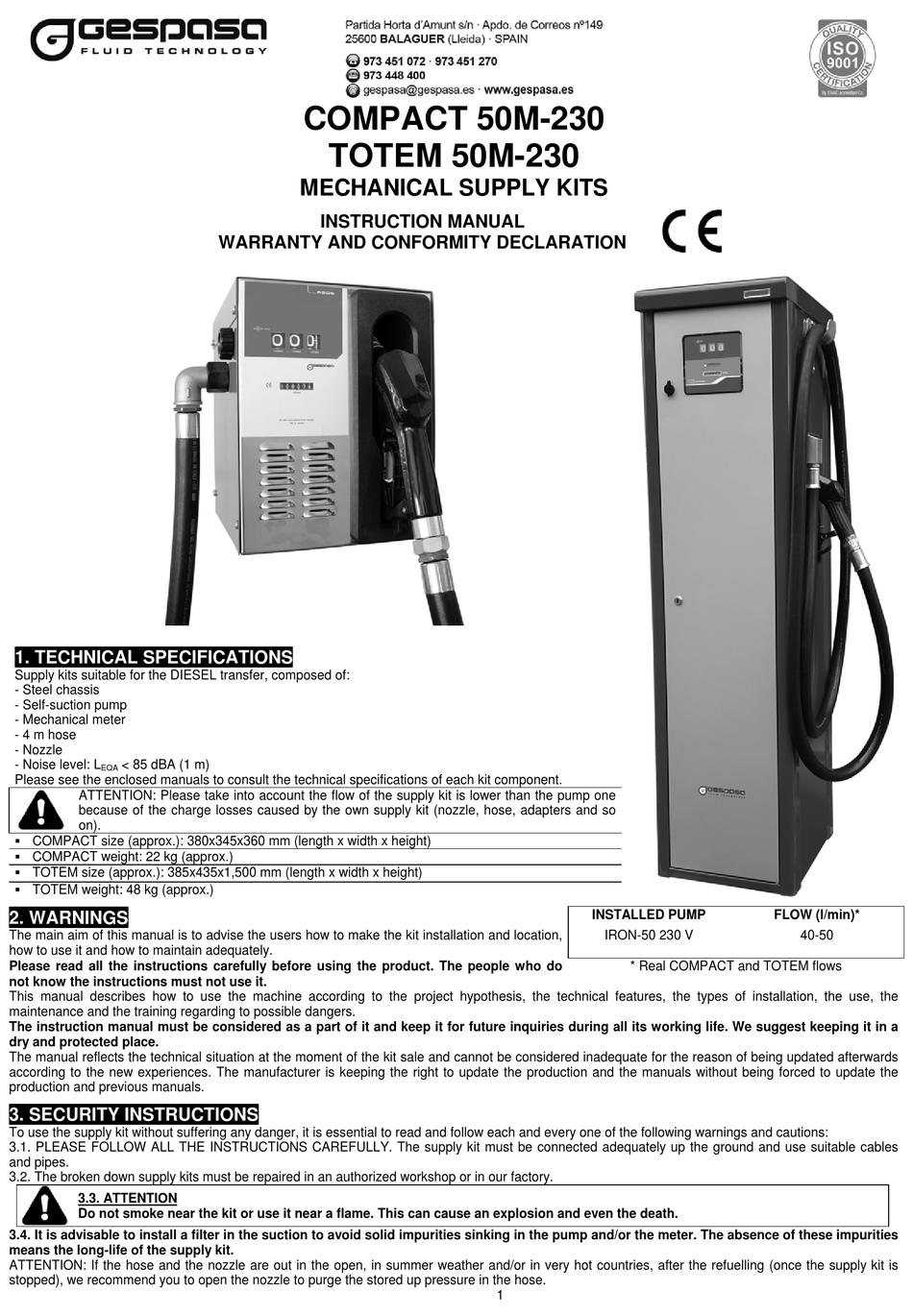

Gespasa Compact 50M-230 Instruction Manual

1. TECHNICAL SPECIFICATIONS
Supply kits suitable for the DIESEL transfer, composed of:
- Steel chassis
- Self-suction pump
- Mechanical meter
- 4 m hose
- Nozzle
- Noise level: L < 85 dBA (1 m)
EQA
Please see the enclosed manuals to consult the technical specifications of each kit component.
ATTENTION: Please take into account the flow of the supply kit is lower than the pump one
because of the charge losses caused by the own supply kit (nozzle, hose, adapters and so
on).
 COMPACT size (approx.): 380x345x360 mm (length x width x height)
 COMPACT weight: 22 kg (approx.)

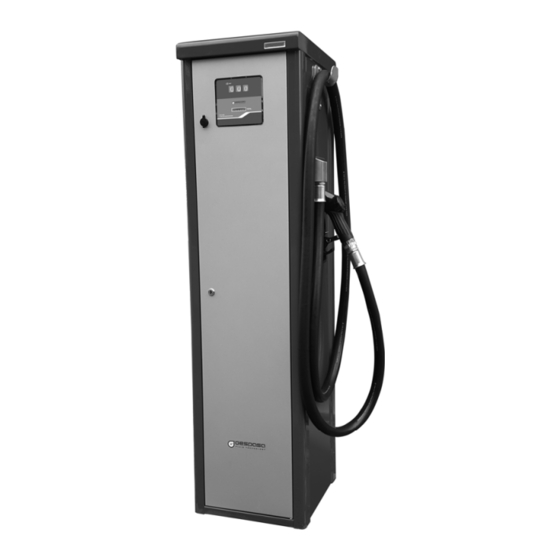

 TOTEM size (approx.): 385x435x1,500 mm (length x width x height)
 TOTEM weight: 48 kg (approx.)
2. WARNINGS
The main aim of this manual is to advise the users how to make the kit installation and location,
how to use it and how to maintain adequately.
Please read all the instructions carefully before using the product. The people who do
not know the instructions must not use it.
This manual describes how to use the machine according to the project hypothesis, the technical features, the types of installation, the use, the
maintenance and the training regarding to possible dangers.
The instruction manual must be considered as a part of it and keep it for future inquiries during all its working life. We suggest keeping it in a
dry and protected place.
The manual reflects the technical situation at the moment of the kit sale and cannot be considered inadequate for the reason of being updated afterwards
according to the new experiences. The manufacturer is keeping the right to update the production and the manuals without being forced to update the
production and previous manuals.
3. SECURITY INSTRUCTIONS
To use the supply kit without suffering any danger, it is essential to read and follow each and every one of the following warnings and cautions:
3.1. PLEASE FOLLOW ALL THE INSTRUCTIONS CAREFULLY. The supply kit must be connected adequately up the ground and use suitable cables
and pipes.
3.2. The broken down supply kits must be repaired in an authorized workshop or in our factory.
3.3. ATTENTION
Do not smoke near the kit or use it near a flame. This can cause an explosion and even the death.
3.4. It is advisable to install a filter in the suction to avoid solid impurities sinking in the pump and/or the meter. The absence of these impurities
means the long-life of the supply kit.
ATTENTION: If the hose and the nozzle are out in the open, in summer weather and/or in very hot countries, after the refuelling (once the supply kit is
stopped), we recommend you to open the nozzle to purge the stored up pressure in the hose.
COMPACT 50M-230
TOTEM 50M-230
MECHANICAL SUPPLY KITS
INSTRUCTION MANUAL
WARRANTY AND CONFORMITY DECLARATION
INSTALLED PUMP
IRON-50 230 V
* Real COMPACT and TOTEM flows
1
FLOW (l/min)*
40-50
