Voxx Electronics HR8MA1 Owner's Manual

8” monitor rear seat video headrest system
Hide thumbs
Table of Contents

Advertisement

Quick Links

HR8SS
ReAR SeAT VIDeO HeADReST SySTeM
A
vAilAble in two configurAtions
HR8MA1
8" MONITOR WITH DVD
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR8MA1 and is the answer not in the manual?

Questions and answers

Rick Buettner
August 11, 2025

What would cause the power to intermittently go out some time and what would cause the screen on the passenger side not come on

0

Summary of Contents for Voxx Electronics HR8MA1

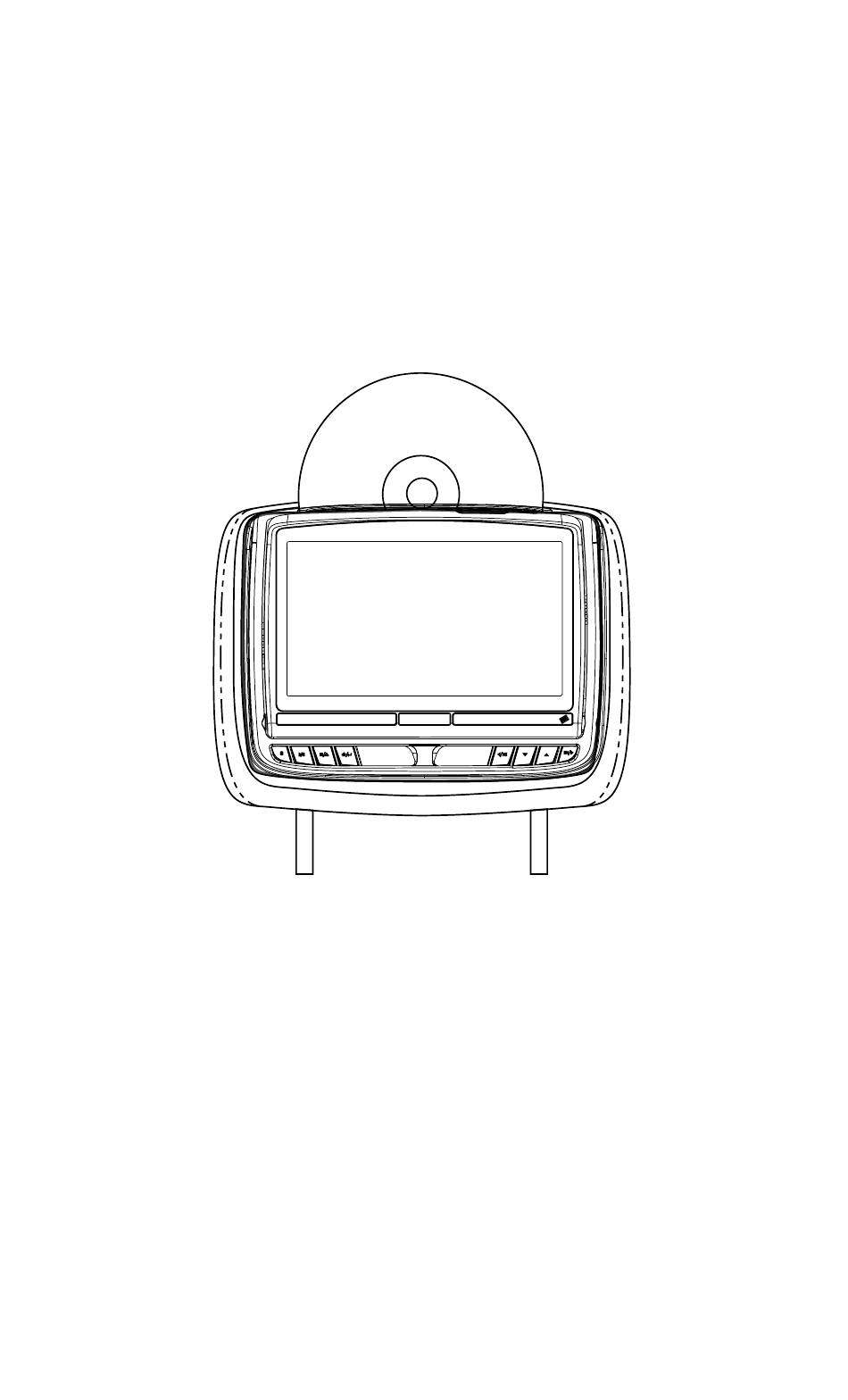

  • Page 1 HR8SS ReAR SeAT VIDeO HeADReST SySTeM vAilAble in two configurAtions HR8MA1 8” MONITOR WITH DVD Owner’s Manual...

  • Page 3: Table Of Contents

    OPErATiOn ........................27 TROubleSHOOTI Ng TrOuBlEsHOOTing ..........................28 SpeCIfICATIONS sPECiFiCATiOns ............................30 COMplIANCe INfORMATION ........................31 © 2021 VOXX Electronics Corp. All rights reserved. This manual, or any portion thereof, may not be reproduced without the express written permission of VOXX Electronics Corp.

  • Page 4: Congratulations

    Hr8MA1 monitor. Tablets to your 8” Headrest system. The HR8MA1 monitor has an 8” lCd panel with built-in dVd player that allows the user Note: Wireless content transfer can be limited...

  • Page 5: Product Features

    This input will also charge a • AUX Jack usB device that contains a battery. (see page 24-26 for more information) sources: • HR8MA1: dVd, usB, AuX in, AV/ dTV (HdMi or sMArTsTrEAM*), M1/M2. • SMARTSTREAM: requires anoptional WM1module which allows liMiTEd...

  • Page 6: System Configurations

    The 8” rear seat Entertainment system is available in 2 model configurations. Please refer to the following figures which detail each entertainment system configuration. Available in the configuration as follows: Configuration 1: Model HR8SS Two HR8MA1 8” lCd monitors with built-in dVd players. (Figure 1) HR8MA1 HR8MA1 (M1) (M2)

  • Page 7: Remote Control Battery Installation

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual ReMOTe CONTROl bATTeRy INSTAllATION Installation of the Remote Control battery 1. remove the battery cover. 2. insert two AAA batteries into the battery holder. Be sure to observe the correct polarity. 3.

  • Page 8: Headphone Battery Installation

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual HeADpHONe bATTeRy INSTAllATION Installation of the Headphone batteries (Actual Headphone may differ) Each wireless ir headphone requires two AAA batteries. locate the battery compartment cover on the earphone (backside or under ear cup). For headphones with under ear cup battery compartments - While holding the left earphone in one hand, insert a coin or slot head screwdriver into the screw slot and turn counterclockwise to release the battery compartment cover.

  • Page 9: Hr8Ma1 Front Panel Controls

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual HR8MA1 fRONT pANel CONTROlS figure 4 1. DVD disc insertion slot 7. USB INPUT CONNeCTOR This port is used to connect a usB 2. IR TRANSMITTeR and IR SeNSOR device for playback of content.

  • Page 10: Hr8Ma1 Quick Start Guide

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual HR8MA1 fRONT pANel CONTROlS (continued) 12. NeXT / RIgHT ( / ) Button 16. POWeR Button This button is used to skip to the next • Press and release this button to turn chapter or track during playback of a the monitor On.

  • Page 11: Hr8Ma1 System Setup Menus

    HR8MA1 Main Menu figure 5 figure 6 The SySTEM MENU allows the user to personalize the Hr8MA1 rear seat Video Headrest system settings. This menu is accessed by selecting the gear ( ) icon in the MAIN MENU. The MAIN MENU is used in the initial setup to adjust the picture quality and customize adjustable functions.

  • Page 12: Hr8Ma1 System Setup Sub-Menus

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual HR8MA1 SySTeM SeTup Sub-MeNuS System Sub-Menus 3. use the UP and DOWN direction buttons to select one of the five selections in the 1. Press the SySTEM MENU button on the...

  • Page 13: Remote Control

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual HR8MA1 SySTeM SeTup Sub-MeNuS (continued) 3. use the UP, DOWN, LEFT and RIGHT WIReleSS fM MODulATOR ON/ direction buttons to select the best Off Direct Access button on the channel/frequency from a five page list...
  • Page 14 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual HR8MA1 SySTeM SeTup Sub-MeNuS (continued) DefAulT DVD IR Transmitter ON/Off from the front panel: 1. Press and hold the HOME/ MENU SELECT button on the front panel of the unit to show the SySTEM MENU.
  • Page 15 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual HR8MA1 SySTeM SeTup Sub-MeNuS (continued) SMART STReAM SMART STReAM, figure 14 SMART STReAM from the front panel: Press and hold the MENU/SELECT button on the front panel of the system for 3 to 5 seconds to show the System Menu.

  • Page 16: Remote Control Operation

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual ReMOTe CONTROl OpeRATION figure 15...
  • Page 17 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual ReMOTe CONTROl OpeRATION (continued) button (10) to show monitor status, 1. pOWeR ( modulator status, ir Transmitter status, Press this button to turn the system On M1/M2 id, source status. and OFF. Press the dVd button (4) and the 2.
  • Page 18 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual ReMOTe CONTROl OpeRATION (continued) 16. NeXT ( 23. fMM ON/Off ( ) (M1 Monitor only) When a disc has more than one Chapter, This button is used to turn the wireless Track, or File, you can move to another FM Modulator On and OFF.

  • Page 19: Dvd Settings And Adjustments

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual DVD SeTTINgS AND ADJuSTMeNTS The SySTEM SETUP and LANGUAGE SETUP menus contain features and options that lets you customize your dVd player. For example, you can set the screen display or a language for the on-screen display or prevent dVd playback of certain dVd discs (for example Pg-13 or r rated) for children.
  • Page 20 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual DVD SeTTINgS AND ADJuSTMeNTS (continued) This item allows the user to limit the content TV Type of movie playback from g to Adult. The TV TYPE setup allows the user to set the The lower the value, the more strict the screen aspect ratio.
  • Page 21 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual DVD SeTTINgS AND ADJuSTMeNTS (continued) lANguAge SeTup The suBTiTlE lAng setup option page allows the user to select the language for OSD lANguAge the Osd. The user can either select EnglisH, The Osd lAnguAgE setup option page allows FrEnCH, sPAnisH, gErMAn, iTAliAn, the user to select the language for the Osd.

  • Page 22: General Disc Operation Instructions

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual geNeRAl DISC OpeRATION INSTRuCTIONS DISC bASICS NOTeS on Discs To get the optimum use out of the dVd • do not touch the disc surface. Handle the player, make sure you read this section disc by the edge.

  • Page 23: Dvd Region Codes

    All dVd discs are coded by region. These region codes must match in order for the dVd to play. if the codes do not match, the dVd will not play. Playback of a disc from any other region will not work in the Hr8MA1 and the unit will display “WRONG REGION”. figure 27...

  • Page 24: Hr8Ma1 Usb

    Press the Ok button on the remote control or the enter button on the front panel to start playing the content. The file types supported with the usB input for the Hr8MA1 are limited to MPEg1, MPEg2, MP3 and JPEg files.

  • Page 25: Av, Aux Inputs, Av Outputs,Hdmi And Usb Port Information

    * is a good source for connected. NOTe: Requires optional adapter, finding an adapter that will work with your P/N 112-3227. Contact VOXX Electronics at smartphone. 1-800-225-6074. HDMI devices **: Audio/Video Output...
  • Page 26 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual AV INpuTS, OuTpuTS, HDMI/MHl AND uSb pORT INfORMATION (continued) USB PORT INFORMATION uSb port The usB port provides two functions: Media port for usB thumb drives: Phone/Tablet charging: • The usB port will not charge a portable device when the unit is turned OFF.

  • Page 27: Smart Stream

    Tablet to Hr8ss Headrest configurations (Hr8MA1 monitors). Content that can be wirelessly streamed from your device may be restricted depending on the smartphone or Tablet and/or the content that is intended to be streamed wirelessly to the Hr8ss system.

  • Page 28: Troubleshooting

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual TROubleSHOOTINg Symptom Remedy system does not power “On” • is the ignition turned “On”? • is the battery installed in remote Control? ir remote inoperative • Verify that the battery in the remote Control is good. • Verify that the proper battery polarity (+ or -) is observed (+ side facing up).
  • Page 29 8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual TROubleSHOOTINg (continued) Symptom Remedy Picture is distorted. • Check the disc for fingerprints and clean with a soft cloth, wiping from center to edge. • The disc might be damaged, try another disc. • it is normal for some distortion to appear during forward or reverse scan.

  • Page 30: Specifications

    -22°F ~ 150°F (-20°C ~ +70°C) Video display system nTsC/PAl Back light life 20,000 hours HR8MA1 HDMI Specifications 1. supported HdMi version 1.4b. 2. supported HdMi up to 1080P. 3. supported HdMi input resolution: * 640x480p~60Hz~4:3 / *720x480p~60Hz~16:9 / *720x576p~50Hz~16:9 / * 1280x720p~60Hz~16:9 / *1920x1080p~60Hz~16:9 / *1920x1080p~50Hz~16:9 NOTe: Specifications subject to change without notice.

  • Page 31: Compliance Information

    8” MONITOR ReaR SeaT VIdeO HeadReST SySTeM Owner’s Manual COMplIANCe INfORMATION FCC NOTICe NOTICe This device has been tested and found to disposal of Old Electrical & Electronic comply with the limits for a Class B digital Equipment (Applicable in the European device, pursuant to part 15 of the FCC union and other European countries with rules.
  • Page 32 1-800-225-6074 © 2021 VOXX electronics Corp, 2351 J. lawson blvd, Orlando fl 32824 700061...
