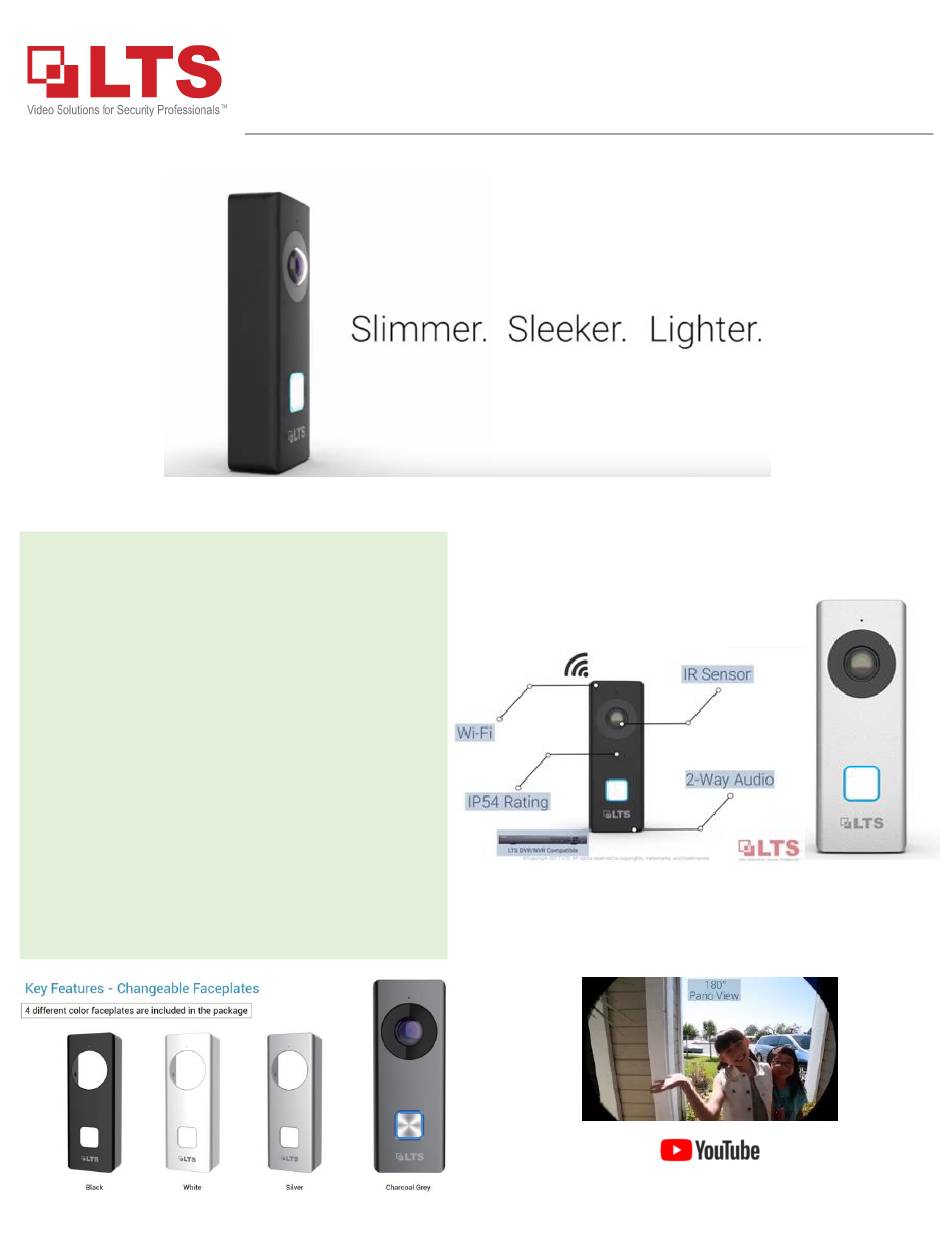

Key Features:

Replacing to the existing doorbell button,
•
no extra wire needed
•
2.1MP 1080P Full HD @30fps with audio
180° panoramic view
•
•
See/hear/speak to visitors via phone APP
Support Day/Night view with WDR image,
•
built-in IR Light (up to 15ft)
Connect/record to LTS NVR (Exclusive)
•
MicroSD Storage support up to 128GB
•
(SD card not included)
*Support Mechanical Doorbell system & Door Chime. May not work for musical door chime. Not compatible with Wireless Doorbell & Door Chime.
Knowledge Base
KB – Door Bell Camera Setup Guide
*
Jimmy Wang
Text:
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LTS KB

  • Page 1: Key Features

    Knowledge Base Jimmy Wang Text: KB – Door Bell Camera Setup Guide Key Features: Replacing to the existing doorbell button, • no extra wire needed • 2.1MP 1080P Full HD @30fps with audio 180° panoramic view • • See/hear/speak to visitors via phone APP Support Day/Night view with WDR image, •...

  • Page 2: Table Of Contents

    Insert MicroSD card / Initialize / Check Update Page 10 Camera Specifications / Reset Page 11 Advance Operation – Find Camera IP address / Activate / Connect to LTS NVR Page 12 Doorbell Camera Setup Requirement: 1. Internet Connection 2. Wi-Fi Router (2.4G or Dual Band) 3.

  • Page 3: Hardware Connections / Lts Connect App

    2. With the existing Door Chime System (Wired) Download & Install the App LTS Connect (Android / iPhone) Please download the LTS Connect app for the Android / iPhone first before everything. Note: Please make sure the Smartphone connected to the local Wi-Fi network first.

  • Page 4: First-Time Setup / Pairing Wifi Network

    & flicker alternately. It indicates Ready for the Wi-Fi configuration (by default). Open LTS Connect App More > Settings > Wi-Fi Settings > (Enter WIFI SSID & Password) > click Generate Scanning: While the camera indicator is still flickering Blue &...

  • Page 5: Register / Login Account & Viewing

    Register / Login Account for the LTS Connect Remember to press the Home button, always can go back to the Homepage. If you registered the account already, just enter the ID and Login. Select the Doorbell Camera, and choose Start Live View to view at the bottom.

  • Page 6: Adding The Doorbell Camera Into The Lts Connect App

    Adding the Doorbell Camera into the LTS Connect. For the first time, there is no existing device. We need to add the Doorbell camera into this account. Press the (+) sign to Scan the QR Code. Open the doorbell camera case cover and Scan the QR Code from the sticker.

  • Page 7: Basic Operation - Starting Up & Push To Call

    Basic Operation – Starting up & Push to Call When the doorbell camera power up and start to check your WIFI status, it will prompt the message as follows: The doorbell is running WIFI connected The server has been registered. Hello Page | 7...

  • Page 8: Basic Operation - Live View

    Basic Operation – Live View Device List is for manage the device setting. Device List (See Advance Operation Section) Playback Playback – Playback the recorded video If you have more doorbell camera to add, click + button Green = Selected Scan QR code to scan (same step as page 6).

  • Page 9: Basic Operation - Playback

    Basic Operation – Playback Play/Stop All Speaker / Mute Play/Stop 1ch Zoom (8x max) Snapshot Quality Record Video Speed (8x Max) Playback Time Basic Operation -- More Settings Pictures and Videos are the places to keep your snapshot clips and video files. You may click to review or delete to save space from here.

  • Page 10: Insert Microsd Card / Initialize / Check Update

    Basic Operation – Push Notification Open Setting from the camera Live View page. Enable Alarm Notification When there is motion detected, the camera will send a Push Alarm notification to your Smartphone. If you are the iPhone user, make sure iPhone Notification setting is turn ON before you enable this feature.

  • Page 11: Camera Specifications / Reset

    Basic Operation – Insert MicroSD card / Format Open the camera case cover, and remove the protective cap. Insert the MicroSD card in the slot. Gentle insert the MicroSD card and push into secure position. Put the water protection cap back. Important: MicroSD card must initialize before its uses.

  • Page 12: Advance Operation - Find Camera Ip Address / Activate / Connect To Lts Nvr

    Specifications Video Doorbell Processor High-Performance Embedded SOC Processor Operation System Embedded Linux Operation System Image Sensor CMOS Lens f1.96 mm, F2.2 180°(Horizontal), 96°(Vertical) Light Sensitivity Low Illumination Video Parameters Video Compression H.264 Video Streaming Dual Stream Main Stream: Max. 1080P@30fps, Sub-Stream: VGA@30fps Anti-Flicker Frequency 50Hz, 60Hz Wide Dynamic Range...
  • Page 13 Advance Operation – Reset Press Reset button for 5sec, the camera will reboot. Default: If you keep press more than 15sec, the doorbell will respond “the device is rebooting”. Then, the device will reset back to default. The button will Cycling between Blue &...
  • Page 14 Enter the doorbell camera IP address, ID, and password correctly & finished. Congratulation, you just success to adding the doorbell camera into the LTS NVR. Advance Operation – Camera Configuration You can configure the doorbell camera more settings from the NVR web configuration, or thru the NVMS7000 (PC).
