Series
23800
BUILT WITH
"SURE START
SYSTEM"
* Denotes parts in kit
Parts List
Item
Part#
Description
1
06639
Discharge Casing
11
06640-XX* Drive Plug
12**
06219
Front Cap
* This p/n corresponds to nozzle size, e.g. a 23800-20
turbo nozzle will have a 6640-20 drive plug.
**For 23800 Series with Cover
MAINTENANCE NOTICE:
If turbo will not spin, take unit apart and clean the nozzle.
If turbo still will not spin, have an authorized distributor
repair nozzle.
Operating Conditions
Continous Pressure:
Maximum Pressure:
Maximum Temperature:
Angle:
Weight:
Inlet:
10/06 23800.PMD
23800-XX = Turbo Nozzle without cover
23800-XXC = Turbo Nozzle with cover sizes
Quantity
1
1
1
3200PSI
3600PSI
195
o
F
20
o
0.7 lbs.
1/4" BSP
Repair
Kits#
9511-20
(23800-20)
9511-25
(23800-25)
9511-30
(23800-30)
9511-35
(23800-35)
9511-40
(23800-40)
9511-45
(23800-45)
9511-55
(23800-55)
9511-60
(23800-60)
9511-65
(23800-65)
9511-70
(23800-70)
9511-75
(23800-75)
9511-80
(23800-80)
9511-90
(23800-90)
9511-100
(23800-100)
9511-120
(23800-120)
Giant Industries, Inc.
900 N. Westwood Ave.
Toledo, Ohio 43607
PHONE: 419-531-4600
FAX: 419-531-6836
www.giantpumps.com
©
Copyright 2006 Giant Industries, Inc.

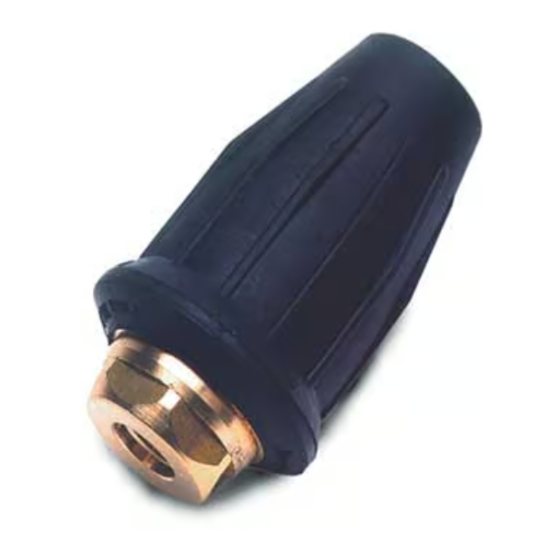

Turbo Nozzle
Nozzle
Includes
2.0
2-10
2.5
2-10
3.0
2-10
3.5
2-10
4.0
2-10
4.5
2-10
5.5
2-10
6.0
2-10
6.5
2-10
7.0
2-10
7.5
2-10
8.0
2-10
9.0
2-10
10.0
2-10
12.0
2-10
! ! ! ! ! WARNING ! ! ! ! !
HIGH PRESSURE
DO NOT POINT
AT INDIVIDUAL
MAY CAUSE
SERIOUS INJURY!
Advertisement
Table of Contents
Summary of Contents for Giant Turbo Laser 23800 Series
- Page 1 ! ! ! ! ! WARNING ! ! ! ! ! Toledo, Ohio 43607 Weight: 0.7 lbs. HIGH PRESSURE PHONE: 419-531-4600 Inlet: 1/4" BSP DO NOT POINT AT INDIVIDUAL FAX: 419-531-6836 MAY CAUSE www.giantpumps.com SERIOUS INJURY! © Copyright 2006 Giant Industries, Inc. 10/06 23800.PMD...
- Page 2 SERIES 23800 TURBO LASER REPAIR INSTRUCTIONS Before repairing the turbo laser, please note that item number (11) is not interchangable with different size nozzles. Part #6640-XX corresponds to a specific nozzle size (see note on front page). Secure discharge casing (1) and remove drive plug (11) with a 24mm wrench. Check o-ring (9) for damage and replace if necessary.
