User manual of mob.iq [ RHM ] controllers.

MOBILUS MOTOR Spółka z o.o.

ul. Miętowa 37, 61-680 Poznań, PL

tel. +48 61 825 81 11, fax +48 61 825 80 52

VAT NO. PL9721078008

www.mob-iq.eu

Wersja 1.4ENG, 180327

Table of Contents

Need help?

Do you have a question about the mob.iq [RHM] and is the answer not in the manual?

Questions and answers

Summary of Contents for MOBILUS MOTOR mob.iq [RHM]

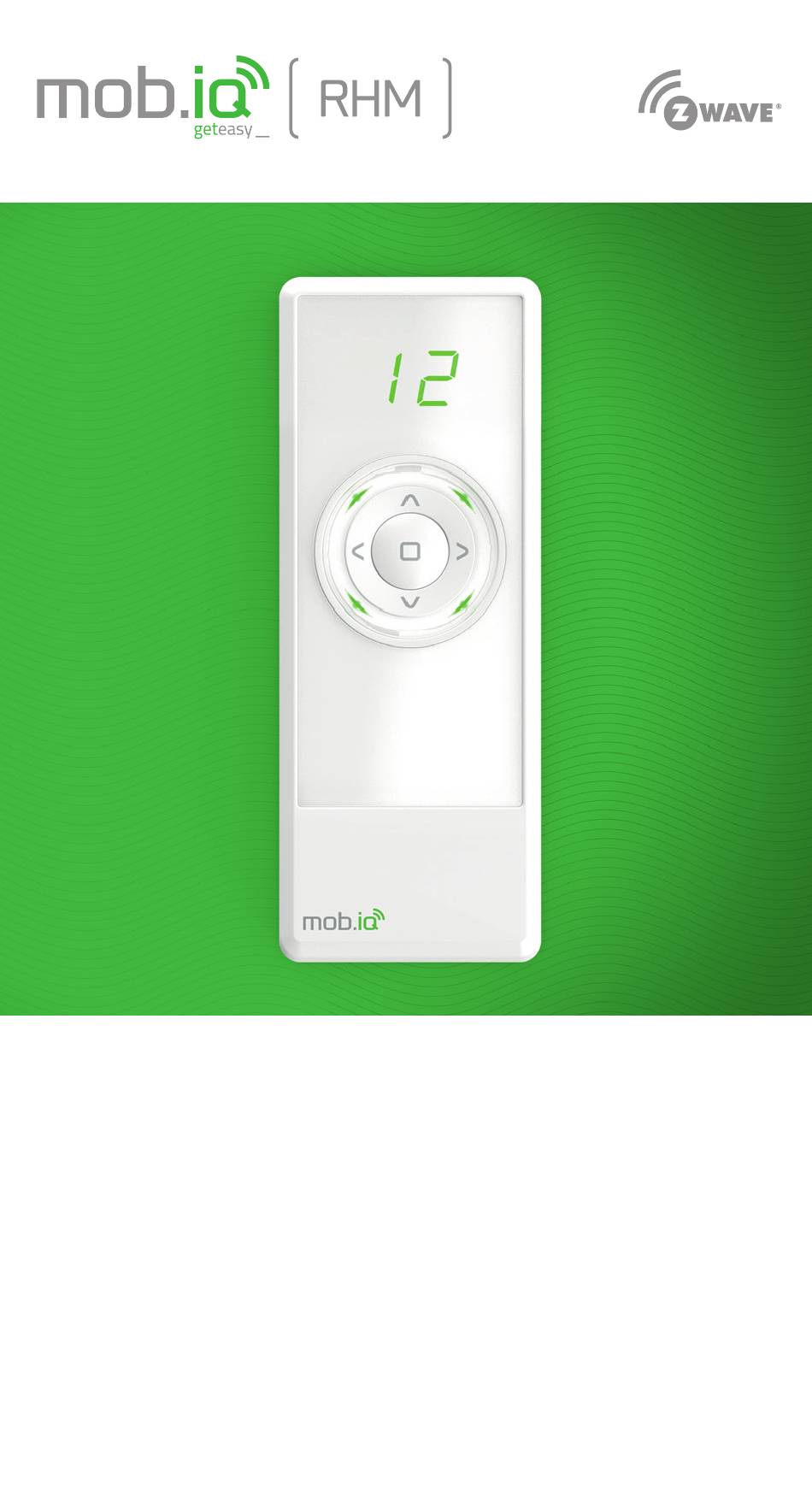

Page 1 User manual of mob.iq [ RHM ] controllers. MOBILUS MOTOR Spółka z o.o. ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 VAT NO. PL9721078008 www.mob-iq.eu Wersja 1.4ENG, 180327...
Page 2: General Information

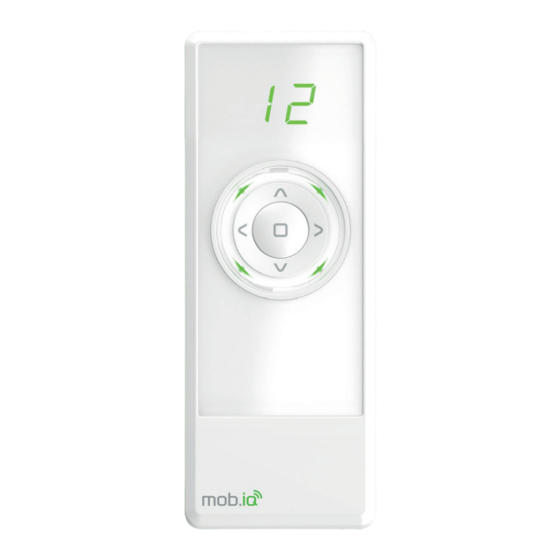

1. GENERAL INFORMATION The mob.iq [RHM] remote control is a multi-channel controller designed for remote control of accessories compatible with the Z-Wave standard (e.g. tubular motors, chain motors, gate drives, ON / OFF switches, etc.). The controller allows you to control up to 12 groups of devices with the same or similar functionality - 12 devices max.
Page 3: Contents Of The Package
3. CONTENTS OF THE PACKAGE The packaging contains the following items: • remote mob.iq [ RHM ] • 2 AAA batteries in the remote control protected against discharging with a seal, • user manual, • wall holder with magnet and fixing pins (2 pcs.). 4.
Page 4: Power Supply
5. ASSEMBLY OF A HOLDING FIXTURE Wall mount components: • transparent handle - A, • assembling screws cap - B, • anchors with screws - C. 1. Determine the position where the handle will be located (easy access, no running power cables, pipes, reinforcement of walls, etc.).
Page 5 CONTINUED 8. CONTROL Controlling devices in the mob.iq [RHM] remote control consists in controlling a selected group of devices. If we want to control devices independently, they should be assigned to separate groups. Select the group you want to control with the buttons (active groups only).
Page 6: Quick Start
10. QUICK START The function allows you to add a device to the Z-Wave network, with simultaneous assignment to the selected group. 1. Press and hold the buttons for 3 seconds. The remote will enter the configuration mode, four green LEDs will light up. Use the buttons to select the command - QUICK START...
Page 7 CONTINUED. 11. ADD DEVICE TO THE NETWORK - INCLUDE FUNCTION 3 sek. Fig.11.1 2. Starting the procedure is signaled on the display by a countdown of 12 seconds. During this time, press the programming button P on the device. The correct end of the procedu- re will be signaled on the remote control by the lighting of the channel number and the blinking of four green LEDs.
Page 8 CONTINUED12. ASSIGNING THE DEVICE TO THE GROUP - ASSOCIATE FUNCTION 4. Starting the procedure is signaled on the display by a countdown of 12 seconds. During this time, press the programming button P on the device. The correct end of the procedure will be signaled on the remote control by blinking of four green LEDs.
Page 9 14. DELETE THE ENTIRE GROUP - DELETE GROUP FUNCTION Funkcja pozwala usunąć całą grupę urządzeń. Sterowanie urządzeniami jest możliwe dopiero po ich ponownym dodaniu do grupy. 1. Press and hold the button for 3 seconds. The remote will enter the configuration mode, four red LEDs will light up.
Page 10 CONTINUED 15. COPYING THE GROUP - COPY GROUP FUNCTION rys.15.3 rys.15.4 4. Starting the procedure is signaled on the display by a countdown of 12 seconds. - fig. 15.5. During this time, activate the LISTENING MODE on the target remote control. The correct end of the procedure will be signaled on the remote control by blinking of four green LEDs.
Page 11: Pairing Devices
17. ASSIGNING THE REMOTE AS A SECONDARY - LEARN FUNCTION This function allows you to assign a mob.iq [RHM] remote control to an existing Z-Wave network as a SECONDARY. The MASTER pilot in this network can be of any type. In order for a SECONDARY remote control to be able to control devices, they must be added to the selected remote control group.
Page 12: Remote Reset
CONTINUED 18. PAIRING DEVICES 2. Use the buttons to select the device pairing group: 1..99 and confirm with - Fig.18.2 the button - Fig.18.3. 99 s 99 s 99 s Fig.18.2 Fig.18.3 3. Within 99 seconds, enter the device to be controlled by another device in PROGRAMMING MODE - two green LEDs on the remote control will light up and the countdown from 99 s to 1 s will start - Fig.18.4.
Page 13: Additional Information
20. LISTENING MODE - REMOTE CONFIGURATION - LISTENING MODE FUNCTION The remote control entered into the listening state allows remote configuration from another controller, for example Gateway Z-Wave. Trigger the transfer function. 1. Press and hold the buttons for 3 seconds. The remote will enter the configuration mode, four green LEDs will light up.
Page 14: Problems Encountered
22. CHANGE OF SOLAR DEVICE PARAMETERS BASIC PARAMETERS Hold the button for 3 s. The first set of parameters will appear. Use the buttons to select the parameter, enter with the button, use the buttons to change the parameter values. Setting the time after which the awning will work in semi-automatic and automatic mode in the range of 3-10 min.
Page 15 23. PROBLEMS ENCOUNTERED 3. The device cannot be removed from the group. CAUSE SOLUTION No programming button pressed. Press the programming button for 2 s. Too long waiting time for pressing the Press the programming button within 12 programming button on the device. seconds.
Page 16: Warranty
Defects found during the warranty period will be removed free for no longer than 14 working days from the date of acceptance of device for repair. The manufacturer MOBILUS MOTOR Sp. z o.o. carries on warranty repairs repairs. If you have any questions, please contact your dealer (please provide the following information: event description, description of the error, the conditions under which the accident occurred).
