Summary of Contents for Shire Cubby

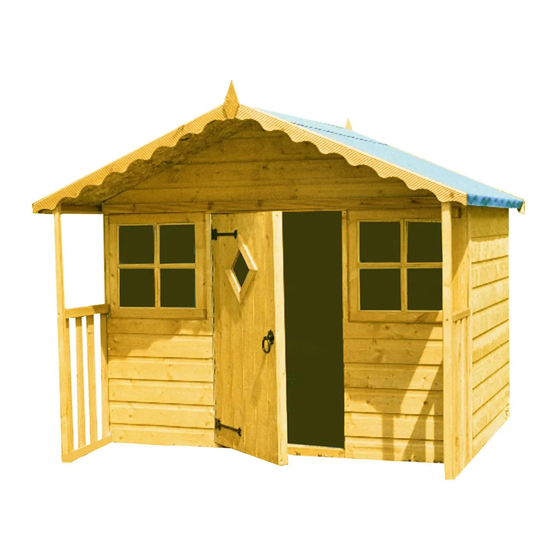

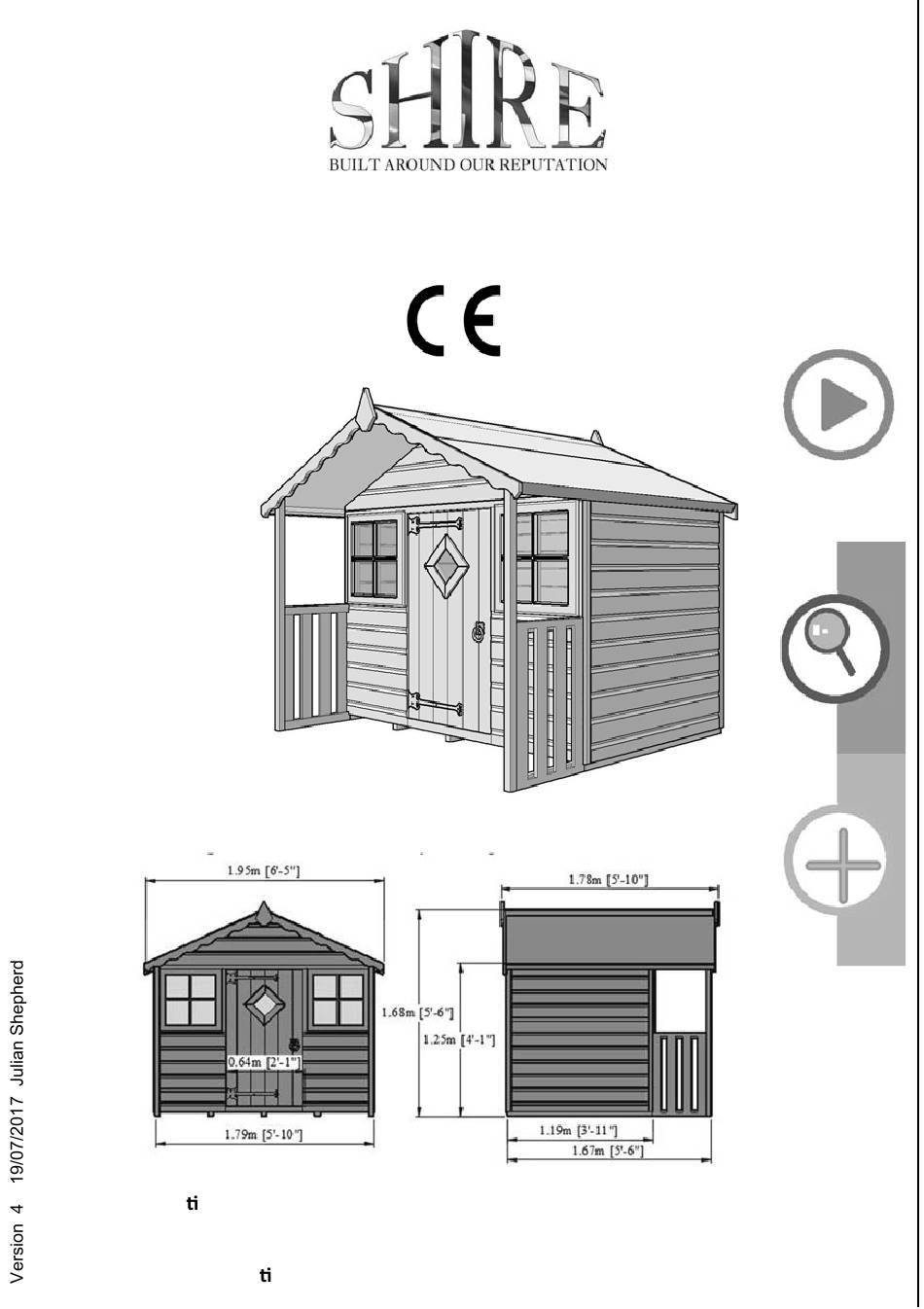

- Page 1 © Cubby Playhouse Complies with EN71 These instruc ons are for your safety. Please read through them thoroughly before use . PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE All informa on, contained in this booklet © Shire Garden Buildings .
-
Page 2: Table Of Contents
Let’s get started... Important information... Safety Base and positioning Warranty Before you start Care maintenance & Recycling In more detail... Hardware chart Detailed Technical Drawing 08-09 Parts List Assembly instructions 11-24 EN For a copy of the instruc ons or a copy in another language please send Pour obtenir un exemplaire des instruc ons ou une copie dans une F autre langue s'il vous plaît envoyez un e‐mail ou écrire à l'adresse ci‐ Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila lub PL pisać na adres podany poniżej. ... -
Page 3: Safety
Cubby playhouse Safety Check that you have noted all the following instructions We advise the use of non slip protective gloves throughout the assembly process. We advise the use of steel capped protective footwear throughout the assembly process We advise the use of protective headwear and safety ... -
Page 4: Base And Positioning
Cubby playhouse Base and Warranty Preparation of base... We recommend that the base onto which your building will stand should be at least 75mm larger in each direction than the total floor size of the building. Actual floor area of the building: 1790 x 1190mm (excluding canopy) -
Page 5: Before You Start
Before you start Cubby playhouse Things to check before you start Ensure your base is ready– See page 3 Check all parts as listed in the parts lists Read the instructions fully before starting work Follow all the health and safety guidelines ... -
Page 6: Care Maintenance & Recycling
Cubby playhouse Care, Maintenance and Recycling The 5 golden rules of care Ensure your base is level and firm Ensure the building is not sitting directly on the ground using damp proof membrane or the optional timber base. Ensure every piece of timber and surface, especially that is hidden upon... -
Page 7: Hardware Chart
Hardware Chart Felt Nail Scale 1:1 (13mm FN) x154 Panel Pin (16mm PP) x64 Round head nail (40mm RH) x78 Round head nail (60mm RH) x3 black Posi-drive screw (12mm) x04 Posi-drive screw (20mm) x08 Black Posi-drive screw (25mm BLK ) x08 Posi-drive screw (25mm) x63 Posi-drive screw... -
Page 10: Parts List
Parts List ..Not to scale Door architrave Plastic Glazing False Hinge Continuous Hinge Black ring handle Door (SP7-230) x04 (B-RH) x01 (FH-) (CH-1105-) (DR03) x1 (PX-175-175) x1 175mm 628mm Wooden Knob Door Panel Window Hinge Window insert Casement set Floor panel (WKB) x01 (DP4) x01 (STH) -
Page 11: Assembly Instructions
Assembly instructions: These instructions are for your safety. Please read through them thoroughly before use. Treat all the parts before assembly – see page 6! GB-IE Mark for 8 holes as shown on the inside of the door and drill 4mm. Door (DR3)x01 Door architrave... - Page 12 GB-IE Attach the smaller inner part of the 3 point hinges on the long edge of the door. Door (DR3)x01 Continuous hinge (CH-1105)x01 Screw (25mm)x14 Black ring handle (B-RH)x01 Wooden Knob (WKB)x01 Screw (45mm)x01 Black screw (25mmFH)x04 GB-IE Position the "black ring handle B-RH" on the outside over the door framework, mark the screw holes as shown, drill the middle hole only for the "wooden knob WKB", attach the wooden knob on the inside of the door first with the 45mm flat head screw and then attach the ring handle on the outside of the door over the flat head screw.
- Page 13 GB-IE Lay the door panel "DP3" on the floor, lay the door evenly in position and attach.. Door (DR3) x01 Door panel (DP4)x01 Screw (25mm)x15 GB-IE Rebate the top of the window insert 3mm deep. Use the hinge to mark the length. To comply with EN71 safety regulations Window insert (WI4)x01...
- Page 14 GB-IE Try the window in position in the panel to check that you have it the correct way around. The hinges fit the top of the window. Window insert (WI4) x01 Hinge (STH)x02 Screw (25mm)x04 GB-IE Position the window insert in the aperture and screw the inner screw holes that are just visible first. Open the window and insert the remaining screws.
- Page 15 GB-IE Casement stay and pins must fit together loosely. Fix the casement stay to the window insert first. Then mark and fix the pins . Casement set (H-C-AL) x01 Screw (25mm)x06 GB-IE Drill both the "PP11 " panels as shown and screw to the ”PP10” panel with 2 60mm screws. The cladding on the bottom of the panels overhangs the floor edge.
- Page 16 GB-IE Continue adding and fixing the walls as before Side-Plain panel (PP11) x01 Assembly from Steps 01-06 Screw (60mm)x06...
- Page 17 GB-IE Place the Back Gable "GP3-b " panel level with the framework and fix to the panel below . Repeat with the front gable.”GP3-F” Back Gable Front Gable (GP4-F) x01 Screw (60mm) x08 GB-IE Push the vents into the holes in the back gable panel. Safety vent (VNT) x01...
- Page 18 GB-IE Position and nail the framework on both the long edges on both roof panels . Roof Panel (RP15) x02 34mm` Roof framework (34S-1700) x04 Nail (40mm)x28 GB-IE Cut both pieces of the centre roof framework as shown for the peek of the roof. Assembly step 12 x 02...
- Page 19 GB-IE Place the roof panels on the building lining them up with the cladding at the back and with each other Assembly from Steps 12 –13...
- Page 20 GB-IE Hold the roof panels together and nail together 60 Nail (60mm) x03 GB-IE Position ( flush at the back ) and fix both roof panels nailing into the walls Use 3 nails along each short edge and 5 nails along the long edge. Assembly from Steps 12 –13 Nail...
- Page 21 GB-IE The "Veranda rails SP18" are handed. Attach the veranda posts to create mirror images of each other. Veranda fence (SP18)x02 34mm` Veranda post (34R-1330)x02 Screw (60mm)x04 GB-IE Attach two " L Brackets LB" to each rail . L Bracket (LB)x02 Screw (25mm)x04...
- Page 22 GB-IE Position the "Rail assembly SP18", drill the roof and fix here and also the "L Bracket LB" to the wall. Rail assembly Steps 18-19 Screw (25mm)x06 GB-IE 3 Strips of felt have been supplied . Fit the 2 lower ones first folding the felt over the roof edging, with an even overhang front and back then secure with a couple of nails at the top to hold the felt in position and at the bottom nail at approximately 100mm centres The third piece overlaps the lower pair and goes over the ridge.
- Page 23 GB-IE Make sure the nails go into the gable framework avoiding the felt nails. Front Back Building Photographs F&B Fascia (70FC-1070)2 &2 It will be greatly appreciated if you could forward images of your completed Flat bottom diamond (DI-FB)-70x02 building to - sales@shiregb.co.uk. ...
- Page 24 GB‐IE A ach the "Roller catch RC" catch to the door and the body to the door frame . Door 34S‐100 34mm Door catch block (34s-100)x01 Screw (60mm) x2 Roller catch (RC)X01 Door Screw (25mm) x04 GB-IE Fix the walls to the floor with 2 x 60mm screws per panel Screw (60mm) x8...
