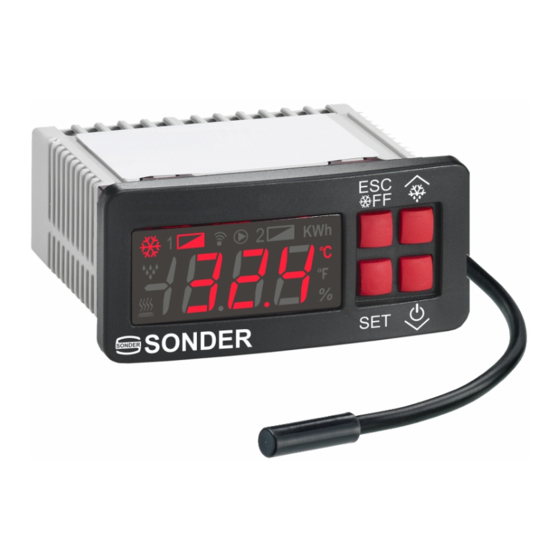

Sonder EC 230-331 Instructions For Installation And Use

EC 230-331
Code 26.215

1 - Installation

Material included
Control
Sealing joint Anchors to Fix panel
Electrical Drawing 331
16A
N
I max: 16A
N L
1 2 3 4 5
R. CARTER
COOL (P0=0)
LOAD
RES. (P0=1)
230 V~ 50/60Hz

2 - Operation

DEF. relay ON
FastFrezzing mode
Cooling mode (P0)
Relay ON
1
Heating mode (P0)
Temperature in
°C Celsius degrees
Stand-by mode
°F Farenheit degrees
OFF Control
ESC
ESC / key
FF
Press for 5 seconds to start/stop Fast Freezing mode
(rapid cooling).
In the programming menu, exit without saving
parameter, return to previous level or exit
programming.

3 - Screen messages

Access code (Password) request.
Indicates a defrost is underway. (Only if
parameter d2=2)
Probe 1 faulty (open circuit, crossover, or
temperature value out of range depending on
the type of probe). Activates the alarm relay.
Probe 2 faulty (open circuit, crossover, or
temperature value out of range depending on
the type of probe). Activates the alarm relay.
Flashing: maximum temperature alarm on
probe 1 (A1). Activates the alarm relay.
IFlashing: minimum temperature alarm on
probe 1 (A2). Activates the alarm relay.
External alarm activated (only if parameter
P10 or P11=2). Activates the alarm relay.
Severe external alarm activated (only if parameter
P10 or P11=3). Activates the alarm relay.
Defrost time-out alarm (only if parameter
A8=1).
Door open alarm (Only if P10 or P11=1 and as
per time at A12).
Instructions for Installation and Use
Multiprobe Electronic Control NTC, PTC & contact closure
Probe
Manual
Mode Cool (P0=0)
L
I max: 16A
N L
6 7 9 10 11 12
SET key
Press for 5 seconds to modify the set point (SP).
Press for 10 seconds to go to the programming menu.
In the programming menu, go to the level displayed or
accept the new value while setting a parameter.
UP
ESC
Pressing for 5 seconds starts/stops defrosting.
FF
The programming menu, allows you to scroll through
the various levels or, during the setting of a parameter,
to change the value.
SET
Keys
Down
Pressing for 5 seconds activates Standby mode,
pressing for 2seconds returns the equipment to
normal mode. In Standby mode,the equipment
performs no actions and only the
displayed on the screen.
The programming menu, allows you to scroll through
the various levels or, during the setting of a parameter,
to change the value.

4 - Very Important

Before opening the box, to access the connections, make
sure disconnect the power.
This control is not a safety device, and can not be used as
such, it is the installer's responsibility incorporate
adequate protection for each type of facility
(Homologated).
The power supply circuit should be provided with a
switch for disconnection of minimum 2A, 230 V, located
near the appliance. The cables must be enter through the
back and should be H05VV-F or H05V-K. The cable section
will depend on local regulations, but should never be less
than 1 mm. The cables for connecting the relay contacts
must have a section of 2.5 mm.
The equipment must be installed in a place protected
from vibrations, water and corrosive gases, where the
ambient temperature does not surpass the value in the
technical data.
The probe cable must be as far away as possible from
other electrical conductors. Its recommended by actual
normative that maximum length should not exceed 3
meters, and if it is necessary lengthen has to be done with
welding and shrink splice, to avoid reading errors.
Fit joint Locate on the panel
Make connections according to label
Control manipulation should be carried out by
qualified technicians and probe cables should
NEVER be installed together with power
cables, control or power.
16A
N L
1 2 3 4 5 6 7 9
R. CARTER
COOL
230 V~ 50/60Hz
key
key
indicator is
Fix on the panel
Connect to the power supply
Mode HEAT (P0=1)
I max: 16A
N L
10 11 12 1
R. CARTER
RES.
Acces to Setpoint and Programming
5 sec.
ESC
FF
1
SONDER SONDER
SET
Temperature Release SET to access
Indication the set point
Change Setpoint
ESC
FF
1
SONDER SONDER
SET
Adjust new
setpoint value
press SET to confirm
Programming Menu (parameters)
ESC
FF
1
SONDER SONDER
SET
Find the menu
and enter with SET
ESC
FF
1
SONDER
SET
Set new value
& confirm with SET

5 - Start-up

On power-up, the equipment will start up in Wizard
mode (P3 / 1 flashing), press
most appropriate application and press SET.
1: Multipurpose
2: Frozen
3: Fruits and vegetables
4: Fresh fish
DEFAULT SETTINGS BY APPLICATION (InI)
1 2
2 -18
4 4
20 20
8 0
1 0
0 0
The wizard will configure the parameters of the
equipment for the chosen application (table "Default
settings by application"). The parameters have been
defined for the most common applications, check that
these parameters are adjusted to your installation.
Otherwise, enter programming to modify.
16A
N L
2 3 4 5 6 7 9 10 11 12
230 V~ 50/60Hz
10 sec.
ESC ESC
FF FF
1 1
SONDER
SET SET
Release SET to access
programming
ESC ESC
FF FF
1 1
SONDER
SET SET
Temperature
Indication
ESC ESC
FF FF
1 1
SONDER
SET SET
Find the
parameter and
enter with SET
ESC
FF
1
SONDER
SET
Temperature Indication
or to select the
5: Soft Drinks
6: Bottle racks
7: AC
8: Heat / Incubators
3 4 5 6 7 8
10 0 3 12 21 37
4 4 24 24 96 -
20 20 20 20 0 -
30 8 8 30 99 -
1 1 1 1 1 -
0 0 0 0 0 1
