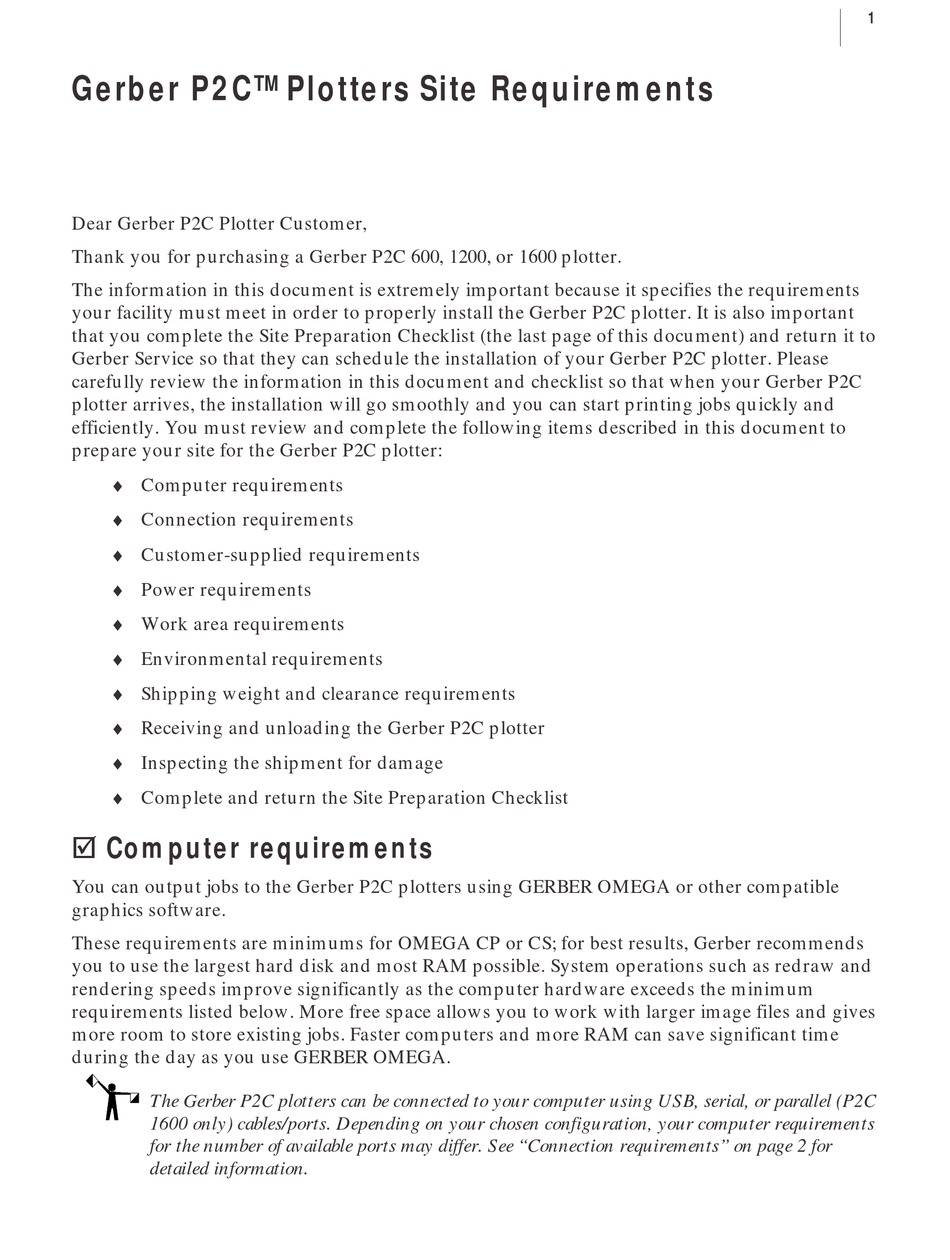

Gerber P2C™ Plotters Site Requirements
Dear Gerber P2C Plotter Customer,
Thank you for purchasing a Gerber P2C 600, 1200, or 1600 plotter.
The information in this document is extremely important because it specifies the requirements
your facility must meet in order to properly install the Gerber P2C plotter. It is also important
that you complete the Site Preparation Checklist (the last page of this document) and return it to
Gerber Service so that they can schedule the installation of your Gerber P2C plotter. Please
carefully review the information in this document and checklist so that when your Gerber P2C
plotter arrives, the installation will go smoothly and you can start printing jobs quickly and
efficiently. You must review and complete the following items described in this document to
prepare your site for the Gerber P2C plotter:
♦ Computer requirements
♦ Connection requirements
♦ Customer-supplied requirements
♦ Power requirements
♦ Work area requirements
♦ Environmental requirements
♦ Shipping weight and clearance requirements
♦ Receiving and unloading the Gerber P2C plotter
♦ Inspecting the shipment for damage
♦ Complete and return the Site Preparation Checklist
! Computer requirements
You can output jobs to the Gerber P2C plotters using GERBER OMEGA or other compatible
graphics software.
These requirements are minimums for OMEGA CP or CS; for best results, Gerber recommends
you to use the largest hard disk and most RAM possible. System operations such as redraw and
rendering speeds improve significantly as the computer hardware exceeds the minimum
requirements listed below. More free space allows you to work with larger image files and gives
more room to store existing jobs. Faster computers and more RAM can save significant time
during the day as you use GERBER OMEGA.
The Gerber P2C plotters can be connected to your computer using USB, serial, or parallel (P2C
1600 only) cables/ports. Depending on your chosen configuration, your computer requirements
for the number of available ports may differ. See "Connection requirements" on page 2 for
detailed information.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gerber P2C 600
Summary of Contents for Gerber P2C 600
- Page 1 The information in this document is extremely important because it specifies the requirements your facility must meet in order to properly install the Gerber P2C plotter. It is also important that you complete the Site Preparation Checklist (the last page of this document) and return it to Gerber Service so that they can schedule the installation of your Gerber P2C plotter.
- Page 2 ♦ 1 or 2 USB ports: 1 required for OMEGA security key and 1 for possible Gerber P2C plotter cable ♦ 1 or 2 serial ports (9 pin): 1 for routers and/or 1 for possible Gerber P2C plotter cable ♦ SVGA color monitor (800 x 600 or higher resolution with more than 256 colors is highly recommended) ♦...
- Page 3 ! ! ! ! Environmental requirements The room in which the Gerber P2C plotter is installed should be relatively clean − the type of environment in which you could paint − without the dust and dirt created by routing or sandblasting.
- Page 4 Corridor and doorway clearance requires a minimum of 30" (76.2 cm). Because of the weight of the Gerber P2C 1600, it must be moved using a pallet jack or forklift, which may require additional clearance requirements. Alternately, you can assemble the Gerber P2C 1200 or 1600 and then wheel it to its final location.
- Page 5 Since the installer is familiar with the Gerber P2C and will unpack and install it for you, they will help you by checking for visible and concealed damage.
- Page 6 In addition, if the Gerber P2C 1200 or 1600 is to be installed on a different floor, please call Gerber Service prior to delivery to alert them of your special circumstances.
- Page 7 • Weight and clearance requirements: I do not have a loading dock, but I have a forklift to take the Gerber P2C 1600 off the carrier’s truck, or I do not have a loading dock or forklift and I have requested lift gate delivery service and...
