Summary of Contents for Abbey swampfox SF1

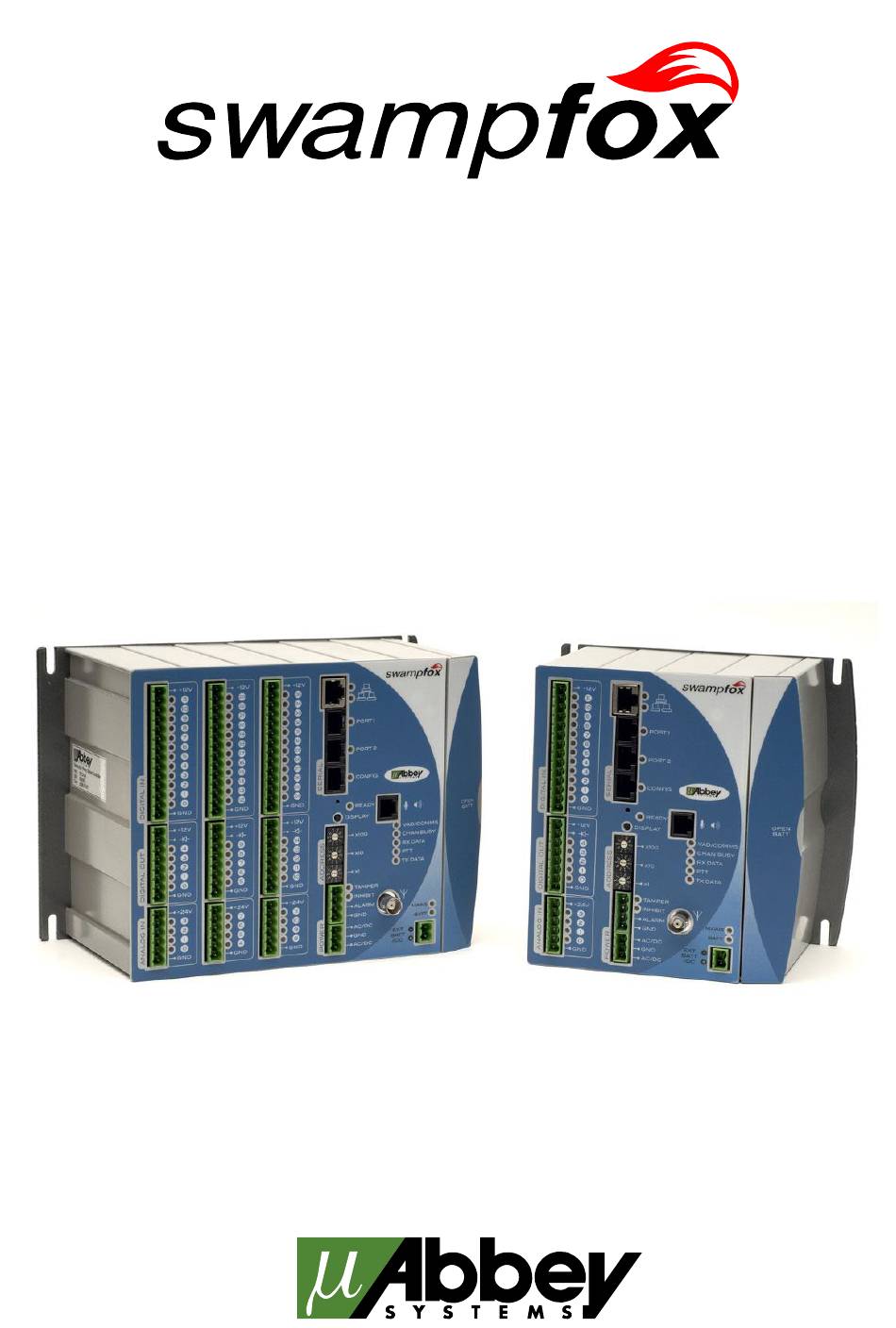

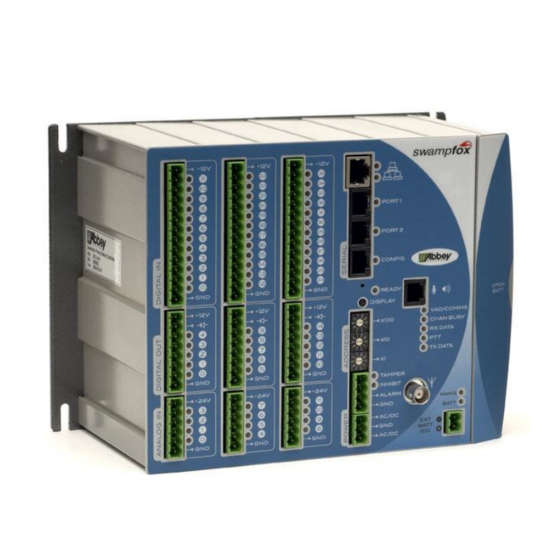

- Page 1 Pump Station Controller Models SF1 and SF3 Installation Guide...
- Page 2 Mounting Mount against a flat surface using four M5 screws. swampfox Screw Spacing Outside Dimensions Model Horizontal (A) Vertical Width (B) Height 153 mm 141 mm 175 mm 168 mm 217 mm 141 mm 240 mm 168 mm Depth is 125mm, plus front clearance for wiring (at least 70mm for antenna jack) Mounting Template Powering...
-
Page 3: Digital Inputs
Digital Inputs General Description Inactive, LED off Active, LED on Maximum Resistance Positive voltage-activated 0~+1.8V +4.5~36.0V ±60V DC 12kΩ to GND D.INs D.INs 200 mA CONTACTS + 12V + 12V (EG. RELAY CONTACTS SWITCHES) CONTACTS (EG. RELAY FIELD CONTACTS SUPPLY SWITCHES) Digital Inputs –... -
Page 4: Digital Outputs
Digital Outputs Open-collector type outputs which close to when activated. Each can switch and carry up to 100mA from a supply of up to +40V DC. D.OUTs D.OUTs 500 mA + 12V + 12V RELAYS RELAYS FIELD SUPPLY Digital Outputs – Internally Powered Digital Outputs –... -
Page 5: Serial Ports
Serial Ports Typically used for… Name Type Socket PORT 1 RS-232 RJ-45 Local connection to PLC, data logger, meter PORT 2 RS-232 RJ-45 Local connection to PLC, data logger, meter CONFIG RS-232 RJ-45 Laptop, Analog output module Name Connector pins 2 and 3 are not connected on PORT 1 sf... - Page 6 Speaker / Microphone Connections A suitable Speaker / Microphone connection is provided on units with an internal radio for monitoring and testing the radio channel. Pin Name Speaker Microphone RJ12 Speaker Mic Pins Communication Indicators indicators show communication between and the Telemetry COMMS swampfox Master.
- Page 7 Mains and Battery LEDs ’s internal battery charger charges the internal battery, or an external swampfox 12V sealed lead acid battery (6Ah or more) connected to the EXT BATT/DC ’s connector. While power is present, the indicators show MAINS BATT swampfox state: Mains LED...
- Page 8 Wellington, New Zealand Phone +64-4-385-6611 Fax +64-4-3856848 Document Number IG-619-2.2-2015-Mar Products Covered SF1 and SF3 (all variants) Revision Number Revision date 15 March 2015 swampfox and the logo are trademarks of Abbey Systems Ltd, registered with the U.S. Patent and Trademark Office.
