ESYLUX EST 10-13 Manual

GB
ENERGY-SAVING FLOODLIGHTS
GB ENERGY-SAVING FLOODLIGHTS
Congratulations on your purchase of this high-quality ESYLUX product.
To ensure proper operation, please read these user instructions carefully and keep them for
future reference.

SAFETY INSTRUCTIONS

CAUTION: Work on the 230 V power system must be carried out by authorised
personnel only with due regard to the applicable installation regulations. Switch off the
power supply before installing the system.
Use this product only as intended (as described in the user instructions). Changes or
modifications to the product or painting it will result in loss of warranty. You should
check the device for damage immediately after unpacking it. If there is any
damage, you should not install the device under any circumstances. If you suspect
that safe operation of the device cannot be guaranteed, you should turn the device
off immediately and make sure that it cannot be operated unintentionally.
2 • DESCRIPTION
ESYLUS EST are energy efficient floodlights with different wattage and installation
options. Bulbs are not supplied.

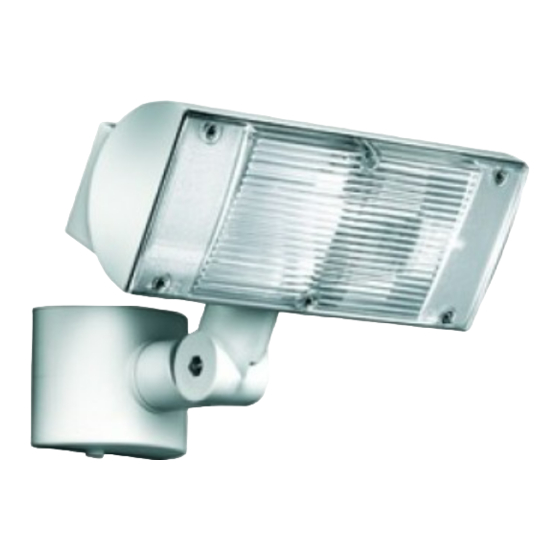

ESYLUX EST 10 - 13, EST 18, EST 26 and EST 18/2 are single or double bulb wall
and ceiling floodlights. They allow safe and economical lighting of, for example,
house and basement entrances, drives to property or yards, carports, garages and
parking spaces.
ESYLUX EST 18 WAS, EST 26 WAS and EST 18/2 WAS are single or double bulb
floodlight heads that can only be used with wall brackets that are ordered
separately. They allow bright, maximum coverage, economical lighting of, for
example, advertising panels, warnings and company and building signs.
ESYLUX EST 10 - 13 SP, EST 18 SP and EST 26 SP are one bulb ground spike
halogen lights with 2,5 m H05RN-F rubber cable and an attached connection plug,
depending on the country. They allow atmospheric, practical and economical
lighting of, for example, garden systems, paths, drives and warning signs.
NB: These lights (floodlights) are approved for use in a max. ambient temperature of
Ta = 25 °C, as per DIN EN 60598. This provision must be observed for proper use of
these lights.
• EST 10 - 13, EST 18, EST 26
•
• EST 18/2
•
• EST 18 WAS, EST 26 WAS,
•
EST 18/2 WAS
• EST 10 - 13 SP, EST 18 SP,
•
EST 26 SP
www.esylux.com
FIG. 1
1.1
Ø 5 mm
90 mm
FIG. 2 FIG. 3
FIG. 5
5.1
1
FIG. 6 FIG. 7
7.1
FIG. 8
FIG. 10
FIG. 11
1.2
Ø 4 mm
Ø 6,5 mm
120 mm
Ø 4 mm
FIG. 4
5.2
2
7.2
FIG. 9
1
