DT Research SA1350 Basic Operation Manual

SA1350/ DT135D

SPECIFICATIONS

Model SA1350
System
CPU
GPU
RAM
Storage
Microsoft® Windows® Embedded
Operating System
Standard 7
Resolution
Network Interface
10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n (optional)
I/O Ports
DVI
DisplayPort++
Audio Jack
3.5mm phone jack x 2
USB Ports
Serial/ COM
Ethernet
RJ45 connector for Ethernet x 1
DC-in
1; 1.7 mm DC in
Smart Card Reader
Mechanical and Environmental
Fan/Fanless
AC/DC Adapter
AC/DC Adapter
Regulatory
Power Consumption
Enclosure
Dimensions
(H x W x D)
Weight
Regulatory
VESA Mounting
Bracket
Temperature
Humidity
* Specifications subject to change without notice.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2012, DT Research, Inc. All Rights Reserved. DT Research is a registered trademark of DT Research, Inc.
BOG010213 Aotsu135ENG
signage dtri com
4
ENGLISH
DT135D
AMD Fusion Dual Core, 1.6GHz
AMD Hudson
2GB
8GB, 32GB, or 64GB Flash
Linux, Microsoft® Windows® XP
Embedded or Embedded Standard 7
Up to 1920 x 1080
1 1
1 1
3.5mm phone jack x 2
4 (2.0) 4 (2.0)
2 2
RJ45 connector for Ethernet x 1
1; 1.7 mm DC in
N/A Optional; Ominkey smart card reader
Fanless
Input: 100-240V AC; Output: 19V DC
UL, CE, PSE
Max: 30.55W (47.13VA); Idle: 5.32W (8.21VA)
Aluminum + steel
2.16 x 5.82 x 6.5 in/ 55 x 148 x 165.1 mm
2.9 lbs/ 1316 g
FCC Class B, CE, C-Tick, RoHS compliant
Included
Operation: 0°C – 40°C; Storage: -20°C – 60°C
0% – 90% non-condensing
http://www.dtresearch.com
P/N: 28-610-135010 OPERATION GUIDE
Digital Signage Appliance
Embedded Controller/ System
SA1350/ DT135D
BASIC OPERATION GUIDE
ENGLISH

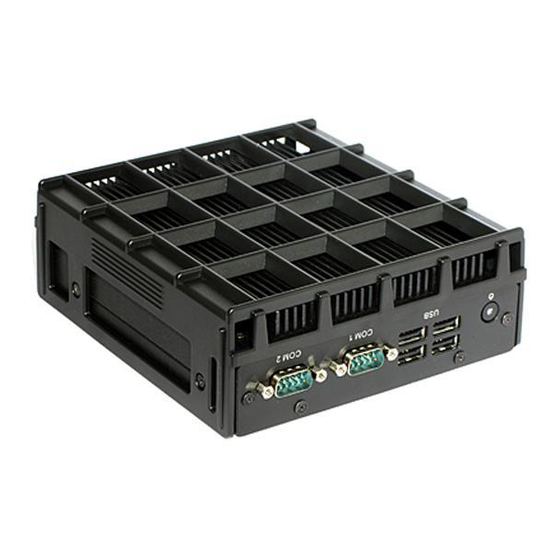

INTRODUCTION

Thank you for acquiring the latest addition to DT Research ' s product line - the SA1350/
DT135D, featuring compact, robust designs and powered by the high-performance, energy-
efficient AMD Fusion processor. Combined with DT Research ' s application-specific software,
these products provide digital signage, cloud computing, or embedded controller computing
solutions. These products also support major embedded operating systems such as Linux,
Microsoft® Windows® XP Embedded, or Windows® Embedded Standard 7 for a variety of
computing needs.

Package Contents

One SA1350/ DT135D
1
2
AC/DC Power Adapter
3
VESA-compliant Mounting Bracket
4
Quick Start Guide
5 Basic Operation Guide
6 Software and User Guide (SA1350 only)
1 2
Note: The actual package contents may vary depending on the product acquired.
3
