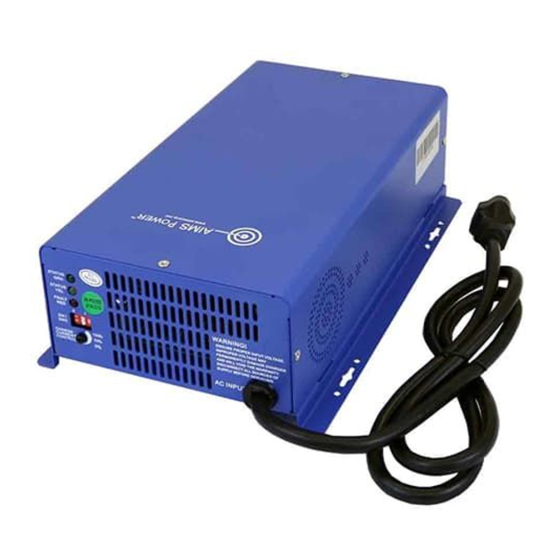

Ac converter / battery charger

Advertisement

Quick Links

AC CONVERTER / BATTERY CHARGER
User's Manual
MODEL #: CON120AC36/48VDC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CON120AC36/48VDC and is the answer not in the manual?

Questions and answers

Summary of Contents for AIMS Power CON120AC36/48VDC

  • Page 1 AC CONVERTER / BATTERY CHARGER User’s Manual MODEL #: CON120AC36/48VDC...
  • Page 2: Table Of Contents

    Contents INTRODUCTION................................3 Important Safety Instructions........................... 3 1. General Description............................5 1.1 Features................................5 2. Installation and Operation............................ 6 2.1 Front Panel Description..........................6 2.2 Rear Panel Description..........................7 2.3 DC Output Battery Connection......................... 8 2.4 ESB( Optional)..............................9 Optional 2.5 AC Input Connection...........................9 2.6 Parallel Connection.............................9 3.
  • Page 3: Introduction

    INTRODUCTION INTRODUCTION You have purchased the AIMS Power 36V/48V AC Converter and Battery Charger. This product will bring you reliable power when used and maintained properly. This manual provides safety guidelines, detailed planning and setup information, installation procedures, as well as information about operating and troubleshooting the unit.
  • Page 4 eyes.  Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery.  If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood eye with running cold water for at least 10 minutes and get medical attention immediately.
  • Page 5: General Description

    70Vac to 145Vac to accommodate unstable inputs. The unit also includes a selectable 36Vdc or 48Vdc output. The AIMS Power AC Converter / Battery Charger provides the flexibility for almost any application and the large charging capacity of 25 amps gets the job done quickly.
  • Page 6: Installation And Operation

    Installation Operation Installation Operation Front Panel escription Front Panel escription Figure 1 Front Panel Main Switch ON: Once the unit has been properly installed and batteries are connected,flip the switch to “ON”, the unit will turn on automatically, and works according to the input AC source’s status. OFF:Flip the switch to “OFF”, the unit will turn off.
  • Page 7: Rear Panel Description

    Rear anel escription Rear anel escription Figure 2 Rear Panel LED Indicator The unit has green, yellow and red LEDs to indicate the operating status of the AC converter. Table – 1: LED status indicator Table – Conditions Red(Fault RED) Yellow(Status YEL) Green(Status GRN) Mode select fault...
  • Page 8: Dc Output Battery Connection

    CAUTION Before connecting, power off the unit and make sure the AC cord is not plugged into an AC outlet. utput attery onnection – Battery should connected first then power utput attery onnection – Battery should connected first then power applied.
  • Page 9: Esb( Optional)

    Figure 2: Series battery connection 3) Parallel battery connection: When using multiple batteries in parallel, each battery’s voltage must be equal to the voltage of unit’s nominal input voltage. Figure 3: Parallel battery connection 2.4 AC Input Connection Use provided AC cable. Connect to a breaker minimum of 10A. AC voltage range of 70Vac to 145Vac. 2 2 .
  • Page 10: Specifications

    If any other situations occur that are not listed above, call AIMS Power immediately. Specifications Specifications Input Input 96-145VAC full performance Input Voltage 70-96VAC automatically derate to 50% of full load current Frequency 40Hz to 70Hz Nominal Input Current at Rated <9Aac...
  • Page 11 UL458, CSA 22.2#107.1 Safety Mechanical Mechanical Dimension (D x W x H) mm 10.25” * 6.75” * 3.25” Unit Weight 6.5 lb Gross Weight 7 lb AIMS Power 9550 Gateway Drive Reno, NV 89511 www.aimscorp.net 775-359-6703 sales@aimscorp.net - 11 -...
  • Page 12 614-07592-00 - 12 -...
