Techly I-LIGHT-SNR11TY Quick Start Manual

INFRARED MOTION
SENSOR
Infrared motIon sensor
attentIon! Read the user manual completely and
carefully for proper installation and use. Keep this user
manual for future clarification.
safety InstructIons
AT T E N T I O N
D A N G E R
attentIon! danGer! Risk of life by electric shock! Avoid
contacting mains voltages! Turn off the power of all circuits before
working on the product!
• This product is not a toy and is not meant for children, because it
contains small parts which can be swallowed and can injure when
used inappropriately!
• Do not use any damaged products or parts.
• Remove the packing materials because they may be dangerous
for children. There is a risk of incidentals swallowing and inhalation
of insulating material.
• Do not modify or change the product or its accessories: this will
have effect on the warranty
• If defects, mechanical damages, disturbances or other problems
occur, which are not solvable with this manual, take the device out
of work immediately and consult your dealer.
• This motion sensor is not suitable for use as component of an
alarm system. It might trigger false alarms if the installation place
has been chosen unfavourably.
Intended use
This product is made for home use and it is not permitted using
this product in other ways than descripted in this manual. Use
the product only in dry interior rooms. If not attending to these
regulations and notes on safety, it might cause fatal accidents,
injuries and damages to persons and property. The manufacturer is
not liable for damages to persons or property caused by improper
installation, operation or maintenance, not described in this manual.
descrIptIon and functIon

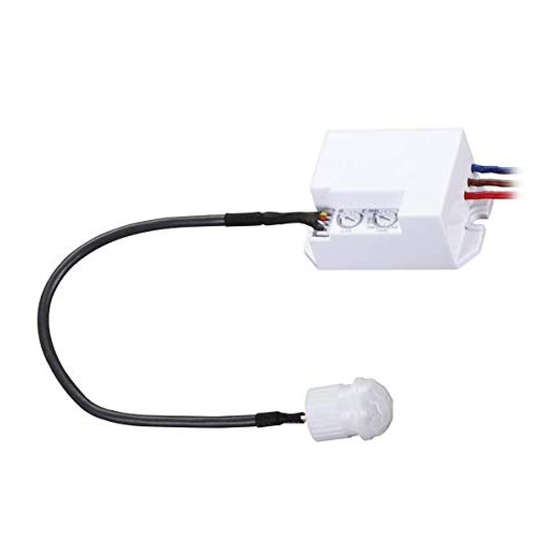

This product is an infrared motion sensor for indoors and is specified
as installation material. It reacts to heat radiation (infrared radiation)
of moving objects that enter the detection area of the sensor, eg.
people and animals, etc. The sensor must "see" the area which is
monitored. Thermal radiation propagates in a straight line, but is
stopped by glass or other solid objects.
functIon:
✔ can identify day and night: The consumer can adjust working
state in different ambient light. It can work in the daytime and at
night when it is adjusted on the "sun" position (max). It can work
in the ambient light less than 3LUX when it is adjusted on the "3"
position (min).
✔ sens adjustable: It can be adjusted according to using location.
The detection distance of wall mounting could be 8m and ceiling
mounting could be 6m.
attentIon! Only skilled
electricians may assemble
and disassemble the
housing of the product.
✔ time-delay is added continually: When it receives the second
induction signals within the first induction, it will restart to time
from the moment.
Good Sensitivity
specIfIcatIon
power source
detection range
power frequency
detection distance
ambient Light
time delay
Working temperature
Working Humidity
rated Load
power consumption
Installation Height
detection moving speed
InstaLLatIon adVIce
as the detector responds to changes in temperature, avoid the
following situations:
✔ Avoid pointing the detector towards objects with highly reflective
surfaces, such as mirrors etc.
✔ Avoid mounting the detector near heat sources, such as heating
vents, air conditioning units, light etc.
✔ Avoid pointing the detector towards objects that may move in the
wind, such as curtains, tall plants etc
AT T E N T I O N
D A N G E R
power source. • Cover or shied any adjacent live components. •
Ensure device cannot be switched on. • Check power supply is
disconnected.
WWW.TECHLY.COM
EN - 1
Poor Sensitivity
220-240V/AC
120°/360°
50Hz
wall: Max.8m (<24°C)
ceiling: Max. 6m (<24°C)
<3-2000LUX (adjustable)
Min.10sec±3sec
Max.8min±2min
-20~+40°C
<93%RH
Max.800W 200W
approx 0.5W
1.8-2.5m (wall mounting)
2.2-4m (ceiling mounting)
0.6-1.5m/s
• Warning. Danger of death
through electric shock! • Must
be installed by professional
electrician. • Disconnect
