Summary of Contents for RubyTech VS-820S

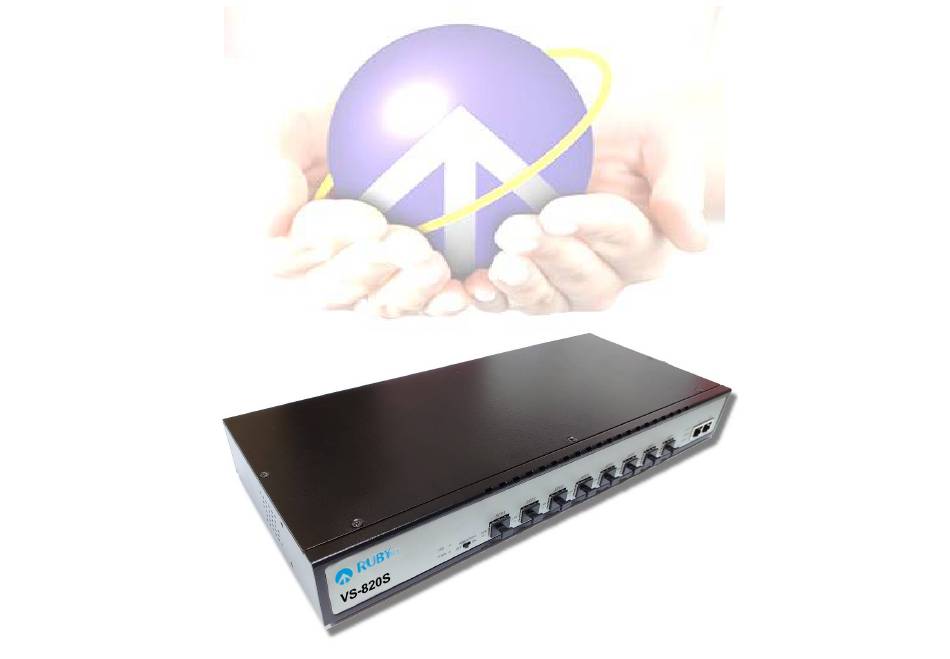

- Page 1 8x SFP Slots with 2 Giga unmanaged Ethernet Switch USER’s MANUAL...
-
Page 2: Copyright
RubyTech Deutschland GmbH does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance,... -
Page 3: Foreword
VS-820S's SFP slots are separated to each other, and build in two internal fans to prevent SFP module overheat issue. With high performance and easy installation, VS-820S can be utilized in ISP network solution for FTTdp(Fiber to the distribution point), FTTC (Fiber to the Curb) and FTTB (Fiber to the Building), also for SOHO application. -
Page 4: Safety Warnings
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Safety Warnings For your safety, be sure to read and follow all warning notices and instructions before using the device. DO NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. - Page 5 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch DO NOT place items on the device. DO NOT use the device for outdoor applications, and make sure all the connections are indoors. There may be a remote risk of electric shock from lightning.
-
Page 6: Table Of Contents
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Table of Contents Copyright ................................2 Foreword ................................3 Safety Warnings ..............................4 Chapter 1. Unpacking Information ........................7 1.1 Check List ....................................7 Chapter 2. Installing the Device ........................8 2.1 Hardware Installation .................................8... -
Page 7: Chapter 1. Unpacking Information
3. Please make sure power source is compliant with required specification. 4. VS-820S is a commercial-grade product. Do not use in industrial-grade applications. 5. Please look for the QR code on the bottom of the product, the user can launch the QR code scanning program to... -
Page 8: Chapter 2. Installing The Device
2.1 Hardware Installation This chapter describes how to install the device and establish the network connections. The VS-820S may be installed on any level surface (e.g. a table or shelf, 19 inch rack or wall mounting). However, please take note of the following minimum site requirements before one begin. -
Page 9: Connecting The Ethernet Of Rj-45 Ports
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch 2.3 Connecting the Ethernet of RJ-45 Ports VS-820S has two Ethernet ports which support connection to Ethernet operation. The devices attached to these ports must support auto-negotiation or 10Base-T, 100Base-T or 1000Base-T, and note they don’t support half duplex. Use any of the Ethernet ports to connect to devices such as Monitor system, Server, Backbone switch, or IP gateway. -
Page 10: Application Diagram
Network system, which makes VS-820S meet user’s requirement, and offer you a variety of combination with other networking devices. With 8 SFP slots and suitable SFP transceiver, VS-820S is able to be considered as an IPDSLAM, and would perfectly fit in Fiber / XDSL networking system. -
Page 11: Chapter 3. Hardware Description
Ethernet Switch Hardware Description This section describes the important parts of VS-820S. It features the front panel and rear panel. 3.1 Front Panel: The front panel shown as interface with 8 x SFP Slots, 2 x RJ-45 Connector, Slide switch for Isolation function LED indicators. - Page 12 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Table 3-1 Description of the front interface Reminder: Please use SFP transceiver which is compatible to 1000Base-X SFP slot, otherwise, the connection cannot set up. 3.1.2 Slide switch For setting SFP port isolation mode. To activate isolation function, slide the switch to ON.
-
Page 13: Led Indicators
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch 3.2 LED Indicators The VS-820S has 16 LED indicators. The following Table shows the description. (Table 3-2) Table 3-2 LED Indicators Description and Operation Remark: 1. Except for Fiber SFP transceiver, SFP LED indicator will light up right away when the SFP transceiver is... -
Page 14: Appendix A: Cable Requirements
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Appendix A: Cable Requirements A.1 Ethernet Cable A CAT 5~7 UTP (unshielded twisted pair) cable is typically used to connect the Ethernet device to the Modem. A: 10/100TX cable often consists of four pairs of wires, two of which are used for transmission. The connector at the end of the 10/100TX cable is referred to as a RJ-45 connector and it consists of eight pins. - Page 15 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Figure A-2 Pin Assignments and Wiring for an RJ-45 Straight-Through Cable...
- Page 16 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Figure A-3 Pin Assignments and Wiring for an RJ-45 Crossover Cable...
-
Page 17: Appendix B: Product Specification
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Product Specification Key Features and Benefits: Supports 2 x 10/100/1000BASE-T & auto–MDIX for RJ-45 port Supports 8 x 1.25G SFP Slots Cost effective bridge function for FTTdp/FTTC application ... -
Page 18: Appendix C: Mounting The Switch On A Rack
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Specification:... -
Page 19: Appendix D: Troubleshooting
Cause: Network interface (ex. a network adapter card on the attached device), network cable, or SFP transceiver defective. Solution: Verify if both of the VS-820S (all devices) and attached device are powered on. Be sure the Ethernet cable and fiber optics are plugged into both the switch and corresponding device. - Page 20 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Solution: Please make sure opposite side device setting on full duplex mode, since VS-820S doesn’t support helf duplex mode. If LED jitter it mean both internal chipset without compatible. Power and Cooling Problems If the POWER indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply.
-
Page 21: Appendix E: Compliance And Safety Information
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch Appendix E: Compliance and Safety Information FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC class A rules. - Page 22 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch proper functioning of your equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.
- Page 23 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch FCC Warning This equipment has been tested to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 24 VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch or RoHS 2. RoHS 2 includes a CE-marking directive, with RoHS compliance now being required for CE marking of products. RoHS 2 also added Categories 8 and 9, and has additional compliance recordkeeping requirements.
-
Page 25: Warranty
VS-820S 8 SFP Slots with 2 Giga unmanaged Ethernet Switch The above warranty is in lieu of any other warranty, whether express, implied, or statutory, including but not limited to any warranty of merchantability, fitness for a particular purpose, or any warranty arising out of any proposal, specification, or sample.
