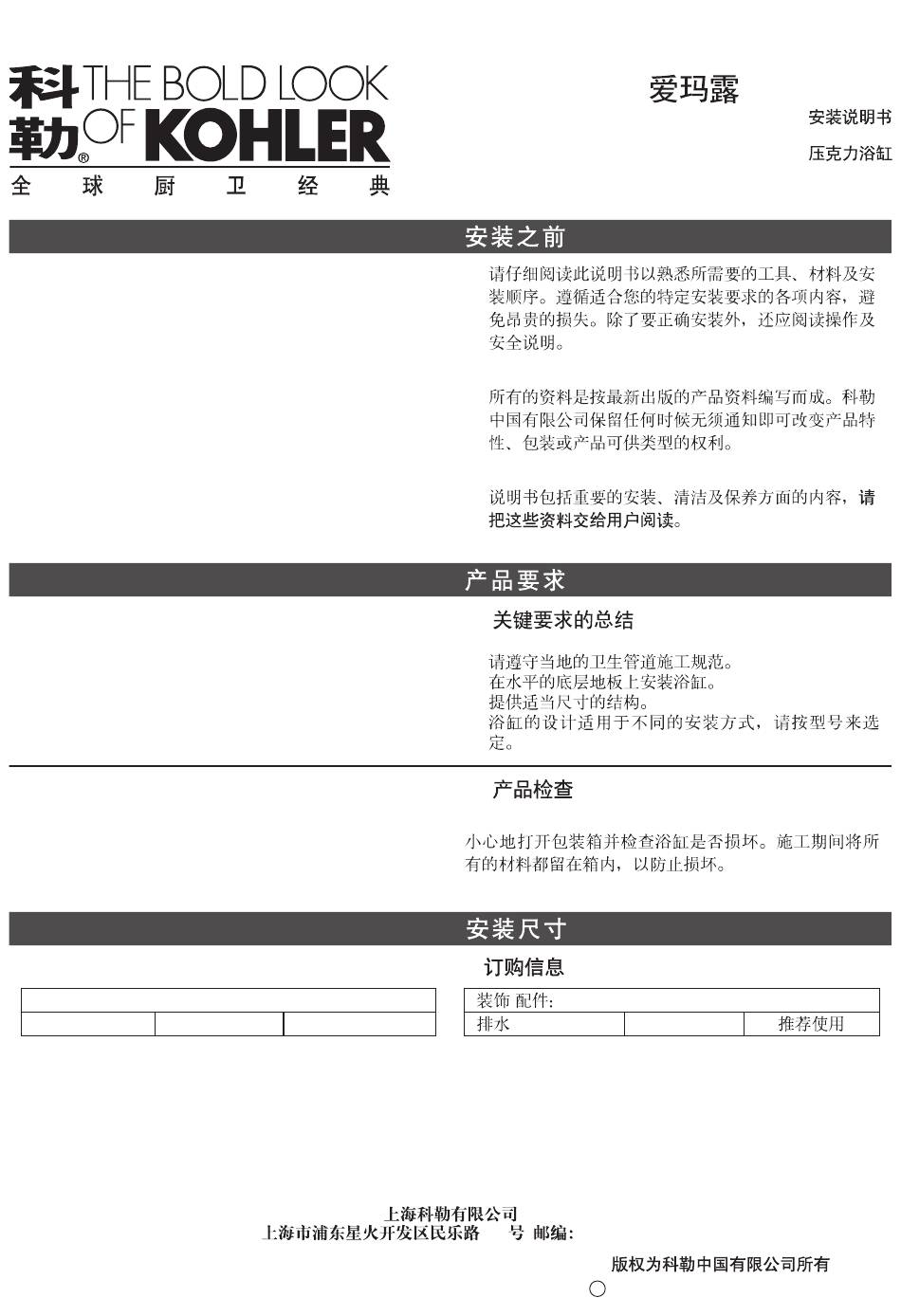

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to
familiarize yourself with the required tools, materials,
and installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
·
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information-please leave these
instructions for the consumer.
PRODUCT REQUIREMENTS
PRODUCT REQUIREMENTS
A. Summary Of Key Requirements
!
Observe all local plumbing codes.
!
Install the unit to a level subfloor.
!
Provide properly-dimensioned framing.
! Baths are designed for a variety of installations,
depending upon the model chosen.
B. Product Inspection
Uncrate and inspect bath for damage. Leave all
materials in carton during construction to prevent
damage.
A.Ordering Information:
Accessories/Hardware:
Drain
17295T-CP
1036303-T01-B
·
·
·
·
·
·
·
A.
!
!
!
!
B.
A.
Optional
368
1
INSTALLATION INSTRUCTIONS
:
/
17295T-CP
201419
ã
Copyright Kohler China Ltd., 2004
C
EMERALD
ACRYLIC BATH
K-18778T
, 2004
Advertisement
Table of Contents
Related Manuals for Kohler K-18778T
Summary of Contents for Kohler K-18778T
- Page 1 · · All information is based on the latest product information available at the time of publication. Kohler China Ltd. reserves the right to make · changes in product characteristics, packaging, or · availability at any time without notice.
- Page 2 B.Product Information: Top area Weight Fixture*: Basin area Bathing Well 820x1160mm 1000x1400mm 31kg 1000x1400mm 31kg 820x1160mm Water depth Capacity 350mm 286L To Overflow 350mm * Approximate measurements for comparison only. Roughing-in: UNIT: mm 1305 1305 1419 52(H=75) Diameter of drain hole: Diameter of overflow hole: INSTALLATION REQUIREMENTS INSTALLATION REQUIREMENTS...
- Page 3 SITE REQUIREMENTS SITE REQUIREMENTS A. Old Bath Removal Disconnect the drain at the trap. Slip Remove the old wall material. boards under the old bath feet to protect the floor, and slide the Old Bath old bath out of the recess as Floor Protection Boards illustrated.
- Page 4 INSTALL BATH 1) Your new Hydrotherapy Massage Spa has been manufactured to the highest possible standards, it has been factory tested and approved. 2a) Locate bath in proposed position. 1305 The protective film originally covering your whirlpool has been removed to fit its equipment, therefore, carefully protect its surface during installation.
- Page 5 B. Bath Rim Support Drop-In Models: CAUTION: Risk of product damage. Do not support the weight of the bath by the rim. After the bath is securely positioned and bath rim well 7). : supported, please complete step 7). Install the plumbing and thoroughly check the unit for leaks.
- Page 6 E. Connect power supply (10 AMPS supply) to motor. This should be a separate line, direct from the (RCD) switchboard and should be protected by an earth leakage circuit breaker(RCD). To make this unit "child proof" it is recommended to connect the mains power supply using a PDL 681 VWP PDL681 VMP Switch mounted beside the light switch.
- Page 7 CLEAN-UP AFTER INSTALLATION When cleaning up after installation, do not use abrasive cleansers as they may scratch and dull the surface. Use warm water and liquid, non-abrasive detergent to clean the surface. Stubborn stains, paint, or tar can be removed with mineral spirits.
- Page 8 This product is warranted for one year from date of purchase. Kohler China will be responsible for any problems caused by manufacturing defects provided with the invoice. Kohler China will, at its election, repair, replace or make appropriate adjustment where Kohler China inspection discloses any such defects occurring in normal usage within one year after purchase.
