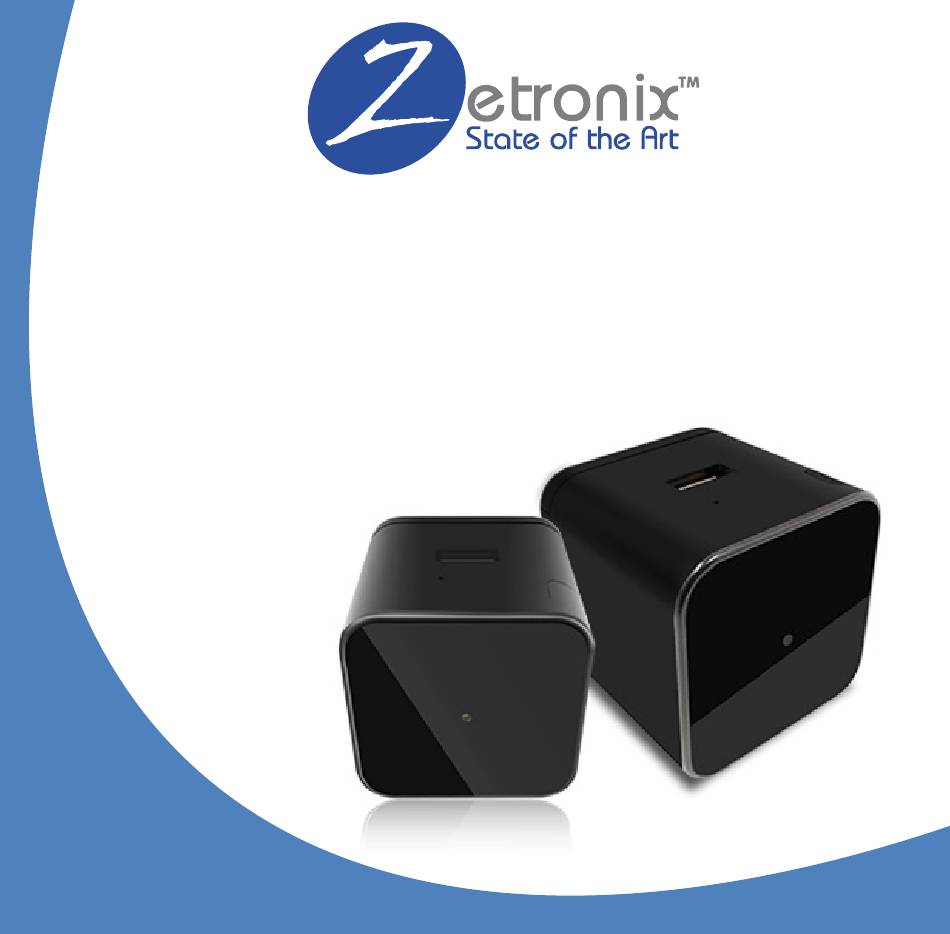

- Page 1 KOIOS PRO WIFIPRO – USER MANUAL...
- Page 2 IN THE BOX ❷ ❶ ❸ ❹ ❶ Koios Pro Nanny Cam ❹ Card Reader ❷ User Manual ❸ Reset Pin...
- Page 3 DIAGRAM ① ② ③ ④ ⑤ ① Camera ② Night Vision LED ③ Reset Hole/ Power Indicator ④ USB Port ⑤ MicroSD Card Slot...
- Page 4 OVERVIEW The Koios Pro is a WIFI security camera concealed inside a USB Charger. Using this device for any illegal activities is prohibited and will void your warranty. This device is equipped with a 600mAh USB Port. Built-in 16 IR LEDs will automatically turn on in dark conditions.
- Page 5 QUICK SETUP GUIDE Download Free App TinyCam from App Store or Google Play. Scan this QR code with your phone to download the TinyCam app.
- Page 6 Power Up Please plug the device into an active outlet and wait 1 min. The power indicator LED will be solid green when powered up. Connect to Camera’s Wi-Fi Open your smartphone setting, search and connect to the Wi-Fi wireless signal with the name starting with "HCAM-“ Wait for the Wi-Fi to connect, and the phone’s status bar to appear showing the Wi-Fi symbol:...
- Page 7 Add the Camera in the App Enter the app and hit the search icon to search for the camera device. On the next screen it should list at least one device. Hit the “Add” text to add it. Hint: Please aloud “TinyCam” to access your location while you are using the app.
- Page 8 You will be asked to change password, the default or “Old Password” is 888888. Choose and confirm your new password. Setup Remote Access From the main screen hit the setting icon on the listed camera, and then choose WiFi Config on the next menu.
- Page 9 Click on SSID to pick your Local WiFi from the list then enter you WiFi password. If you don’t know this information, please check with your internet service provider. Open your smartphone setting again, search and re- connect to your local Wi-Fi wireless. Wait for the WiFi Symbol to turn blue again: Restart the app and you should now have remote access and video stream setup.
- Page 10 GETTING STARTED APP INTRODUCTION Recorded Media Stored in Phone Search new Camera Add network camera Play live feed Camera Settings Does Not Apply to This Camera Alert Messages Recorded Media Stored in Micro SD...
-
Page 11: Getting Started
GETTING STARTED Video Recording Resolution Alerts notification Full Screen Take Pictures Listen Record Videos... - Page 12 GETTING STARTED ① Reset Password ② Share camera with by QR code. ③ Wi-Fi connection --------------- ① -----configurations. ② ④ Alert Motion activation ---- -----sensitivity settings. ③ ④ ⑤ Micro SD Card Record --------- -----Configurations. ⑤ ⑥ Change password: Set camera ⑥...
- Page 13 GETTING STARTED LOCAL RECORDING SETUP Local recording allows for recording media to a MicroSD card installed in the Koios Pro. First, please install a MicroSD card in the card slot ⑤ on the back of the device. Go to settings from the menu camera, and then select...
- Page 14 GETTING STARTED Checkmark the Full time recording to continually record video to the memory card. You can also set the video file segment length under Recording length. To record on motion activation only, checkmark Alarm recording instead. Anytime motion is detected you will receive an alert on your phone, a snapshot will be taken and video will record for the specified Recording...
-
Page 15: Specifications
Specifications: GETTING STARTED Resolution 1 Mega CMOS Video pixel in phone Max 1920*1080 Video pixel in card 1080*720 Frame Rate 25FPS Compressed format H.264 Viewing angle 120 Degree Type of memory card TF card>=Class 4/10 and HC marked Maximum capacity of memory card 128GB PC operation system Windows 7, 8 / Mac OS X... - Page 16 GETTING STARTED TROUBLESHOOTING Most issues can be solved by resetting the device and the Wi-Fi: 1. Unplug unit from the AC charger, wait 30 seconds and then plug it back in. Using a pin or paper clip, press and hold the reset switch ③ for 10 seconds.
- Page 17 GETTING STARTED The live video screen shows up black and a searching circle spins in center but nothing ever displays. If camera’s Wi-Fi speed is slow, please wait 10-30 seconds for live video appear; Select top right 480p resolution to check for lower stream rate. Live video jitters or unclear.
- Page 18 GETTING STARTED Still Have Questions? For additional assistance contact Zetronix Tech Support (617) 861-8418 Phone support@zetronix.com Email help.zetronix.com On the web...
- Page 19 GETTING STARTED...
