- Page 1 VEHICLE TESTER EXXOTEST MX100 For testing lines and voltage drops (12V) User’ guide Document n° 00305023-v1...
- Page 2 WARNING AND GENERAL PRECAUTIONS READ BEFORE USING THE MX100 To ensure that the MX100 is used in safe conditions and to avoid damaging the device: Only use the MX100 in compliance with the provisions of this manual to avoid hampering its built-in protection devices.
-
Page 3: Voltmeter Mode
VOLTMETER MODE U Carry out the following operations: 1 Connect the power clamps on the device to the battery terminals, the device will turn on and indicate the battery voltage on the display 2 Switch the device to Voltmeter mode by pressing (This mode is selected by default when starting the device) 3 Take measurements using the test lead, with the device connected to the vehicle earth, and using this lead alone. - Page 4 DIFFERENTIAL VOLTMETER MODE U Carry out the following operations: 1 Connect the power clamps on the device to the battery terminals, the device will turn on and indicate the battery voltage on the display 2 Switch the device to Differential voltmeter mode by pressing 3 Take measurements using the test lead, the device will automatically display the voltage difference between the point measured and the reference value.
- Page 5 MODE AMPEREMETRE U Connect the power clamps on the device to the battery terminals, the device will turn on and indicate the battery voltage on the display Switch the device to Ammeter mode by pressing 3 Take measurements using an ammeter clamp (not supplied), check that the clamp is on and at the appropriate rating (refer to the manufacturer manual), read the result on the display 222.
- Page 6 AUTOMATIC TEST LINE MODE This mode can be used to locate an unsatisfactory connection. This mode is used if a difference in potential is detected between one of the battery terminals and a point which should be connected. In this case, the device calculates the resistance between the point measured and the reference (battery).
- Page 7 WHICH MODE SHOULD BE USED? Here are a few examples of measurements taken with the EXXOTEST MX100: Measuring a probe voltage Measuring a supply voltage Measuring an "earth" Measuring a voltage drop triggered by a ...
- Page 8 INTERPRETING POLARITY LEDS INDICATIONS FOR MEASURING POLARITY MODES. Voltage measured using the test lead: 100% of battery voltage If the red LED is on: Measurements are taken with reference to the battery plus terminal. 50% of battery voltage If the green LED is on: Measurements are taken with reference to the battery earth.
- Page 9 CHARTS FOR RATIOS BETWEEN VOLTAGE, CURRENT, LINE RESISTENCE AND POWER OUTPUT Pertes en Puissance 20 25 30 40 50 0,3 0,4 0,5 V/Volts Chute de tension Pertes en puissance Power losses Courant Current Chute de tension Voltage drop Volts Volts...
- Page 10 Example: With a 14V battery, a voltage drop of 1V corresponds to a 15% loss in power. i.e. R=0.2Ω to 5A or R=0.1Ω to 10A CHARACTERISTICS These technical characteristics imply: a one-year calibration cycle an operating temperature of 2 - 40°C ...
- Page 11 Maximum electrical specifications From +9 to +30V (protection against overvoltage and Power voltage polarity reversal) Consumption 0.03A (max. 0.15A for a resistance measurement) Out-of-tolerance Display " --- " Operating T° from +2°C to +50°C Storage T° from -20°C to +60°C...
- Page 12 Declares that the following product: Brand Model Description EXXOTEST MX100 Vehicle tester has been manufactured in accordance with the requirements of the European directive: EMC Directive 2004/108/EC - 15/12/2004 and satisfies the requirements of the following standard: NF EN 61326-1 dated 07/1997 +A1 of 10/1998 +A2 of 09/2001 Electrical measurement, control and laboratory equipment, EMC-related requirements.

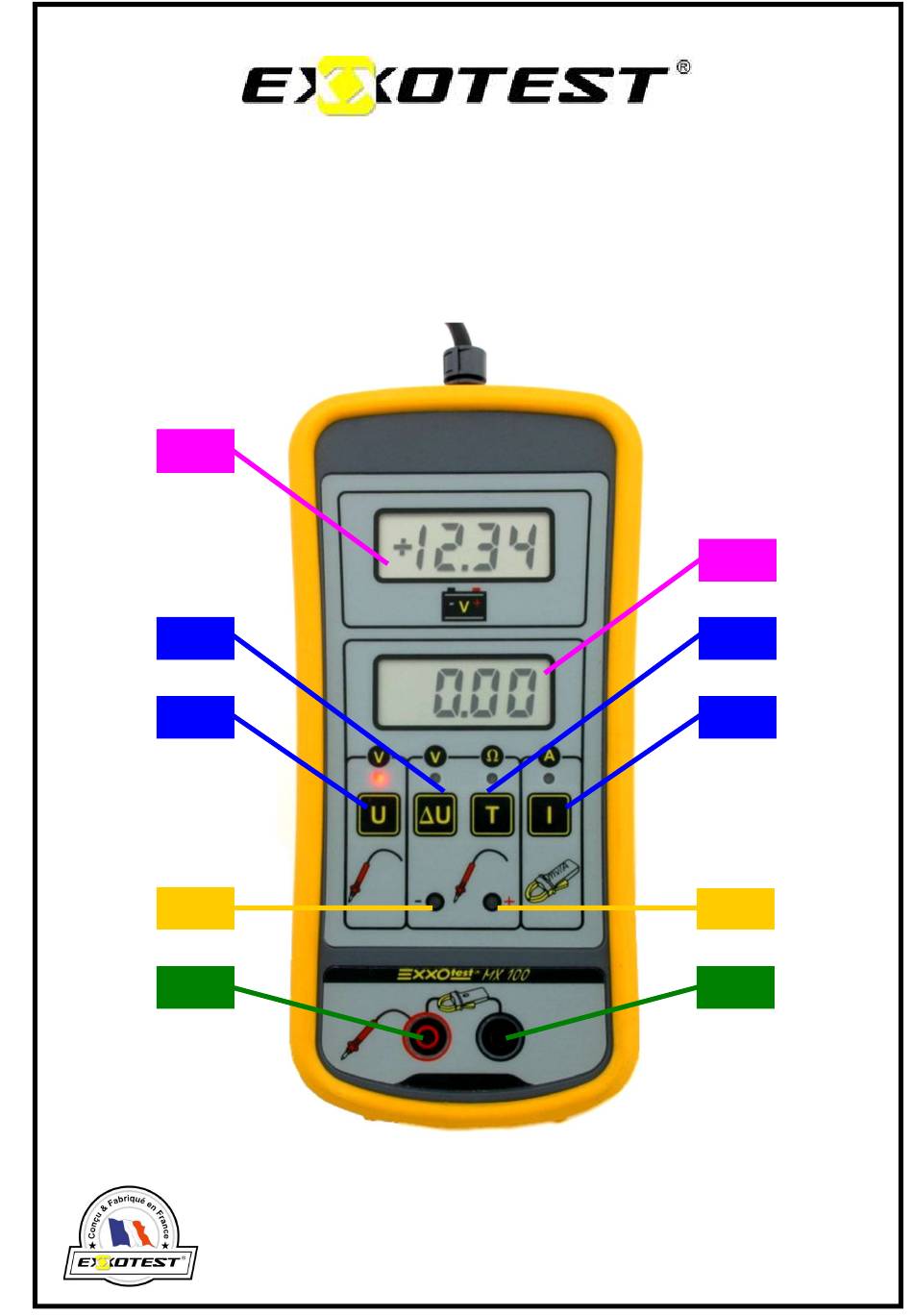

- Page 13 DESCRIPTION Permanent display of reference voltage: Battery voltage Display of the measurement depending on the Selected mode Differential voltmeter mode selector Displays the voltage difference with reference to the positive or negative battery terminal (voltage drop) Automatic line test mode selector Displays the resistance of a line with reference to the battery terminals (positive or negative) Voltmeter mode selector...
