Franke PF5200 Installation Manual

STANDARD MAINTENANCE AND TROUBLESHOOTING
REPLACING THE CARTRIDGE
1. Shut o the cold water supply to the faucet.
2. Turn on the faucet brie y to relieve any pressure inside the faucet.
3. Move the faucet handle to the " OFF" position.
4. Remove pin handle C from the lever handle.
5. Remove the pin handle set screw B using an allen key.
6. Pull the lever handle A from the faucet body .
7. Use 20 mm socket to unscrew cartridge D from faucet body
and replace with new cartridge , tighten new ceramic cartridge,
DO NOT exceed 177 in-lbs of torque.
8. Re-assemble faucet in reverse order.
9. Test for leakage.
GENERAL MAINTENANCE
Clean aerator periodically for any buildup .
Do not use harsh detergents, solvents, chemical agents, metallic sponges,
etc. that could harm the surface and damage the nish.
Clean only with a soft sponge and soapy water.

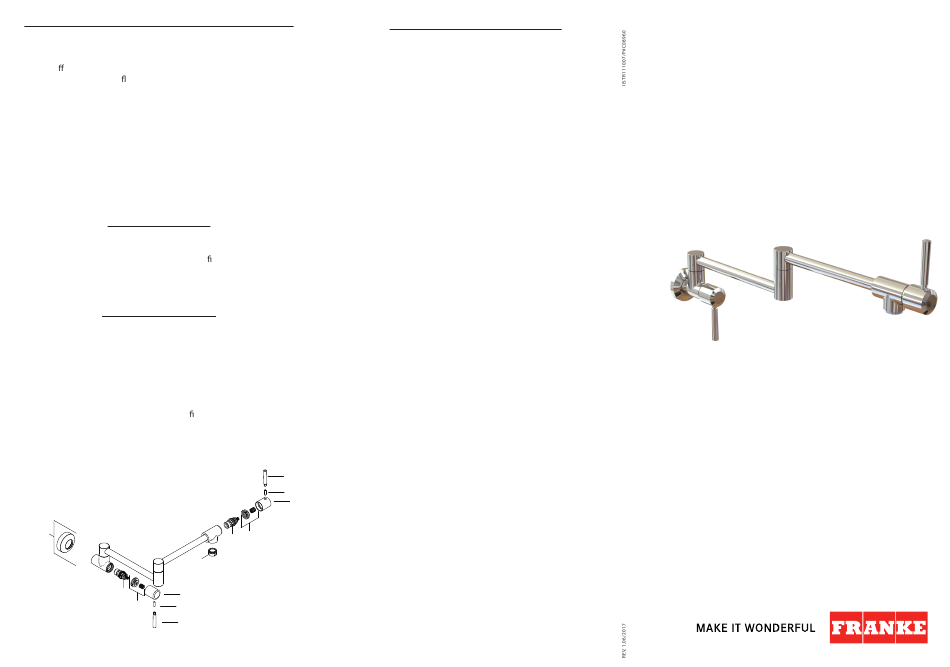

SPARE / REPLACEMENT LIST
A+B+C+G. Handle assembly F5217*
. D Cartridge F4315
E. Aerator F4316*
F. Escutcheon F5218*
*Must specify nish
CH chrome
SN satin nickel
PN polished nickel
MB matt black
F
E
D A
G
B
C
LIMITED LIFETIME WARRANTY
Franke Kitchen Systems,LLC extends the following warranty to
the original purchaser of its faucets effective January 1, 2003.
All faucets installed in a private residence will carry a limited lifetime
warranty on all mechanical parts to be free of manufacturing defects
in material and workmanship under normal usage. All chrome finishes
carry a limited lifetime warranty; all other finishes are warranted for
five (5) years form the original date of purchase.
Marine and Outdoor Installation
warranted for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the product
has been installed in accordance with our installation instructions,
used as recommended and in a normal residential application. In the
event of a warranty claim, the owner will be required to provide proof
of purchase - save sales receipt. This warranty covers all components
which make the product operational. Franke, at its option, may repair
or replace the product or components necessary to restore the pro-
duct to good working condition. Franke reserves the right to inspect
the installation prior to the actual replacement of the product or com-
ponent part. This warranty does not cover misuse or abuse, acciden-
tal damages, scuffs or scratches, improper installation, abnormal
usage, negligence or damage caused by improper maintenance or
cleaning. Normal wear of parts is excluded from the warranty.
Damage caused by impurities or acts beyond our control are not
covered. Any product or part which has been repaired or altered in
any manner outside of Franke's factory, unless previously authorized
in writing by Franke, will void warranty. Any replacement excludes
transportation and any labor re-installation costs. This warranty
does not allow recovery of incidental or consequential damages such
as loss of use, delay, property damage or other consequential dama-
ge, and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive. Franke DISCLAIMS
all other warranties, expressed or implied, including IMPLIED
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS
C
FOR A PARTICULAR PURPOSE. This warranty gives you
specific legal rights that may vary from state to state.
B
A
Further information
For any further information about our products, about the installation of
them or about the guarantee, please contact our customer service
G
D
department:
Franke Kitchen Systems
800 Aviation Parkway
Smyrna, TN 37167, USA
Phone: 800-626-5771
Email: ks-customerservice.us@franke.com
INSTALLATION MANUAL

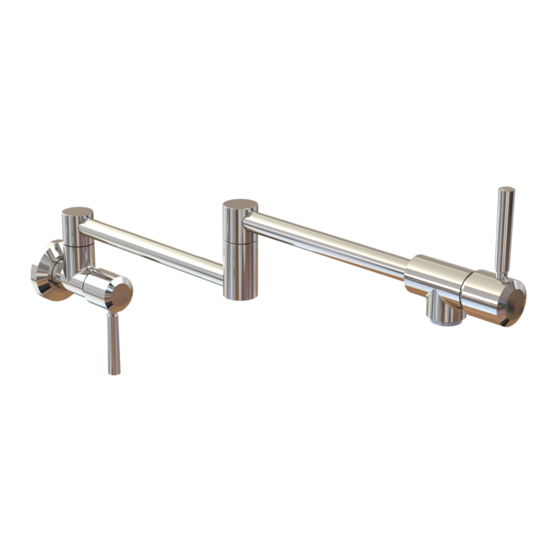

ABSINTHE POT FILLER
PF5200 - PF5220 - PF5270 - PF5280
: Franke faucets are NOT
