Parallax PING 570-28015 Manual

TM

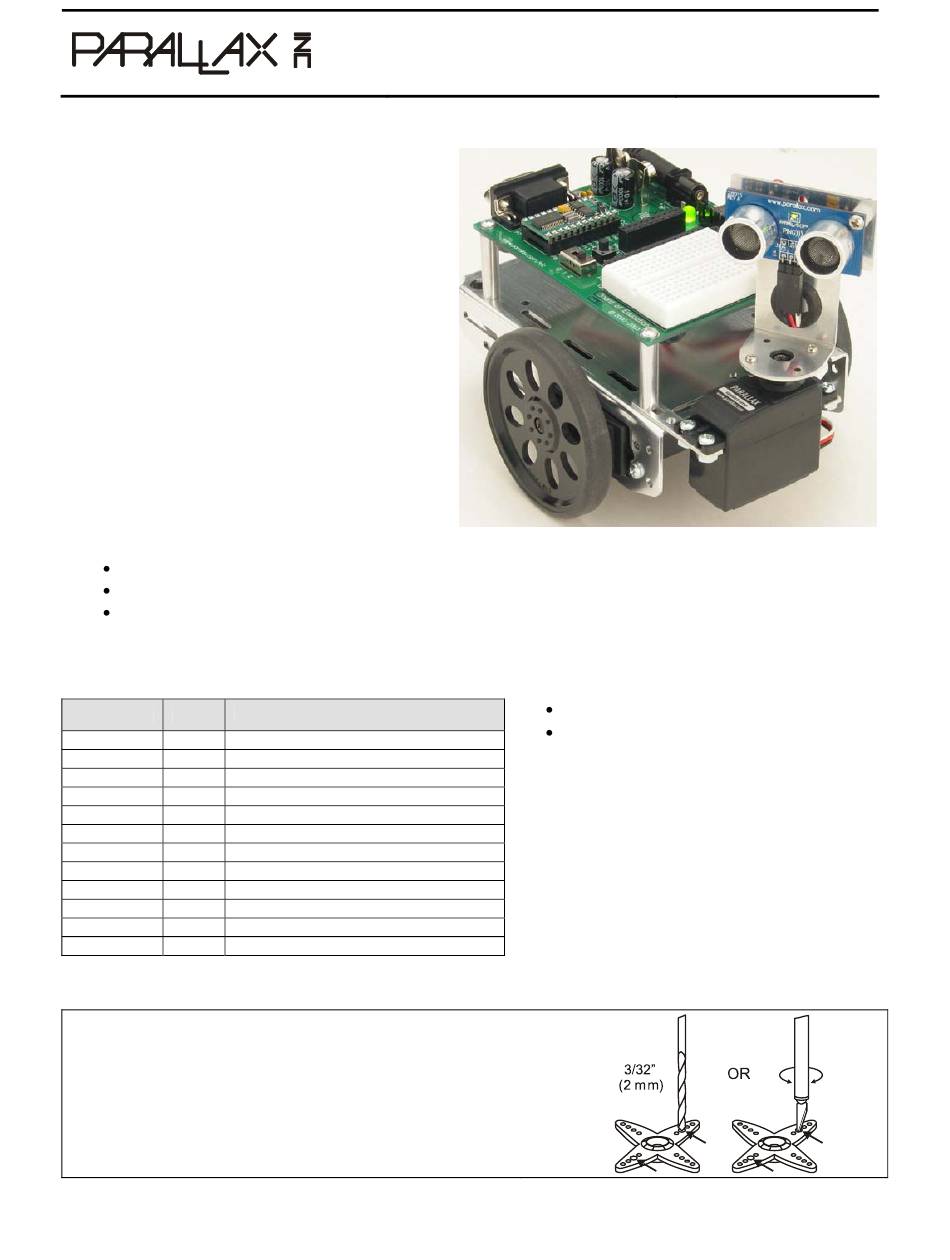

PING))) Bracket Kit
(#570-28015)
The PING))) Bracket Kit includes a standard
servo and all mounting hardware required to
attach the PING))) ultrasonic sensor to the front
of the Parallax Boe-Bot
made robot chassis with a flat mounting spot on
the front).
You may also purchase additional hardware
from Parallax to mount the HM55B Compass
Module to the same mounting bracket. That
hardware is not included in this kit but is
available from a hardware store or the Parallax
web site. See page 4 for more information.
Features
Parallax Standard Servo provides 180 degrees of ultrasonic scanning ability
Clean and sturdy connection provides reliable use on mobile robots
Example BASIC Stamp
downloaded for free from http://www.parallax.com/detail.asp?product_id=570-28015
Bill of Materials
Part# Qty Description
700-00003 7 4/40 nut, zinc plated
700-00015 3 Nylon washer (size 4)
700-00025 1 Rubber grommet – 13/32" size
700-00028 5 4/40 ¼" long panhead Phillips screw
700-00062 2 2/56 ¼" long panhead Phillips screw
710-00006 2 4/40 ½" long panhead Phillips screw
711-00001 2 2/56 nut
713-00005 2 Nylon spacer ¼" long (size 4)
720-00012 2 Straight bracket
720-28015 1 PING))) mounting bracket
805-00001 1 Servo extension cable 10"
900-00005 1 Parallax Standard Servo
Assembly Instructions
Step 1:
Enlarge two holes on the standard servo horn with a 3/32" (2.0
mm) drill bit or the tip of an X-Acto knife. Use caution in this
step since the servo horn plastic is quite brittle and can crack if
it is enlarged with a screw.
Copyright © Parallax, Inc. • PING))) Bracket Kit (#570-28015) • v1.1 8/10/2007
Web Site: www.parallax.com
Forums: forums.parallax.com
Sales: sales@parallax.com
Technical: support@parallax.com
®
robot (or any custom-
®
code for using the mounted PING))) sensor with a Boe-Bot robot can be
Office: (916) 624-8333
Fax: (916) 624-8003
Sales: (888) 512-1024
Tech Support: (888) 997-8267
Tools Required
A 3/32" drill bit or an X-Acto
A #2 Philips screwdriver (such as the
Parallax screwdriver included in the
Boe-Bot Robot Kit)
®
knife
