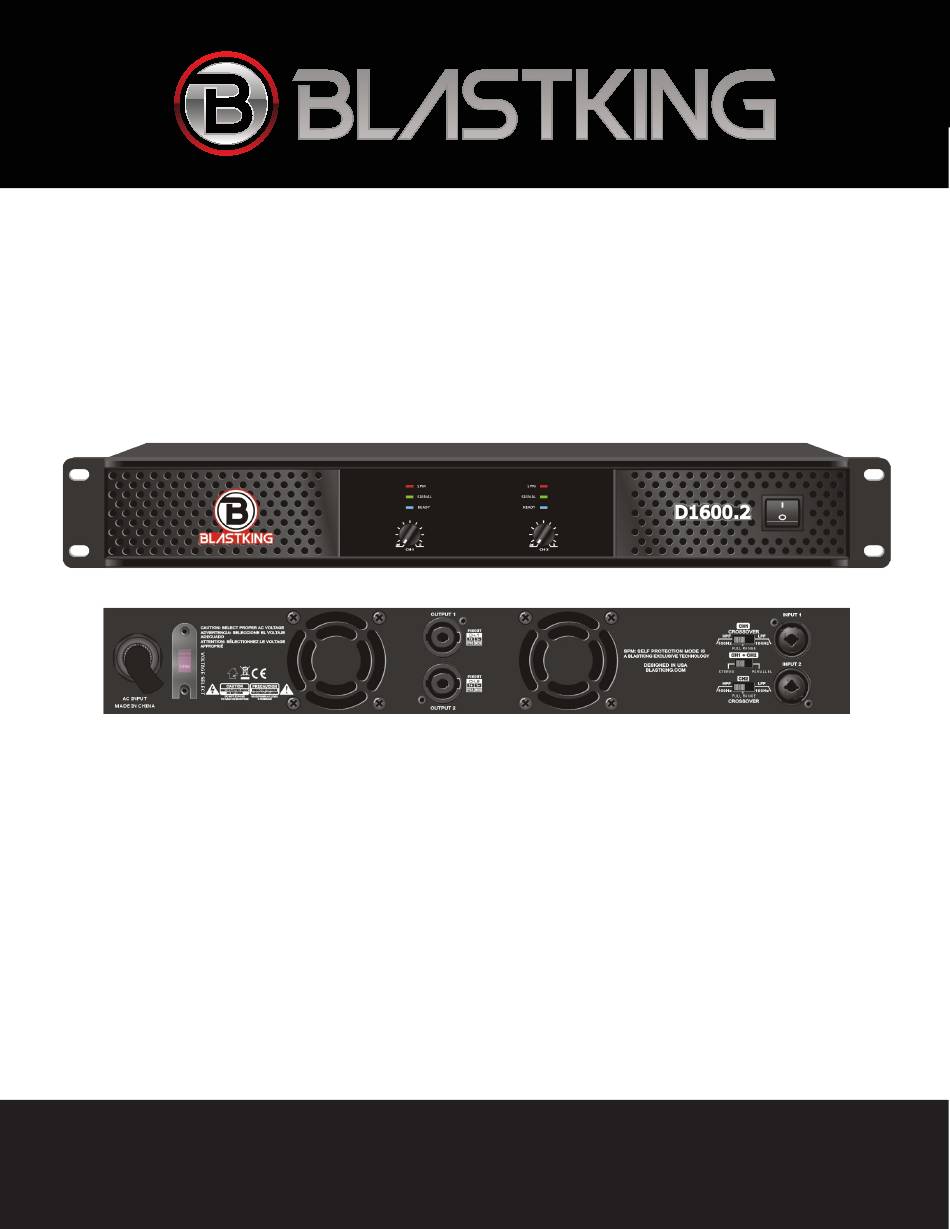

- Page 1 USER MANUAL CLUB SERIES CLASS D AMPLIFIER D1600.2 blastking.com...
- Page 2 Please read this entire user manual before operating this unit All BlastKing® products purchased in the USA are protected under the regular manufacturer’s three year warranty. This warranty is intended to protect customers from any and all manufacturer defects from three years of purchase.

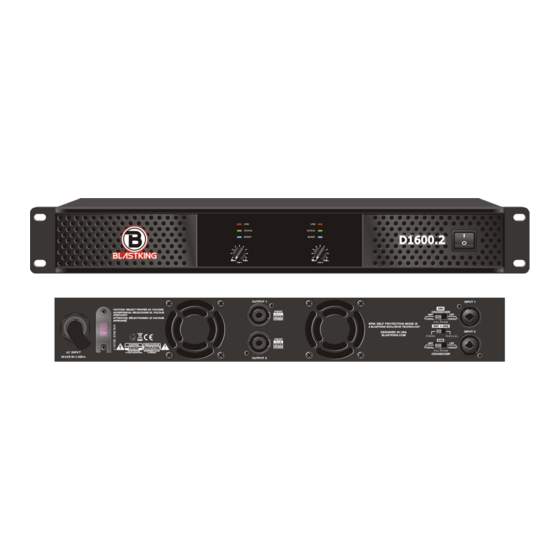

- Page 3 FRONT PANEL AND REAR PANEL FUNCTION INDICATOR DIAGRAM Front Panel Self Protection Mode Signal Indicator Power Switch Ready Indicator RP-Volume Control Rear Panel Voltage Switch Selector Signal Input Stereo Bridge Power Cord Switch Crossover Switch Power Output...
- Page 4 Note: Working over 240 Volts AC for a long period of time may cause power damage. Power Control The Club series power amplifier supports power output control: according to the panel setting power, the connected speaker can be operated safely and reliably within the power requirements.
- Page 5 BLOCK DIAGRAM...
- Page 6 TYPICAL CURVE Frequency Response: 4 Ohm (Yellow), 8 Ohm (Red) and open load (Magenta) Phase Response: 4 Ohm (Magenta), 8 Ohm (Yellow) and open load (Red)
- Page 7 TYPICAL CURVE THD+N vs Pro 100Hz @ 4 Ohm (Red) THD+N vs Pro 100Hz @ 8 Ohm (Red)
- Page 8 Damp Modulus (8 Ohm) >200 Radiator High/Low Automatism Control Protection Equipped with Blastking’s Proprietary SPM Self Protection Mode Technology Weight 12.6 Lbs / 5.75 kg Dimension 19” x 12.2” x 2.5” / 483 x 328 x 64 mm (1.5U) Power Range...
