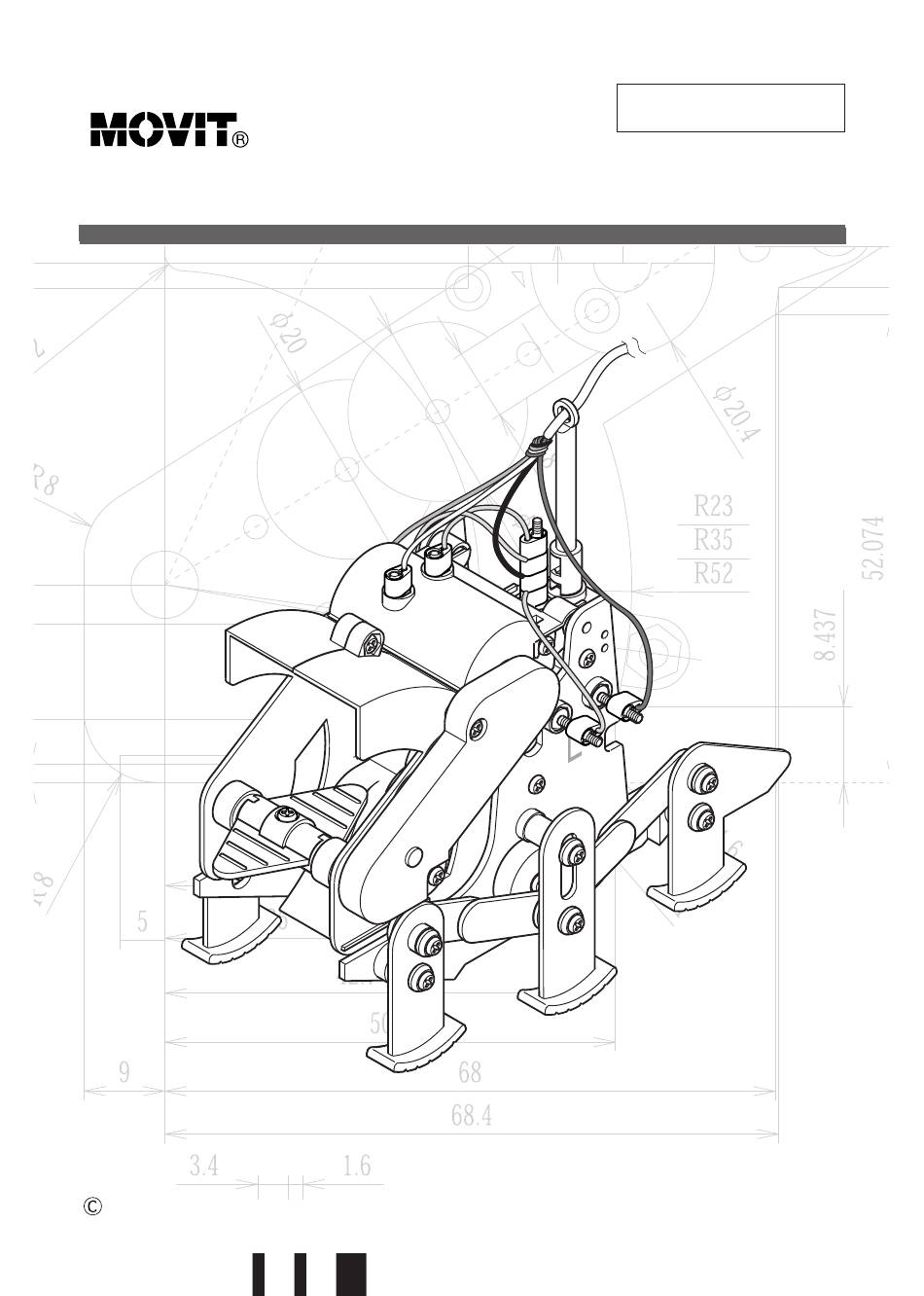

9002E-04
Lot.No.
SPIN SHOOTER
MODEL: MR-9002E
EK JAPAN CO., LTD. 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Movit Spin Shooter and is the answer not in the manual?

Questions and answers

Summary of Contents for Elekit Movit Spin Shooter

  • Page 1 9002E-04 Lot.No. SPIN SHOOTER MODEL: MR-9002E EK JAPAN CO., LTD. 2001...

  • Page 2: Table Of Contents

    Contents ● Product Information ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Ⅰ. Assembly of Mechanical Parts 1. Necessary Tools for Mechanical Assembly ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 2. Before Assembling Mechanical Parts ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥4 3. Parts List‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥6 4. Assembly of Controller ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥8 5. Assembly of Body ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥12 6. Let’s Operate!‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥22 7. How to Play ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥23 Ⅱ...

  • Page 3: Product Information

    ● Product Information SPIN SHOOTER MR- 9002E ● Outline SPIN SHOOTER is a do-it-yourself mechanical kit to make a six-legged machine with three motors, operated by a wired controller. The moving features of SPIN SHOOTER are: forward, backward, right and left turns, made by its controller.

  • Page 4: Ⅰ. Assembly Of Mechanical Parts

    Ⅰ. Assembly of Mechanical Parts 1. Necessary Tools for Mechanical Assembly Diagonal Cutter Pen Knife Screwdriver (M3) Use for cutting parts out of Use for cutting off unneces- Use for turning screws. the frame. sary projections and burrs. Long-nose Pliers Batteries (not included) Hammer Use for handling parts and hold-...
  • Page 5 • Driving shaft into gears The motor shaft must be pressed into gears. To reduce the shock and protect the gears and cranks, using a lever is recommended. However, if one is not available, tap the gears and cranks gently so as not to damage them.

  • Page 6: Parts List

    3. Parts List * Check the parts by marking a blank box. * Some parts may have lines called weld lines formed through the resin treatment. They have no effects on assembly and function. Nut 54pcs Screw (small) 48pcs Screw (medium) 8pcs Screw (large) 1pcs * Spare Parts: There may be extra screws and nuts.
  • Page 7 Controller set (A1) 1pc Set B 1pc (A2) 1pc Set C 1pc Set D 1pc Set E 1pc Set F 1pc Set G 1pc...

  • Page 8: Assembly Of Controller

    4. Assembly of Controller ①Assembly of PC board and battery holder *Check the parts by marking a blank box before assembling. Screw (small) Battery contact Battery contact 10pcs for PCB 3pcs for negative 1pc PC Board A2-3 Nut 10pcs Battery contact Battery contact for positive 1pc for + and - 3pcs...
  • Page 9 ② Attachment of PC board and 4-line wire ① Assembled PC Board from Screw (small) 2pcs A1-1 Switch contact B 2pcs Nut 2pcs 4-line wire Put 4-line wire through the hole at the bottom of A1-1. Side View The side with shorter colored wires 4-line wire The side with longer colored wires Penetrate 4-line wire through both the PC board...
  • Page 10 ③ Wiring of PC board and attachment of rotor switch A2-6 4pcs Switch contact A 1pc A2-5 Pull out the 4-line wire. How to attach the wires 1) Put the wire through the small- er hole of A2-6. 2) Only bend the stripped end of the wire and put it into the larger hole of A2-6.
  • Page 11 ④ Attachment of upper cover ① Assembled battery holder from Screw (small) 3pcs Nut 3pcs A1-2 A2-4 2pcs Screw (small) / 3pcs A1-2 A2-4 / 2pcs Caution! Do not put in the batteries yet. Otherwise, the ends of the 4-line wire may short and cause excess heat, explosion or fire to the bat- teries.

  • Page 12: Assembly Of Body

    5. Assembly of Body ① Attachment of Motor Motor 3pcs Pinion gear 3 pcs C-1 1pc C-2 1 pc Make three sets of the following. Flush to the surface. Motor Pinion gear Attach two of the three motors to C-1 and C-2. * The terminal side of the motor faces outward.
  • Page 13 ② Assembly of side panel D-1 2 pcs D-2 2 pcs Nut 8 pcs Lock nut 2 pcs Flat spur gear with B-1 1 pc B-2 1 pc Screw (medium) 6 pcs pinion (large) 2 pcs Make 2 sets of the following.
  • Page 14 ③ Assembly of gear box ① Assembled gearbox from ② Assembled side panel R, L from Crown gear with pinion 2 pcs Flat spur gear with Flat spur gear with pinion Screw (small) Nut 6 pcs pinion (small) 2 pcs (large) 2 pcs 6 pcs...
  • Page 15 ④ Attachment of side panels ③ Assembled side panels R, L from Screw (small) / 2 pcs Nut 2 pcs Nut / 2 pcs Screw (small) / 2 pcs Top view...
  • Page 16 ⑤ Assembly of top panel ④ Assembled unit from 1 pc Screw (large) 1 pc C-3 1pc C-4 1 pc Screw (small) 3 pcs Nut 4 pcs Screw (small) Screw Screw (large) Screw (small) (small)
  • Page 17 ⑥ Assembly of legs ⑤ Assembled unit from Screw (medium) 2 pcs Screw (small) 10 pcs Nut 10 pcs D-6 4pcs F-1 12 pcs 2 pcs each Assemble the right side (R marked) using the same method. Attach the parts in order from [1] to [3]. * Attach the F-1 to the screw before secur- ing.
  • Page 18 ⑦ Assembly of rotor Flat spur gear with pinion (small) 2 pcs Screw (small) 4 pcs Flat spur gear with E-1 1pc E-2 1pc Nut 4 pcs E-3 1 pc pinion (large) 3 pcs Nut / 2 pcs Screw (small) / 2 pcs Attach the flat spur gears with pin- ion (large) in order from [1]〜...
  • Page 19 ⑧ Assembly of rotor shaft panel and top panel ⑦ Assembled rotor from G-1 1pc F-4 1pc F-3 1pc Nut 3 pcs F-2 1 pc E-4 1pc Screw (small) 3 pcs Screw (small) Nut / 2 pcs Screw (small) / 2 pcs...
  • Page 20 ⑨ Attachment of rotor ① Assembled motor from ⑥ Assembled unit from ⑧ Assembled rotor and rotor top panel from Nut 3 pcs Screw (small) 2 pcs Attach the parts in order from [1] 〜 [3] Put the motor in the rotor. Pinion gear will Terminal face up.
  • Page 21 ⑩ Wiring 〜 Completing ⑨ Assembled unit from Wire 3 pcs G-2 10 pcs Foot sticker 6 pcs Controller * Make sure to connect the Controller wires at the correct loca- tions. See the wire patterns. White Wire Green How to attach the wires 1) Put the wire through the small- er hole of G-2.

  • Page 22: Let's Operate

    6. Let’s Operate! ● How to install the batteries Power Source / ”AA” alkaline battery X 4 pcs (not included) ① Place the batteries in the battery holder of the controller. Make sure of the correct polarity (＋ & −). ②...

  • Page 23: How To Play

    7. How to Play After assembling , let’s play. SPIN SHOOTER SPIN SHOOTER is able to keep the ball inside and shoot it out. It will be fun to play games with friends. ● Suggested games In order to play a game, there must be rules. The rules will vary in different types of games. The following examples are games and their rules.

  • Page 24: Ⅱ.technical Data

    Ⅱ.Technical Data SPIN SHOOTER is able to make various movements by using three motors. How are the motors controlled? In this section, let’s talk about the SPIN SHOOTER’s controller mechanism. 1. Explanation of Controller ・ About the controller SPIN SHOOTER is able to move forward, backward, rotate and shoot the ball by controlling the motor’s rotating direction, with three switches on the controller.
  • Page 25 ・ To turn on the motor PCB printed pattern. When the switch contact is pushed, it connects with the printed pattern and the electric current will flow. The direction Connecting to this Regular rotation of the elec- side makes the reg- tric current ular rotation.

  • Page 26: Explanation Of Mechanism

    2. Explanation of Mechanism SPIN SHOOTER uses the “gear mechanism,” which transmits the rotational power from the motor to the legs and rotors. Gears are used for many devices around you. They have not only the function to transmit the power but other important roles. Here are various functions of the gears.
  • Page 27 ● Functions of Gears 1) Changing the direction of rotation 90 ° The direction of rotation becomes opposite. 2) Changing the rotating speed 40 teeth 10 teeth One rotation makes next gear rotate one-forth. The speed is reduced to one-fourth. 3) Changing the torque the number of motor Lever...

  • Page 28: Ⅲ. Explanation Of Molding

    Ⅲ. Explanation of Molding 1. Molding Procedure The robot has many plastic parts for its body and the controller. There are many plastic products around you also. When you compare the same plastic parts from the same products, you can see they have exactly the same form. Otherwise, the parts could not fit with the matching parts or the products would have uneven quality.
  • Page 29 ・ Extrusion molding Extrusion molding is used for plain plastic parts, such as plastic sticks and boards. A plastic stick is made through pressing out the melted plastic from a round opening. The board is made through a thin flat opening. Changing the shape of the opening, various kinds of plastic can be made. The section deciding the shape is called a die .

  • Page 30: Molded Plastic Parts

    2. Molded Plastic Parts The plastic parts made by these molding techniques have some characteristics. You can find them on the parts used for this robot as well as other plastic parts around your house. Here, the typical phenomena is explained in the case of injection molding. ・...
  • Page 31 ・ Weld line As explained in the previous pages, the molds have the shape exactly opposite of the plastic part. Therefore, to make a projection on the plastic, the mold must have a hole for it, and to make a hole in the plastic, the mold needs to have a pin for it. When the mold has the pin, it will divide the stream of the melted plastic.

  • Page 32: Ⅳ. Explanation Of Motors

    Ⅳ. Explanation of Motors There are many things which use motors around us. For example, a mobile phone uses a motor for the vibration mechanism. A fan inside of a hair dryer is turned by a motor. Motors are also used to turn wheels of a train. If there were no motors in the world, our present life would not be as it is.
  • Page 33 ・ Permanent magnet ← Polarity will not change. ・ The polarity of the electromagnet will change! Enameled wire ・ Inside of motor Core (wrapped with enameled copper wire) Permanent magnet Axis Brushes Commutator ・ Turning mechanism North is attracted to south. South and north will switch!

  • Page 34: Types Of Motors

    3. Types of Motors There are many ways to group motors. If they are grouped by power source, they can be divided into DC motors, which use direct current, and AC motors, which use alternating current. If they are grouped by kinetic principles, they can be divided into electromagnetic motors, which use electromagnetic power, and electric motors, which do not use electromagnetic power.
  • Page 35 ・ DC motor Mobile phone Hair dryer ・ Stepping motor Printer Layer A Excita- Layer B tion 30 ° Layer C 45 ° Industrial robot ・ Linear motor Electromagnet Linear motor car Permanent magnet...

  • Page 36: Explanation Of Screws

    Ⅴ. Explanation of Screws In this section, let’s talk about screws. 1. Discovery of Screws Long time ago, a man found a stick with a spiral shaped shell stuck into it. Then, he removed the shell by twisting it. This is told the beginning of screws. Screws are used everywhere at present.
  • Page 37 ・ Types of screws A nut and screw with the same Industrial standard standard will fit. Pitch Height of screw thread Thread Body diameter Screw head A nut and screw with the different standard will not fit. Shape of screw head Shape of screw slot Pan headed Phillips (cross-...

  • Page 38: How Screws Are Used

    3. How screws are used How are screws used around us? They are mainly used to stabilize objects by screwing them together. Imagine a box with a machine inside, such as an electronic game, a TV, a radio and a clock. They all have the covers screwed on their back sides. Screws are often used to seal objects.

  • Page 39: Ⅵ. Spare Parts List

    Ⅵ. Spare Parts List Part No. Description 901201M Controller set A1(R) 901202M A2(R) 900201M Set B 900202M Set C 900203M Set D 900204M Set E 900205M Set F 900206M Set G 900207M Foot sticker M3 × 10 4400196 Screw (small) M3 ×...
  • Page 40 NOTICE Manufactured by ① MOVIT and ELEKIT are registered trademarks of EK Japan Co.,Ltd. ② All rights reserved. Reprinting any of this instruction manual without our permission is forbidden. ③ The specifications, form, and contents of this product are subject to EK Japan Co.,Ltd.
