Precision Lighting Atto Jack Instruction Manual

instruction manual
Atto Jack & Minipoint System
Atto Jack is a small modular display 95 CRI
LED luminaire offering 360º bearing aided
rotation and 180º tilt that uses the Precision
Lighting Minipoint system.
Atto Jack 1.2W 102lm
Atto S Jack 1.2W 102lm
Atto T Jack 1.2W 102lm
These instructions cover procedures for all
versions of Atto Jack fixtures including:
Atto Jack
Atto S Jack
Atto T Jack

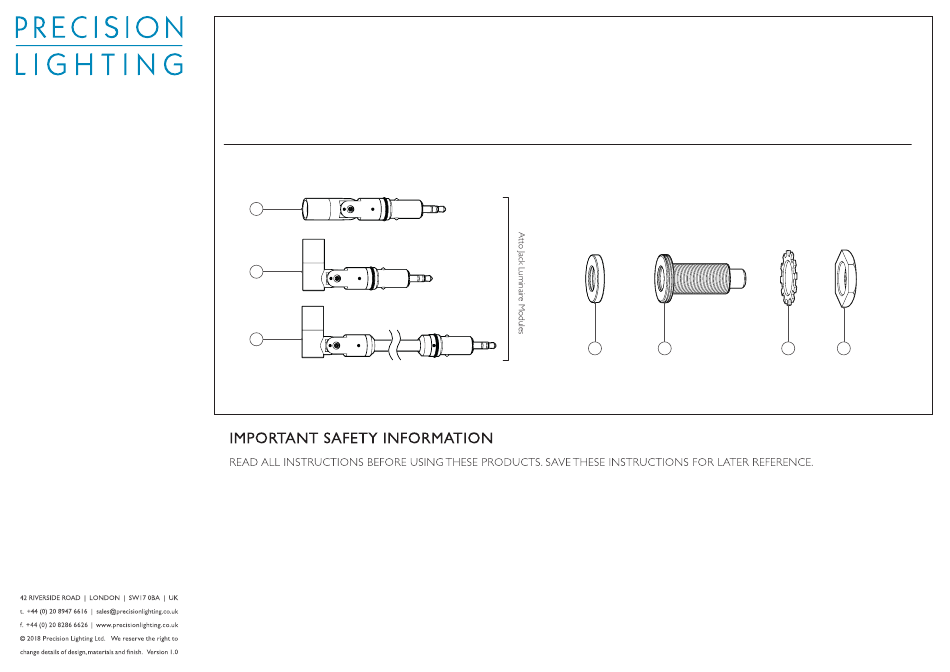

KEY PRODUCT FEATURES
A Atto Jack luminaire
B Atto T Jack luminaire
C Atto S Jack luminaire
D Decorative Cover
A
B
C
1. Mains supply to driver must be OFF 4.
before connecting or disconnecting
the fittings.
2. All systems must be installed by
a suitably qualified professional
only. Installations must conform
to national installation, accident
prevention regulations. 5.
3. Do not install any fixture closer
than 150mm (6 inches) from any
combustible material. Do not install
these systems in a damp or wet
location.
E Minipoint
F Lock Washer
G Nut
To reduce the risk of fire and burns, 6.
do not install these systems where
exposed bare conductors can be
shorted or contact any conductive 7.
materials. Do not conceal or extend
exposed conductors through a
building wall. 8.
Install only as described in
this Precision Lighting manual. 9.
Appropriate fixings will need to be
used depending on surface material
at the installer's discretion.
D E
Ensure all connections are tight. Bad 10. Always use appropriate optics and
connections can cause overheating,
arcing and potential fire risk.
Wire supply connections must be
made with U.L or compatible testing 11. These are constant current
agency-approved connectors.
Luminaires may be hot, allow to
cool before touching.
Regular cleaning of these products is
important. Switch off at mains supply
and allow to cool before touching.
Clean fittings with a microfibre cloth.
Then reconnect the power supply.
© 2018 Precision Lighting Ltd. We reserve the right to change details of design, materials and finish. Version 07.19
F G
ensure they are fitted securely.
Use only Precision Lighting
recommended accessories.
fixtures. For use only with an
appropriate 350mA LED driver as
recommended by Precision Lighting
