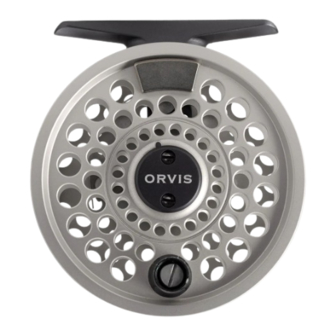

ORVIS Battenkill Quick Start Manual

IntroductIon
Features of your Battenkill Disc reel include:
• The best selling reel of all time, Battenkill Disc reels are designed to be
durable, smooth operating, and attractive.
• Counterweighted spools for vibration-free operation at high revolutions.
• Anodized aluminum or stainless steel for complete corrosion resistance.
• Spools have bronze bushings so there is no distortion when spinning
against the hard shaft.
• All models change from right- to left-hand retrieve in seconds.
• One-sided frame permits quick and easy spool changes with
no line pinching.
• The spool rim is exposed for easy palming and precise control of
running fish.

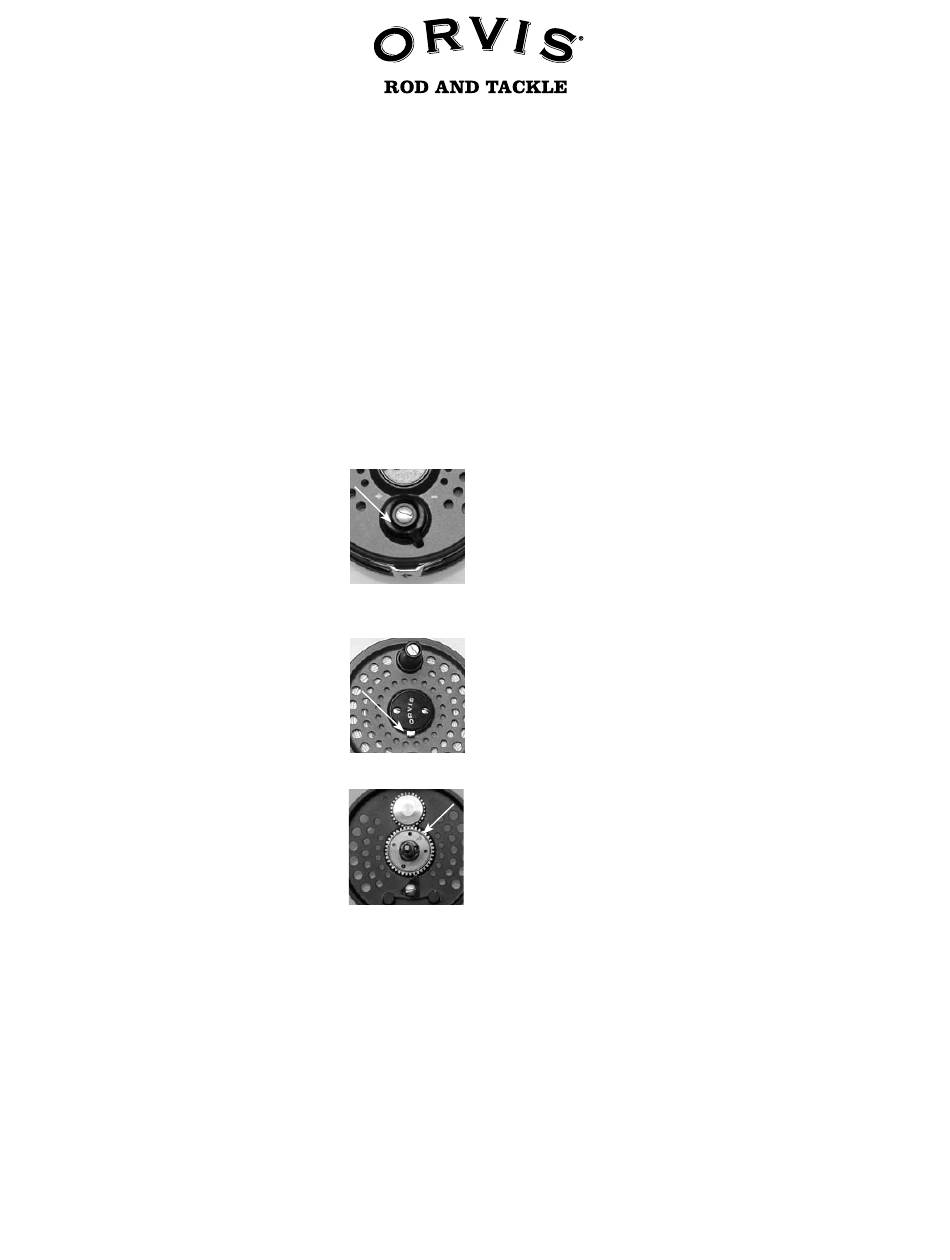

drag operatIon
The Battenkill Disc reels feature a multistage disc drag
system that incorporates stainless steel, Rulon
components to ensure smooth trouble-free performance.
The drag should be adjusted to meet the fishing
conditions. To adjust the drag, turn the drag adjustment
knob clockwise (+) to increase the drag and counter-
clockwise (-) to decrease the drag.The minimum drag
setting should never be less than the pressure required to
prevent overrunning of the line on fast runs.
Spool removal
The spool release is located in the middle of the
reel spool. To remove the spool, depress the spool
release while simultaneously lifting the spool out of
the body.
retrIeval converSIon
The Battenkill Disc reels have the drag factory
installed for left-hand wind.To change your reel to
right-hand wind, simply slide the ratchet gear off the
center spindle, turn it over so the "R" faces toward
you, and slide the ratchet gear back over the center
spindle.The reel is now set for right-hand wind.
routIne maIntenance
Your new Battenkill reel has been properly lubri-
cated when you receive it. However, it should be
cleaned and lubricated after extended use (perhaps twice a year) or after
contact with dirt, sand, or salt. Lubricate the handles, pawls, and ratchet
gear shaft with Penn Reel Lube, which is available in most tackle shops.
If you can't find this item in your tackle shops, tubes are available from
Orvis at a nominal charge.
Following each use in saltwater, the reel should be rinsed in freshwater
and all parts, except the drag surfaces, lightly oiled.The main frame and
spool should be wiped with a lightly oiled cloth. For extended storage,
especially after saltwater use, it is recommended that the line and backing
be removed and the drag loosened.
original Battenkill
, and brass
®
THE ORVIS COMPANY | MANCHESTER VERMONT 05254 | www.orvis.com
Orvis Technical Questions: info@orvis.com or 800-778-4778
disc reel
®
guarantee
Your reel is unconditionally guaranteed against defects in materials and
workmanship.
If you have any problems, simply send your reel and a $10 check to
the following address:
By USPS Mail: Orvis; Overhaul Services; 178 Conservation Way;
Sunderland,VT 05250.
By FedEx or UPS: Orvis; Overhaul Services; 4182 Main St.;
Manchester,VT 05254.
If the reel is in any way defective in materials or workmanship, your
$10 repair check will be returned to you at once.
Your reel will be completely serviced (cleaned, lubricated, and eturned
to you postpaid) for a fee of $10, plus cost of parts.
Damaged reels can be repaired on an individual basis and repair work
will be billed at the hourly shop rate, plus parts. We will provide a writ-
ten estimate upon receipt of the reel prior to any work being done.
QueStIonS?
If you have any questions about the operation and maintenance of
your new reel, Orvis Technical Advisors are always available.
Email: info@orvis.com. Phone: 1-800-778-4778.
