Summary of Contents for i4Technology EcoLife PRO-2
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Specification and operation 1.1 Intended usage and operation area 1.2 Technical features 1.3 Device components 1.4 Internal design and operating Correct use 2.1 Usage limitations 2.2 Operating Technical service Failure table Package and transportation Proof of acceptance Manufacturer’s warranty Warranty card... - Page 3 To get acquainted with your new EcoLife PRO-2 nitrate meter’s internal design and rules of operation (correct use, technical service, repair, storage and transportation) please read the supplied manual carefully. EcoLife PRO-2 nitrate meter is a hand-held device, produced to measure the quantitative nitrate content (rapid analysis) in fresh fruits, vegetables, meat and infant food.
-
Page 4: Specification And Operation
1 SPECIFICATION AND OPERATION 1.1 Intended usage and operation area 1.1.1. EcoLife PRO-2 nitrate meter is produced to measure the quantitative nitrate content (rapid analysis) in fruits, vegetables, fresh meat and infant food. The product’s working principle is based on measuring the electrical conductivity of fruits, vegetables, fresh meat and infant food. -
Page 5: Device Components
1.3 Device components 1.3.1 Table 2 below gives the information about the device components and contents of delivery. № Name Number Note EcoLife PRO-2 nitrate meter TC 4215-008-6406207-2015 Battery type AAA preinstalled Measuring probe Case Packaging box User manual INTK.414333.001 RE... -
Page 6: Internal Design And Operating

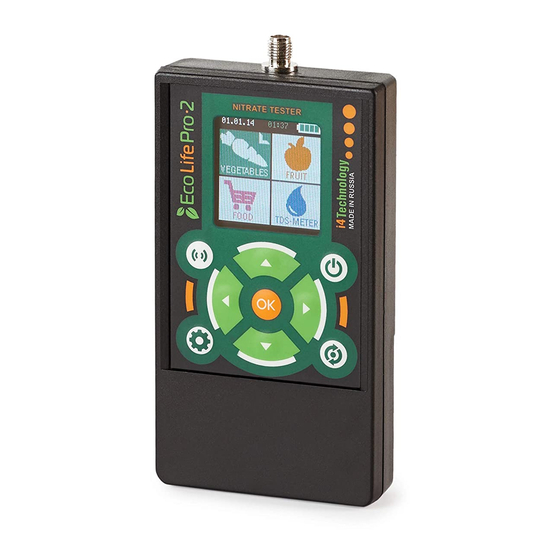

1.4 Internal design and operating 1.4.1 EcoLife PRO-2 nitrate meter is a portable device with the self-contained power supply. Picture 2 – Scheme of main parts 1. Enclosure. 2. Battery compartment. 3. Battery compartment’s cover. 4. Keyboard. 5. OLED-display. 6. Measuring probe. -
Page 7: Correct Use
- Button box allows to navigate through the Settings menu and food groups’ items lists and select values; - Measurement button («ИЗМЕРЕНИЕ») allows you to switch to the Measurement mode; - History button («ИСТОРИЯ») allows to display the history of testing. 1.4.4 The power is carried out by two AAA batteries. - Page 8 2.2.2. Measuring procedure To switch the device on press the button and keep it pressed down for 2 seconds. When you do, you’ll see the screen saver shown in Picture 4. Picture 5 – Screen saver The Food group selection window opens. The chosen food group flashes green (see Picture 5). Navigating through food groups and confirming the choice of a food group are performed by the button Picture 5 –...
- Page 9 Picture 6 – Food group menu, food group’s items list After the food item has been selected (it’s marked by black background, see Picture 6), you need to immerse the measuring probe into its flesh (or immerse it in water while measuring TDS) by two thirds of the measuring probe’s length and press the button .
- Page 10 After a few seconds the screen displays the nitrate concentration in the tested food item together with the maximum allowable concentration in mg/kg; for water it displays salt content and the water use recommendations (boil, put it through a filter, etc.) – see Picture 8. Picture 8 –...
- Page 11 Picture 9 – Brief history of testing for a selected food group (vegetables) Picture 10 – Brief history of testing for a selected food item (early cabbage) The results of measurement that show the exceeded concentrations of the maximum allowable concentration are highlighted in red.
- Page 12 To return from the history list to the food group’s items menu press the button briefly. You can also return to the food group menu by pressing the button . The button is always used to return from any menu to the food group list. Picture 12 –...
- Page 13 Picture 14 – History clearing 2.2.4.2. Date setting To set the date you need to enter the Settings - , choose the menu item “SET DATE” («УСТАНОВИТЬ ДАТУ»), and confirm your choice by pressing the button . By pressing the buttons set day, month and year correctly and confirm your choice by pressing the button (see Picture 15).
-
Page 14: Technical Service
Picture 16 – Time setting 3. Technical service 3.1. Keep the product clean and remove the dust by dry and clean flannel at times. 3.2. Protect the product from strokes and mechanical damage. 3.3. Using the product, check the batteries. If you see the runs of the battery acid, renew them. 3.4. -
Page 15: Package And Transportation
The requirements specified on the package warning labels must be strictly observed during loading and transportation. 6. Proof of acceptance EcoLife PRO-2 nitrate meter TC 4215-008-6406207-2015 manufacturing number ____________________ manufacture date ____________________ is manufactured and accepted according to the valid technological documents and considered exploitable. - Page 16 7.6. When the warranty period ends, the maintenance of the Product will be provided at the expense of a Consumer. ООО «I4-Technology» www.i4Technology.ru...
-
Page 17: Warranty Card
Warranty card Product name: EcoLife PRO-2 nitrate meter Manufacturing number ____________________________________________________________ Manufacture date ______________________________________________________________________ QC stamp ___________________________________________________________________________ Sale Date _________________________________________________________________________ Vendor’s stamp and signature ______________________________________________________________ The customer does not have any claims on quality of the Product and the contents of delivery. The equipment is in good repair __________________________________________________ (Customer’s signature)
