Olimpia electronics BSR-6160 Quick Start Manual

BSR-6160
COMMUNICATION PROTOCOL
MAIN VOLTAGE
STANDBY CONSUMPTION
ALARM CONSUMPTION
TEMPERATURE SENSITIVITY
INDICATORS
OUTPUT
CLASS
MAXIMUM LOOP CURRENT (Ic max, -L in/out)
MAXIMUM SWITCH CURRENT (Is max, -L in/out)
MAXIMUM SERIES RESISTANCE (Zc max, -L in-out)
MAXIMUM LEAKAGE CURRENT
IN ISOLATION MODE (I max, -L in/out)
ISOLATION VOLTAGE (Vso min-max)
RECONNECT VOLTAGE (Vsc min-max)
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATING TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIALS
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
GENERAL
The user have to read carefully the following instructions, in order to be properly informed and keep them
for future use.

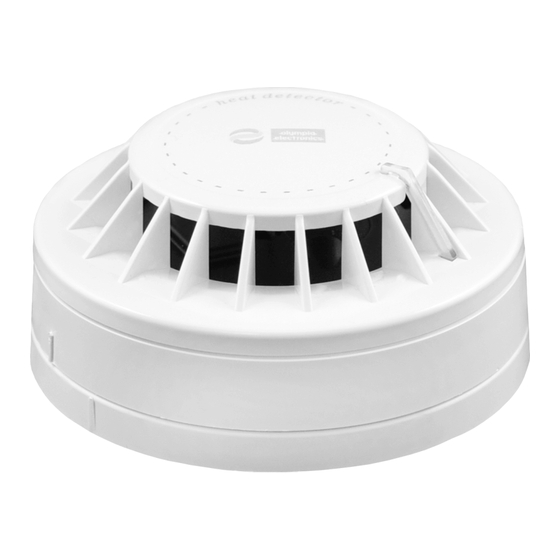

The BSR-6160 is an analogue addressable heat detector which integrates the function of rate-of-rise
heat detection and it can work with any fire panel supports Olympia A Protocol. It can be adjusted to detect
multiple levels of heat offering flexibility and rich functionality. Also, it integrates a short circuit isolation
circuit which is automatically activated and disconnects the defective node from the remaining loop,
allowing it to be located by the panel.
The detector sends to the main panel an analogue value which depends on the heat. The value is 100 at
o
57 C and increases proportionally to 120 at 90 C. When a sudden increase in temperature is detected the
detector sends the value of 121.
By default the panel is set to sound an alarm when the temperature is 57 C. The user can change this
setting from the panel for each detector and define any level of temperature between the lower and the
upper limits, specifying the sensitivity of the system depending on the requirements of each site. Also, the
user can select A1R or A1S working mode through the panel.
They are composed by two parts. A plastic base which is placed on the ceiling and the main body of the
detector which fits on the plastic base with a simple rotation to the right. The detectors have a 360 visible
led and a remote led driver which are light up constantly in case of detection of fire, till cancelled from the
panel. Also, they are staying lit even if the sirens are silenced from the panel, so the detector which
detected the alarm is visible. They are turned off only when a reset command is given from the panel. The
indicator led blinks every 10 sec indicating the connection status with the main panel.
Page 1 from 4
Analogue addressable rate-of-rise heat detector
with integrated isolator

TECHNICAL CHARACTERISTICS

L
Thank you for your trust in our products
Olympia Electronics - European manufacturer
Adjustable from 57 to 90 in 1.5
25mA pulses (6ms duration every 2sec)
o
Olympia A Protocol
11-30V DC
90μΑ
2.5mA (with activated LED)
Alarm LED
Remote LED driver
A1R/A1S
1A
5A
100mΩ
9.3 - 10.6
10.7 - 12.7
IP42
EN 54-5 EN 54-17 ,
ο
-40 to 70 C
Up to 95%
ABS/PC
103 (d) x 48 (h) mm
145 gr.
2 years
o
921616000_09_002
o
C steps
o
