Summary of Contents for Beale Street Audio PESV-6B

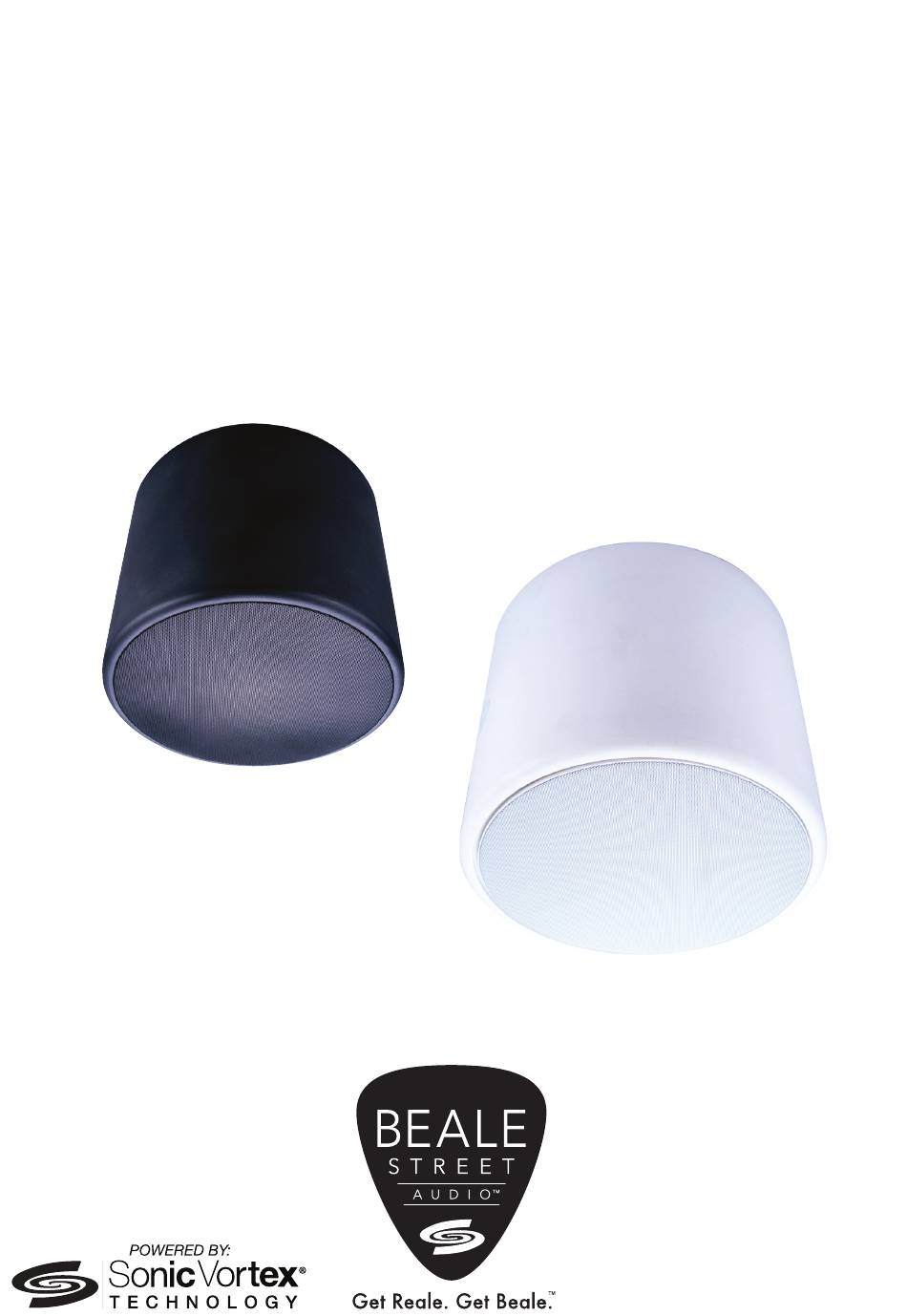

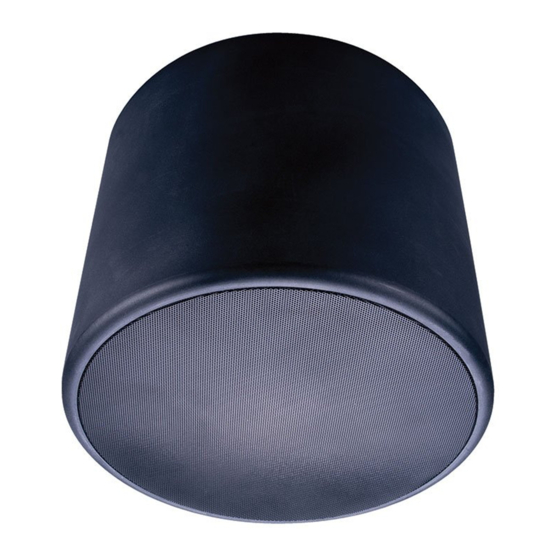

- Page 1 Beale Street Audio PESV-6B, PESV-6W, PESV-8B and PESV-8W Pendant Enclosures Installation Guide...
- Page 2 Introduction The Beale Street Audio Pendant Speaker Enclosures allow integrators to easily install Beale Street Audio speakers into projects that do not have a standard drop or drywall ceiling, for unprecedented sound quality, consistency, and efficiency in both residential and commercial installations.
- Page 3 Features 6.5” Pendant Speaker Enclosure - White PESV-6W • Compatible with most 4”and 6.5” Beale Street Audio speakers with Sonic Vortex technology • Supports 8 ohm and 70V speakers and subwoofers • Perfect for open-ceiling and exposed environments • Water, weather and UV resistant for indoor and outdoor installations •...
- Page 4 Installation Speaker wire must be run from the equipment or volume control location to each potential speaker location. Choose a location for each speaker that is free of obstructions or anything else that might not allow for the depth of the speaker or create interference or noise.
- Page 5 1. At each speaker location, route the speaker cable hanging from the ceiling through the top cover and dress the cables to the wire rope. 2. Unscrew the watertight grommet on the top of the can and slide the speaker cables through the hole in the back cover. Screw on the cap to make this a watertight connection 3.
- Page 6 10.5” x 8.25” (267mm x 210mm) 12.3” x 11.0” (314mm x 280mm) Weight 3.45 lbs (1.56kg) 6.0 lbs (2.72kg) Material ABS Plastic Compatible Beale Street Audio IC6-B, IC6-MB, IC6-BB IC8-B, IC8-MB, IC8-BB, TIC801, ICS8-MB Speaker Models ICA6-B, ICA6-MB, ICA6-BB IC6DVC-B, ICW6-MB, TU401 P4-MB, P4-BB...
- Page 7 Limited Warranty With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge.
- Page 8 The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of Vanco International, LLC. Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street Audio logo are trademarks of Vanco International, LLC.
