Summary of Contents for Deye DGWA2-ACDCBLW12K

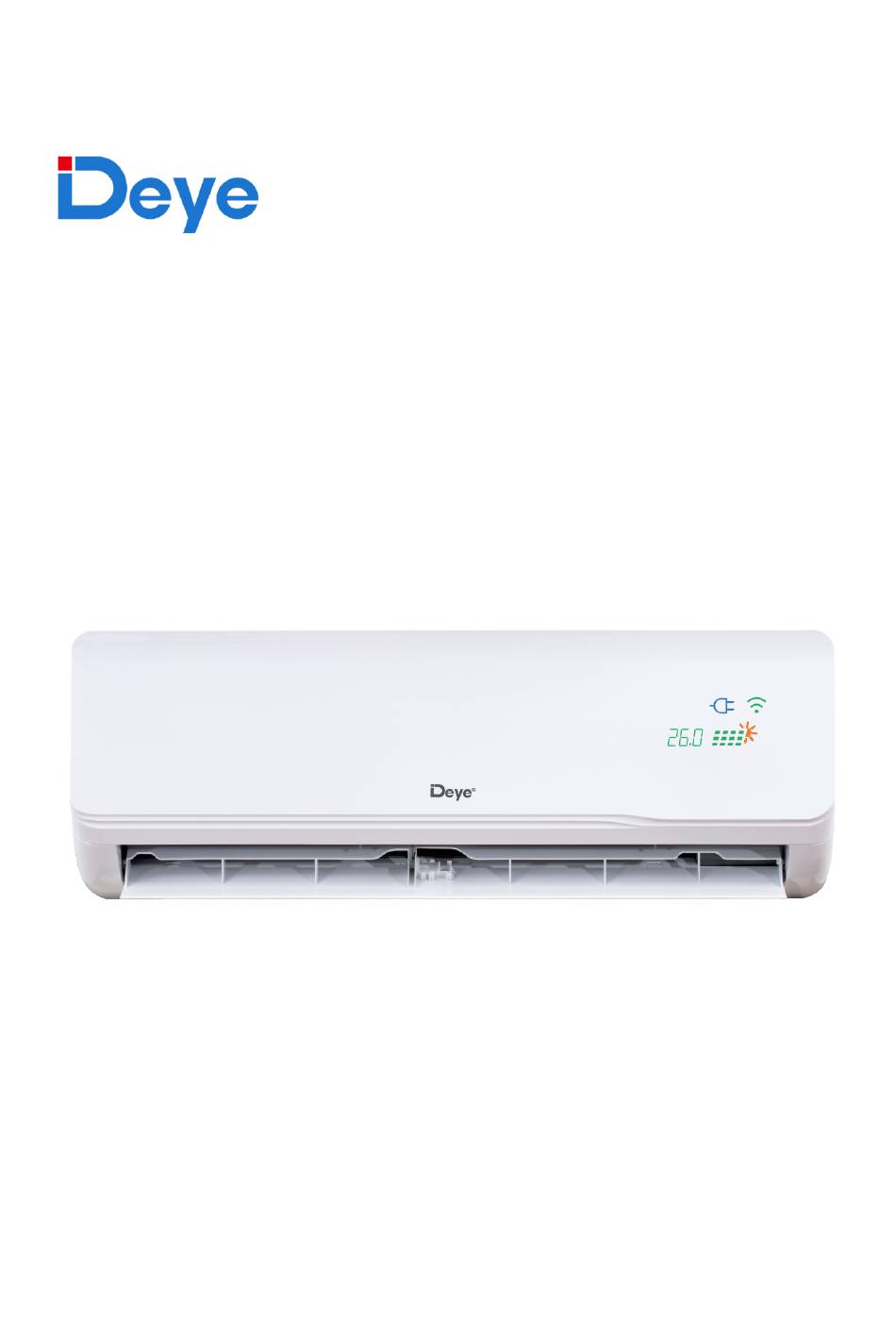

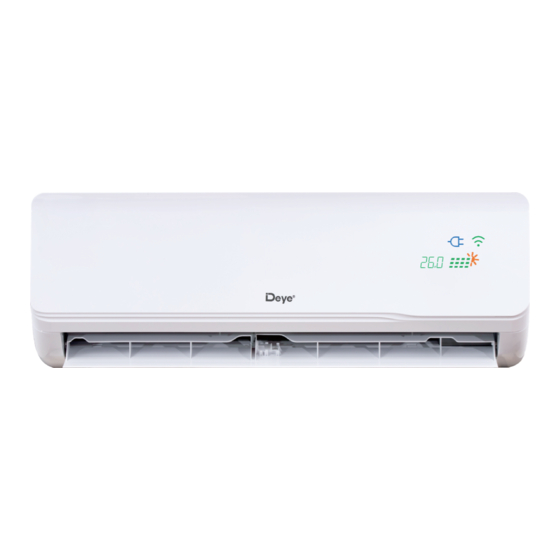

- Page 1 Photovoltaic DC/AC Split System Air Conditioner Installation Manual...
-
Page 2: Table Of Contents
Table of contents Contents Table of contents ........................... 1 Table of Revisions ..........................2 Model Applicability ..........................2 Equipment description ........................... 3 Accessories ............................2 Standards reference ..........................4 Disclaimer .............................. 4 Symbols used ............................4 Safety Precautions ..........................5 Indoor unit mounting instructions ...................... -
Page 3: Table Of Revisions
Table of Revisions Table of Revisions Revision Date Reason for revision Revision By 10 November Initial writing George Abernathy Model Applicability This manual applies to the following models Table of Models Model DGWA2-ACDCBLW- DGWA1-ACDCBLW- DGWA1-ACDCBLW- Indoor unit DGA2-ACDCBLW-12K DGA1-ACDCBLW-18K DGA1-ACDCBLW-24K Outdoor DWA3-ACDCBLW-12K DWA3-ACDCBLW-18K... -
Page 4: Equipment Description
Equipment description The equipment consists of an indoor unit and an outdoor unit air conditioning system. The system produces heating or cooling as required. The system can be powered in several ways. • By DC solar alone. It will start up and run on just the solar •... -
Page 5: Standards Reference
Standards reference The standards listed here may not be all applicable standards. Check local and national standards for additional applicability. Check for the latest revisions and clauses. Standards AS/NZS 1319 AS/NZS 1571 AS/ NZS 3000 As/ NZS 3500 AS/NZS 4777 AS/NZS 5033 AS/NZS 5149 IEC 62109... -
Page 6: Safety Precautions
Safety Precautions Warning • All Electrical work must be performed by a licenced technician according to local regulations and the instructions given in this manual. • Installation must be performed by an authorized dealer or specialist. Defective installation can cause water leakage, electrical shock, or fire. •... -
Page 7: Indoor Unit Mounting Instructions
Indoor unit mounting instructions Prior to installation: Before installing the indoor unit, refer to the label on the product box to make sure that the model number of the indoor unit matches the model number of the outdoor unit. Before installing the indoor unit, you must choose an appropriate location. The following list will help you choose an appropriate location for the unit. - Page 8 15cm (5.9in) 12cm 12cm (4.75in) (4.75in) 2.3m (90.55in) Mount the indoor unit mounting plate on a secure surface that is sufficiently dense to prevent unwanted noise and vibration. Level the mounting plate and secure with appropriate anchors. Measure and drill the pipe penetration hole. Page 7 of 32 Revision 10 Nov 2020...
-
Page 9: Outdoor Unit Mounting Instructions
The indoor hole must be higher than the outdoor hole so that condensate water will drain. Outdoor unit mounting Instructions Install the condensate drain if required. The outdoor unit will condense water when the system is in heating mode. Consult local regulations for drainage connections. Mount the unit on an approved wall mounting bracket and secure or mount the unit on a secure waterproof surface and secure. -
Page 10: Refrigerant Pipe Specifications
Select a location that allows for sufficient air flow, that is free of obstructions. Refrigerant pipe Specifications The system has a maximum ambient operating temperature of 58 degrees Celsius. The maximum pressure is 3541 Kpa / 514 Psig. Piping must be specified in accordance with AS /NZS 1571. The minimum wall thickness is 0.81 mm for 6.35mm/1/4 inch to 12.7mm / ½... -
Page 11: Maximum Length Of Piping
Maximum Length of piping Maximum pipe Length, Pipe sizes, Maximum head DGWA2- DGWA1- DGWA1- Unit ACDCBLW-12K ACDCBLW-18K ACDCBLW-24K DGA2- DGA1- DGA1- Indoor unit ACDCBLW-12K ACDCBLW-18K ACDCBLW-24K DWA3- DWA3- DWB2- Outdoor unit ACDCBLW-12K ACDCBLW-18K ACDCBLW-24K Max pipe length �� # & �� �� ��... -
Page 12: Pressure Testing The System
Remove the protective caps from the valves. Align flared pipe ends with the valves and hand tighten. Use a spanner to support the valve. (see illustration below) While supporting the body of the valve use a torque wrench to tighten the nuts. Repeat for the indoor unit connections. -
Page 13: Releasing The Refrigerant Into The System
Releasing the refrigerant into the system Check that the low-pressure hose is connected to the low-pressure side of the outdoor unit. Check that the system has been evacuated to 500 microns. Remove the Vacuum micron gauge to prevent damage to it. Open the low pressure and high-pressure valves by winding them out anti clockwise until seated. -
Page 14: Electrical Connections
Electrical Connections Maximum input power AC Circuit Breaker size DC input parameters DGWA2- DGWA1- DGWA1- Unit ACDCBLW-12K ACDCBLW-18K ACDCBLW-24K DGA2- DGA1- DGA1- Indoor unit ACDCBLW-12K ACDCBLW-18K ACDCBLW-24K DWA3- DWA3- DWB2- Outdoor unit ACDCBLW-12K ACDCBLW-18K ACDCBLW-24K 1Ph 208V- 1Ph 208V- 1Ph 208V- Power AC 240V/50-60HZ 240V/50-60HZ... -
Page 15: Installation Of Solar Modules
Connect 230 Volt AC to a dedicated circuit from the Distribution board. Note the circuit breaker must provide Residual Current Device (RCD) protection per AS / NZS 3000 clause 2.6.3.2.3.3. Note Per AS / NZS 3000 clause 4.19, the indoor and outdoor unit AC power must be isolated by an isolation switch adjacent to the outdoor unit. -
Page 16: Solar Array Maximum Current
Solar Array maximum current. Paralleling of the solar array is not recommended as the maximum rated Array Short circuit current is 12 amps. Galvanic considerations outdoor unit. The outdoor unit is to be treated as a non-galvanically isolated regulator. The solar isolation switches must be rated for the full array voltage and current. - Page 17 Solar modules are large and require careful handling. Only a qualified technician should install Solar Modules. Solar arrays are current limited sources. Use appropriate protection measures when working on them. They contain hazardous DC voltages. Installation of Solar Modules should be performed only by qualified persons, who are familiar with the mechanical and electrical requirements.
- Page 18 Completely cover the module with an opaque material during installation to keep electricity from being generated. Do not touch the ends of live wires. Do not wear metallic rings, watchbands, ear, nose lip rings or other metallic devices while installing or troubleshooting photovoltaic systems Use only insulated tools that are approved for electrical installations.
-
Page 19: Solar Array Mechanical Installation
The module frame must be properly earthed. Removal on any one module must not interrupt the earthing of the remaining modules. Solar Array Mechanical installation Selecting an installation place: • Select a suitable place for installation of the solar modules. The modules should not be shaded during the solar window part of the day. - Page 20 • Modules must be securely attached to the mounting structure using four mounting points for normal installation. If additional wind or snow loads are considered for the installation additional mounting points should also be used. • The support frame must be made of durable, corrosion resistant and UV resistant material.
-
Page 21: Solar Array Wiring
Provide adequate ventilation under a module for cooling. 50 mm minimum between the module and the mounting surface. Pole mounting: When installing the modules on a pole, choose a pole and module mounting structure that will withstand anticipated winds for the area. The pole must have a solid foundation. Solar Array Wiring The array is formed of modules in series. - Page 22 General installation: • Do not use modules of different configurations in the same system. • The solar photovoltaic array consists of a maximum of 10 modules of 270 watts or 8 modules of 370 watts. • The solar array total system voltage must not exceed 380 volts DC open circuit. If installed in an area that experiences temperatures lower than 20 degrees C the Voltage open circuit will rise and a calculation must be done by a qualified technician.
-
Page 23: Earth Fault Protection Solar Dc
Earth Fault Protection Solar DC Roof mounted DC PV arrays located on dwellings must be provided with DC earth fault protection per US Electrical code NEC 2005 Article 690.5. Earth fault protection isolates the Neutral conductor. (in DC this is usually the negative wire) from earth when a ground fault occurs. -
Page 24: Signage
Signage Additional Solar signage to be posted on the outdoor unit To be posted adjacent to the AC and DC isolating Switches. Page 23 of 32 Revision 10 Nov 2020... -
Page 25: Electrical And Gas Leak Checks
Electrical and Gas Leak checks. Gas Leak checks Prior to the test run check for gas leaks using the following methods: Soap and water method Using a soft brush, apply soapy water or liquid detergent to all pipe connection points on the indoor and outdoor unit. -
Page 26: Test Run
Test Run Before the test run: Verify that: • The unit’s electrical system is safe and will operate properly • The gas leak checks have been performed • Confirm that the low- and high-pressure valves are fully open The test should run for at least 30 minutes Connect power to the unit Press the On/Off button on the remote while pointing it at the indoor unit. -
Page 27: Maintenance
Maintenance Indoor unit: Turn off the air conditioner. Open the indoor unit cover and remove the air filters. Vacuum and wash the air filter in warm soapy water. The water should be less than 40 degrees C to prevent deformation of the air filter. Allow the filter to dry. -
Page 28: Operation
Operation The air conditioner has an infrared remote and an android or I phone app. Remote control operation Some functions may not be available in all units. Page 27 of 32 Revision 10 Nov 2020... - Page 29 remote control continued Page 28 of 32 Revision 10 Nov 2020...
-
Page 30: Android Or I Phone App
Android or I phone app 1. The indoor unit has a QR code that can be scanned to download the app. Download the app and register your phone number. 2. Turn the Solar air conditioner on, use the remote control and press the “LIGHT” button 8 times or more withing 10 seconds. -
Page 31: Troubleshooting And Repair
5. Use the app to control the air conditioner anywhere via WIFI. Observe the power saving data and view the power consumption by hour/day/month/year. Troubleshooting and Repair For Repair parts and service information contact Rob Miravet acdc@solaracdc.com.au Warning disassembly of the units can result in an electric shock hazard. This unit employs multiple sources of supply and care must be taken that all supplies are turned off and energy storage devices disconnected Page 30 of 32... - Page 32 Common Issues. Please check the following before contacting a repair company. Issue Possible Causes Unit does not turn on The Unit has a 3-minute protection feature that prevents the unit from when pressing the on overloading. The unit will not restart within three minutes of being turned off button off.
- Page 33 Problem Possible Causes Solutions Temperature setting may be higher than ambient Lower the temperature setting room temperature The heat exchanger on the Clean the affected heat indoor or outdoor unit is exchanger dirty Remove the filter and clean it The air filter is dirty according to instructions The air inlet or outlet of Turn the unit off, remove the...
