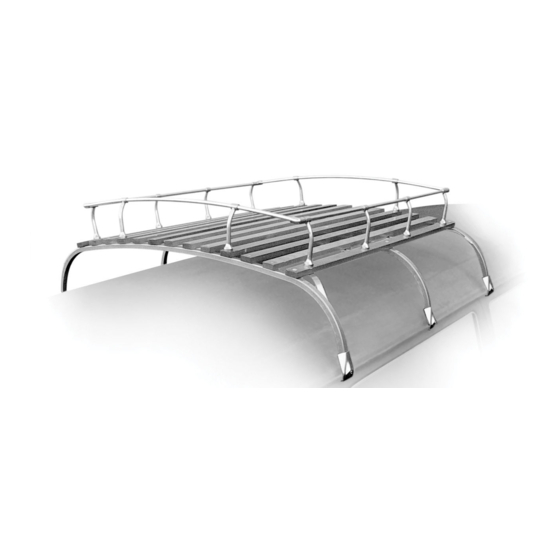

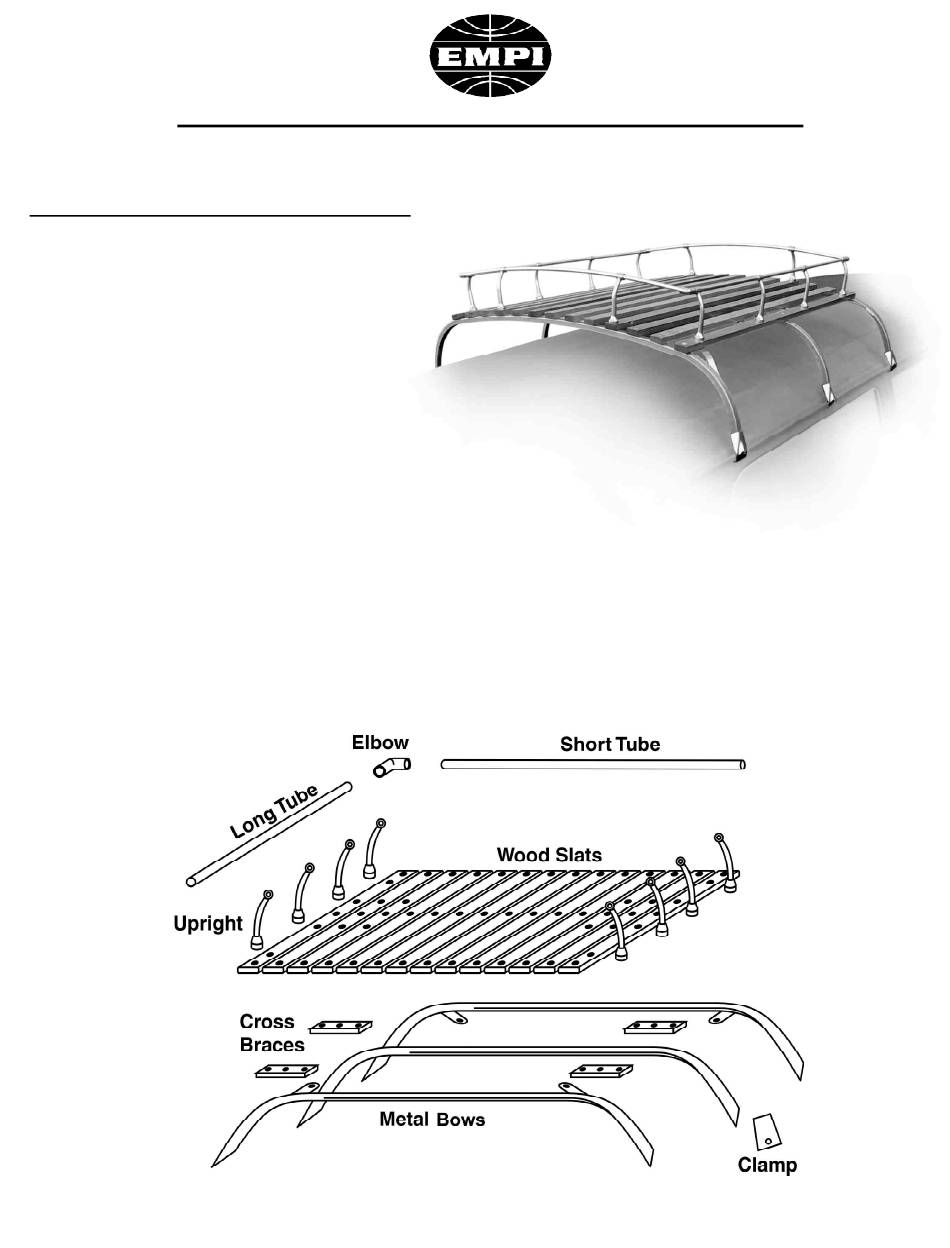

Installation Instruction for Roof Rack #15-2011-0
Packing List
Item
Description
1.
Wood Slat W/7 Holes
2.
Front and Rear Bows
3.
Middle Bow
4.
1/4" X 1 1/4" Carriage Bolts
5.
1/4" Hex Nut
6.
Wood Slat W/5 Holes
7.
Wood Slat W/2 Large Holes & 1 Small Hole
8.
Wood Slat W/3 Small Holes
9.
Sheet Metal Screw
10.
Cross Braces
11.
Uprights
12.
Long Aluminum Tube (1/2 Dia. 41 1/8")
13.
Short Aluminum Tube (1/2 Dia 40 ¼")
14.
Elbow
15.
M8 Hex Bolt
16.
M8 Flat Washer
17.
M8 X 30 Allen Head Bolt
18.
Clamp for Roof Channel
19.
1/4" X 1" Phillips Head Screw
Unpacking
1. After unpacking, the rack parts should be checked for any damage that may have occurred during shipping. Any damage should be reported to the
carrier immediately.
2. Check the contents against the packing list. The packing list format is set up as "Order of Installation".
Qty
2
2
1
8
14
4
2
5
43
4
12
2
2
4
8
16
4
6
6
99-4096/0306
Advertisement
Table of Contents
Summary of Contents for Empi 15-2011-0
- Page 1 Installation Instruction for Roof Rack #15-2011-0 Packing List Item Description Wood Slat W/7 Holes Front and Rear Bows Middle Bow 1/4” X 1 1/4” Carriage Bolts 1/4” Hex Nut Wood Slat W/5 Holes Wood Slat W/2 Large Holes & 1 Small Hole...
- Page 2 Installation Instruction for Roof Rack # 15-2011-0 Assembly 1. Attach 2 wood slats (item 1) to the three bows (items 2 & 3) as shown in diagram 1 using 6 carriage bolts (item 4) and 6 nuts (item 5). Note: Do not fully tighten any nuts, bolts, or screws until rack assembly is complete.
