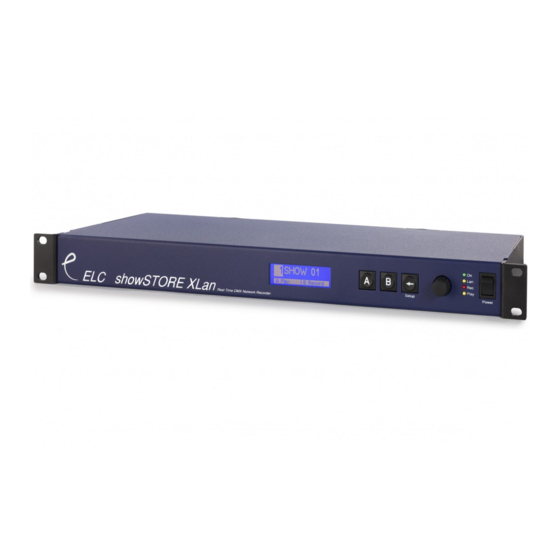

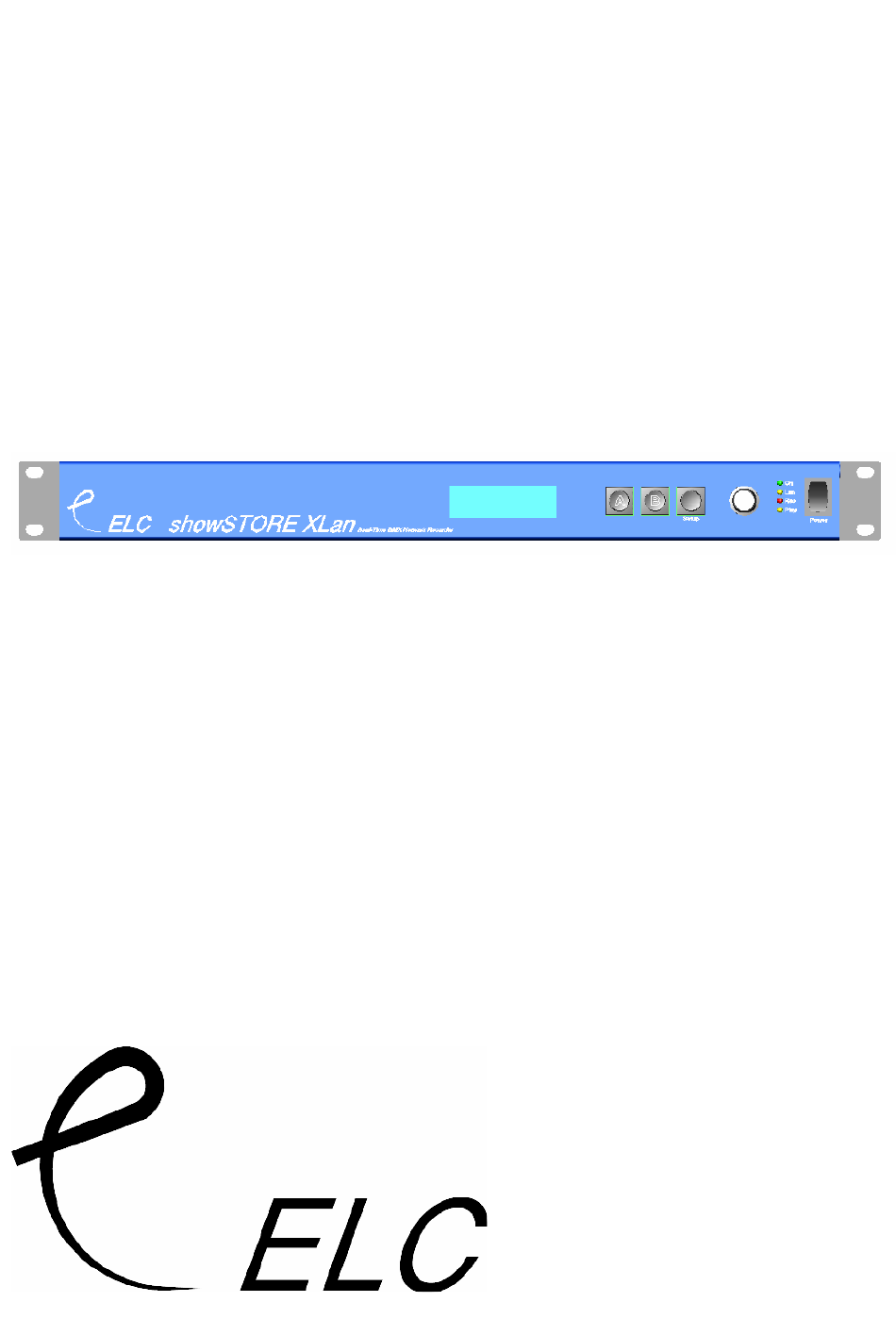

- Page 1 XLan 2048 channel DMX / Network recorder playback Users Manual Software version: 1.x...
- Page 2 The frontpanel has a graphic LC-display, 3 keys and a jog-encoder with push function and 4 LEDs. Connections at the back The showStore XLan has many connectivity options. Viewed at the back from left to right: RS-232 (top SUB-D 9pin)
-
Page 3: Operation
Operation The showSTore XLan can be controlled in several ways: Manual control via front panel RS-232 / MIDI Network TCP / Telnet DMX / Artnet Contact Closures Internal Real-Time Clock, with date support ELC AC612XL wall panel Main Display Playback the selected show... -
Page 4: Setup Options
Setup / Options The showStore XLan has a lot of setup options. All options are stored in the config.txt file (accessible via file exchange). Some options can be changed via the setup menu. In the main menu press (setup) key. - Page 5 MIDI / RS-232 The serial control for the showStore XLAn is via MIDI or RS-232. MIDI commands are used for the triggering system (described further I the manual), RS-232 is used by the ASCII command system (also described further in the manual).
- Page 6 The main display will change, indicating the status of the 4 playbacks. Each of the four parts on the display shows: • The playback number 1 – 4 • Playback status (hold / single / loop) • Show number • Showname •...
- Page 7 Automation / Remote Control Advanced Trigger The programming of the triggers is done in a text-file stored on the internal disk, named trigger.txt. This file can be edited via any text editor like notepad on windows. If this file does not exist on the disk, you can easily create it. Trigger entries are made up in 3 parts, trigger / condition / action.
- Page 8 dmx_on DMX input check ON trigger = dmx_on, 1 (valid if DMX input channel 1 > 55 %) dmx_off DMX intpu check OFF trigger = dmx_off, 512 (valid if DMX input channel 512 < 45%) Actions action = [playback,] action [, value] Actions are commands to the playback.
- Page 9 General Information CE – Product The showStore XLan permits to the CE requirements set up by the European Community. This can be recognized by this label on the outside of the product. This product may only be used for controlling dimmers and moving lights.
- Page 10 Designed and manufactured in the Netherlands by: ELC lighting Support contact: support@elclighting.com Distributed by: Worldwide distribution: ANIMA lighting Ltd Route du Stand 20 CH-1897 Le Bouveret Switzerland T +41 79 210 4613 F+4186 079 210 4613 Email: sales@elclighting.com URL: www.elclighting.com...
