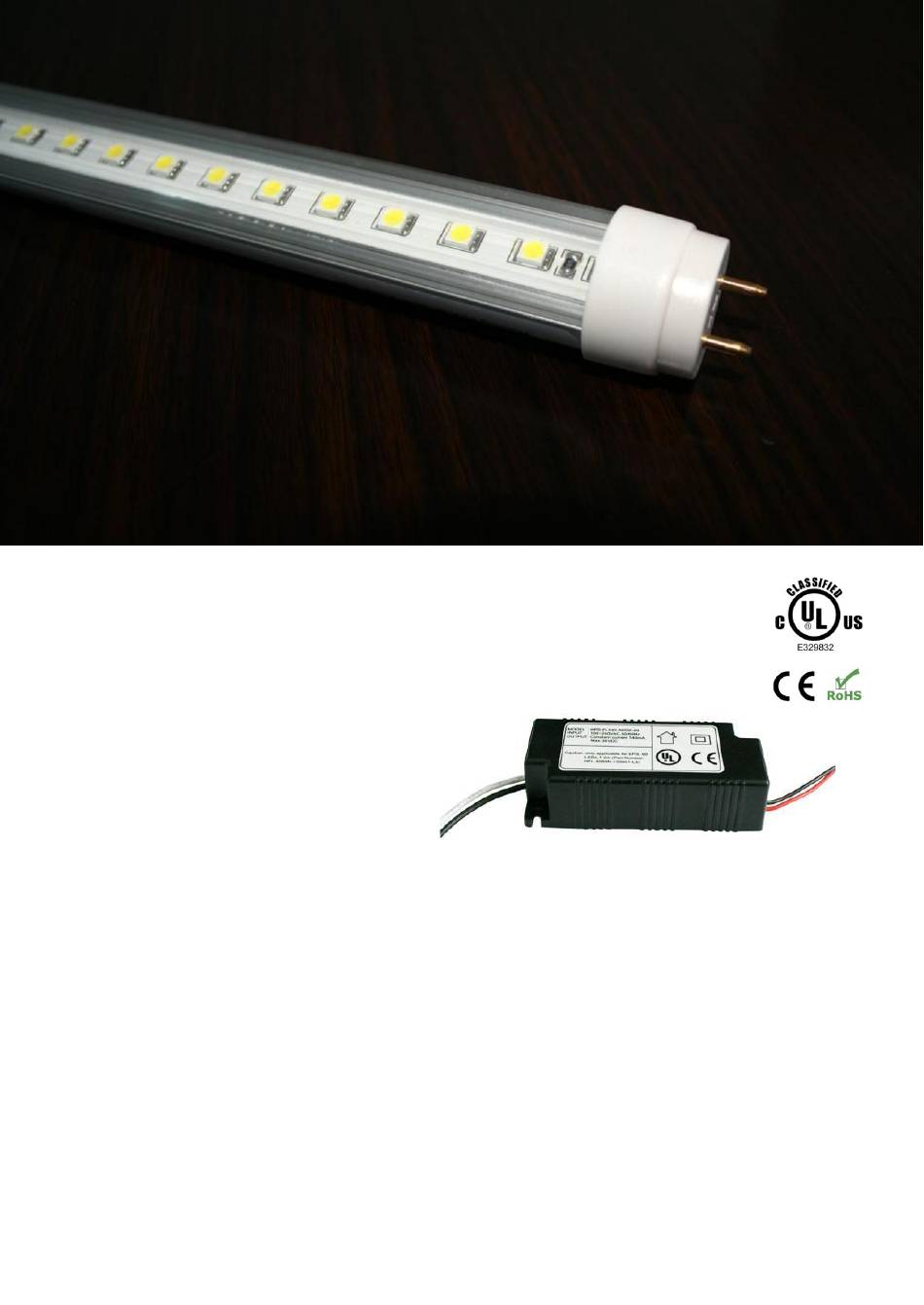

G5 series T8 LED Tube is an economic solution for fluorescent replacement, which can directly drop
into existing T8, T10, T12 fixtures, without ballast or starter.
G5 Series adopts 5050 SMD LED diodes, and clear lens to maximize lumen output.
The lamp can produce equivalent illuminance as fluorescent tube while save more than 50% energy.
G5 Series comes with UL listed external power supply, input voltage 100-277VAC. With power supply
placed outside, G5 Series achieves good thermal property.
For heat management, the lamp uses patented and proven solution, which can dissipate heat from LED
chip to air quickly and efficiently. Without heat buildup, it makes reliable and optimizes performance and
life span of the lamp.
Distributed by: Eco-$mart, Inc. (888)329-2705 ph / (941)377-9460 fx / info@eco-smart.com
Advertisement
Table of Contents
Summary of Contents for EcoSmart G5 Series
- Page 1 T8 LED Tube G5 Series G5 series T8 LED Tube is an economic solution for fluorescent replacement, which can directly drop into existing T8, T10, T12 fixtures, without ballast or starter. G5 Series adopts 5050 SMD LED diodes, and clear lens to maximize lumen output.
- Page 2 Features: -Economic version, high cost-effective; -Maximum lumen output with clear lens; -Higher Brightness (Max. 1797(48”in) lm;) -Stable performance with external power supply; -50% Energy saving; -Good light quality and good heat dissipation; -Minimum maintenance costs; -Green and eco-friendly lighting source without mercury.
-
Page 3: Ordering Information
Ordering Information Part Number Description Unit ECO-A-2G5 G5 EPS, Natural White, 40LEDs, 0.6m, Max. 36VDC, 120 degree, Clear Lens ECO-A-4G5 G5 EPS, Natural White, 80LEDs, 1.2m, Max. 36VDC, 120 degree, Clear Lens ECO-A-6G5 G5 EPS, Natural White, 100LEDs, 1.5m, Max. 36VDC, 120 degree, Clear Lens Technical Specifications Physical Specifications Length... -
Page 4: External Power Supply
Page 1 of 4 Installation Guide LED T8 External Driver NOTE: Please read this entire manual to fully understand and safely use this product. Included in this Box User Guide, 1 Set Accessory Kit, 1 Set, including -External Power Supply, 1 PCs -Wire Nuts, 5 PCs -Screws, 3 PCs External Power Supply... -
Page 5: Installation Steps
Page 2 of 4 Retrofit Luminaire with Electronic Ballast Before Figure 1 Installation Steps Step 1: Turn off main power before installation For safety, make sure main power source is switched off before attempting to install. Step 2: Take existing fluorescent light out. Existing fluorescent light is not needed. - Page 6 Page 3 of 4 After Figure 3 Step 5: Drop LED lamp into fluorescent luminaire. Switch main power on to light up LED lamp. Retrofit Luminaire with Magnetic Ballast Before Figure 4 Installation Steps Step 1: Turn off main power before installation For safety, make sure main power source is switched off before attempting to install.
- Page 7 Page 4 of 4 Step 4: Install the MATCHING external power supply shown as Figure 6 below. The external power supply is sized to match the luminaire and to be installed near the middle of the luminaire by 3M tape and screws provided. Connect input wires of external power supply to main power outlet.
