Setting Up the
Wireless PC Card
The instructions that follow parallel the steps contained in the Actiontec Installation
™
Buddy , which provides a visual guide to setting up the Pc card. It is recommended the
user run the Installation Buddy first, before attempting any other procedures.
To set up the PC Card, it must be connected to and configured with a computer,
and then connected to a wireless network. To do this, use the following instructions.

Connecting the PC Card

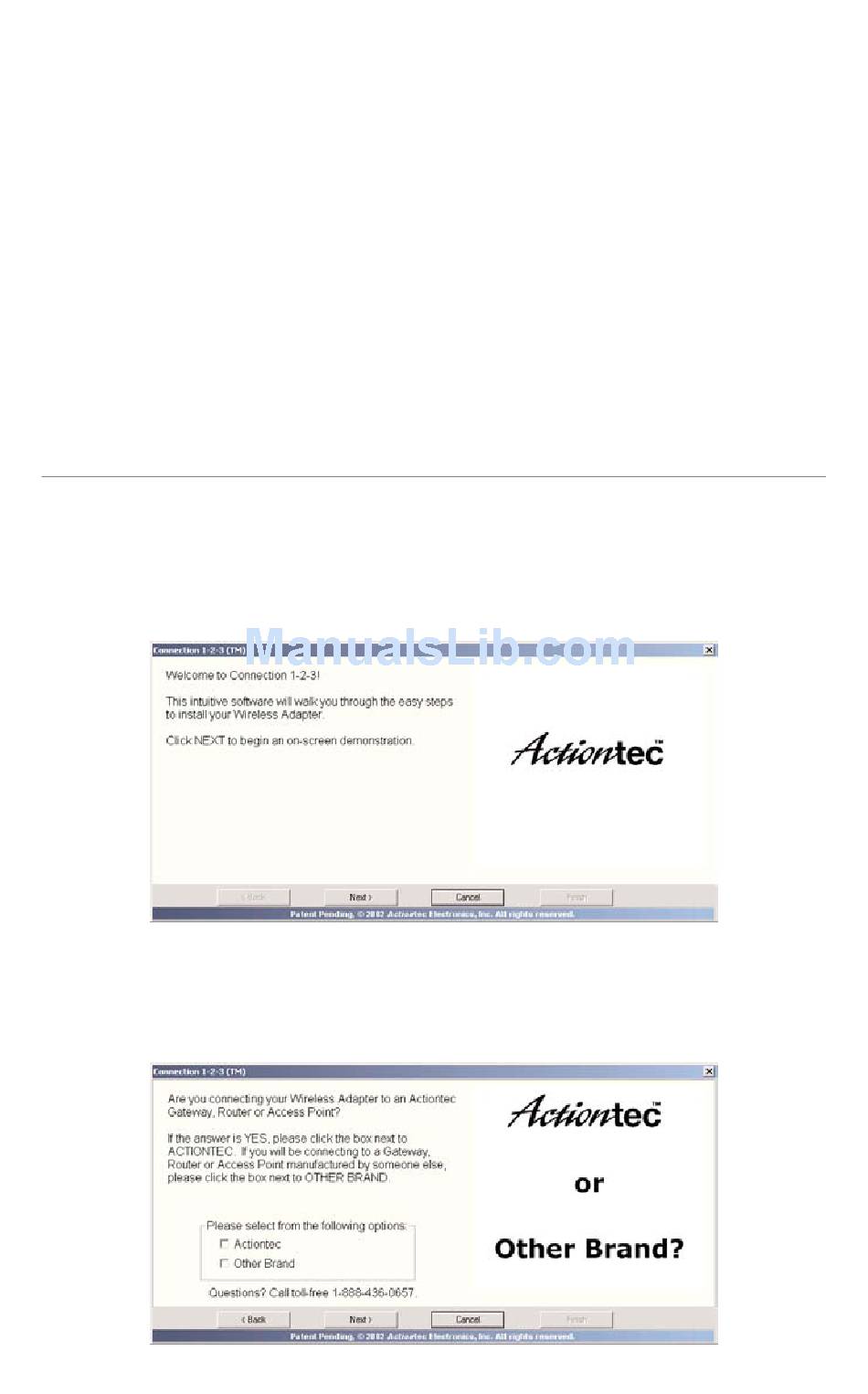

1. Insert the Actiontec Installation Buddy CD-ROM in the CD-ROM drive of the
computer. The Installation Buddy will start automatically. Wait until the fol-
lowing screen appears, read the onscreen instructions, then click Next.
2. The next window appears. Select the kind of router, gateway, or access point
the PC Card will connect to (Actiontec or Other Brand) by clicking in the
proper check box, then click Next.
