HERA LB Series Instruction Manual

Instruction Manual
Series: LB

Attentions:

Read the instruction carefully before installation，non-observance of this instruction may
!
cause damage to the fixture or hurt to human body. The installation must be carried out by
a qualified electrician in accordance with local or national codes.
Cut off the power supply before installation and maintenance !
Regularly check the light source , the LED power supply, the cord and other accessories.
If any part is damaged, the product should not be used.
Keep this instruction manual handy for future use.
The light source of these product are non-changeable light diodes(LED).
Do not disassemble the product, as the light diode can cause damage to the eyes.
Use only with Class 2 power supply

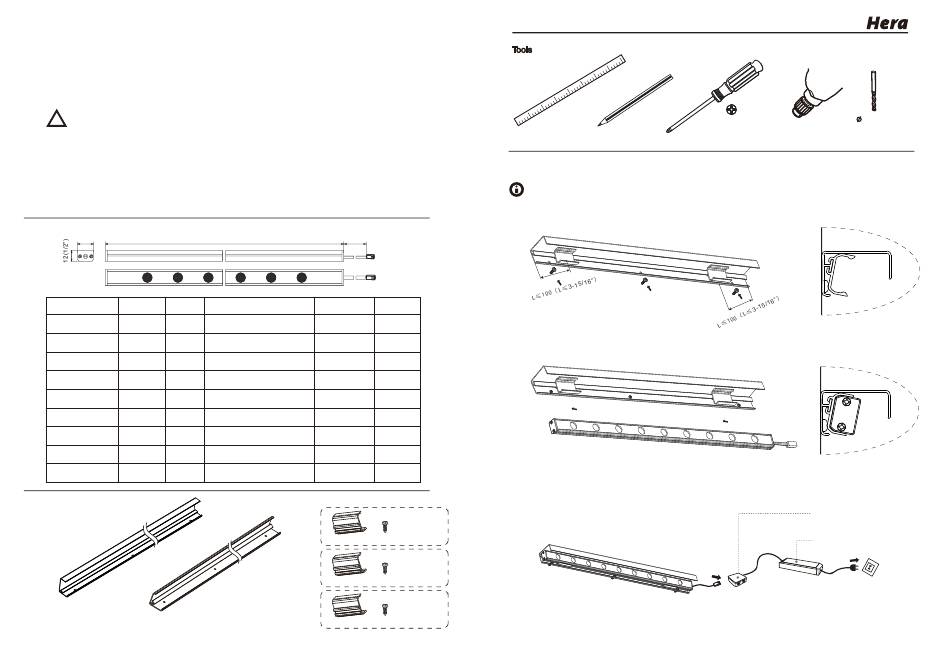

Dimension in mm(inch)
18(11/16")
Model Rated Input Power
LB/AL/10/4000/XX 24V 4W
LB/AL/12/4000/XX 24V 6W
LB/AL/14/4000/XX 24V 6W
LB/AL/18/4000/XX 24V 8W
LB/AL/20/4000/XX 24V 8W
LB/AL/21/4000/XX 24V 8W
LB/AL/25/4000/XX 24V 10W
LB/AL/29/4000/XX 24V 12W
LB/AL/33/4000/XX 24V 14W
1x(optional) 1x(optional)
1
L
50(2")
Minimum Mounting
Space(LxWxH) L
264x100x100mm 254
-20~35°C
(-4~95°F)
(10-3/8"x3-15/16"x3-15/16") (10")
317x100x100mm 307 -20~35°C
(-4~95°F)
(12-1/2"x3-15/16"x3-15/16") (12-1/16")
365x100x100mm 355
-20~35°C
(-4~95°F)
(14-3/8"x3-15/16"x3-15/16") (14")
470x100x100mm 460 -20~35°C
(-4~95°F)
(18-1/2"x3-15/16"x3-15/16") (18-1/8")
520x100x100mm 510 -20~35°C
(-4~95°F)
(20-1/2"x3-15/16"x3-15/16") (20-1/16")
525x100x100mm 515 -20~35°C
(-4~95°F)
(20-11/16"x3-15/16"x3-15/16") (20-1/4")
661x100x100mm 651 -20~35°C
(-4~95°F)
(26"x3-15/16"x3-15/16") (25-5/8")
770x100x100mm 760
-20~35°C
(30-5/16"x3-15/16"x3-15/16") (29-15/16") (-4~95°F)
865x100x100mm 855
-20~35°C
(34-1/16"x3-15/16"x3-15/16") (33-11/16") (-4~95°F)
2x 3x
2x 4x
2x 5x
Tools
Ruler
11° for Installation
1.Fixed the mounting seat.
ta
2.Fixed buckle.
LB/AL/10/4000/XX
LB/AL/12/4000/XX
LB/AL/14/4000/XX
LB/AL/18/4000/XX
LB/AL/20/4000/XX
LB/AL/21/4000/XX
LB/AL/25/4000/XX
LB/AL/29/4000/XX
LB/AL/33/4000/XX
Pencil Screwdriver Driller
®
14-15mm
(9/16")
Drill bit
Splitter
LED Power Supply
2
