Hubert 53232 Technical Bulletin

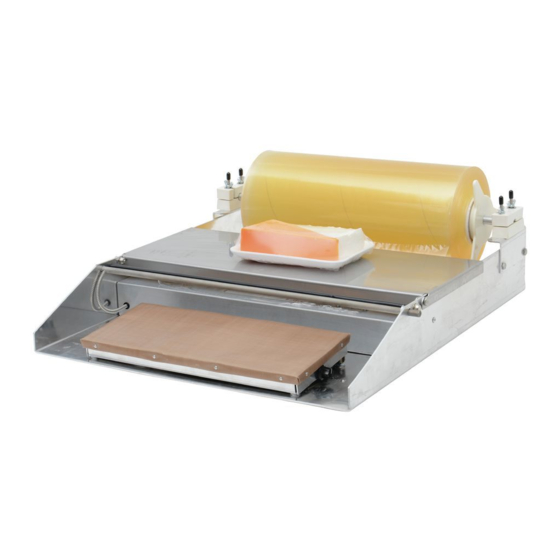

Film wrapper
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com
Directory
General and Safety Information
Technical Specifications
Operation
Film Roll Axle Assembly
Loading the Film Core Axle
Electrical Schematics
Testing
Troubleshooting
Maintenance
Parts Reference List
Film Wrapper
Technical Bulletin
2
3
4
4
5
5
6
7
7
8
Hubert #53232
U.L. Listed

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 53232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hubert 53232

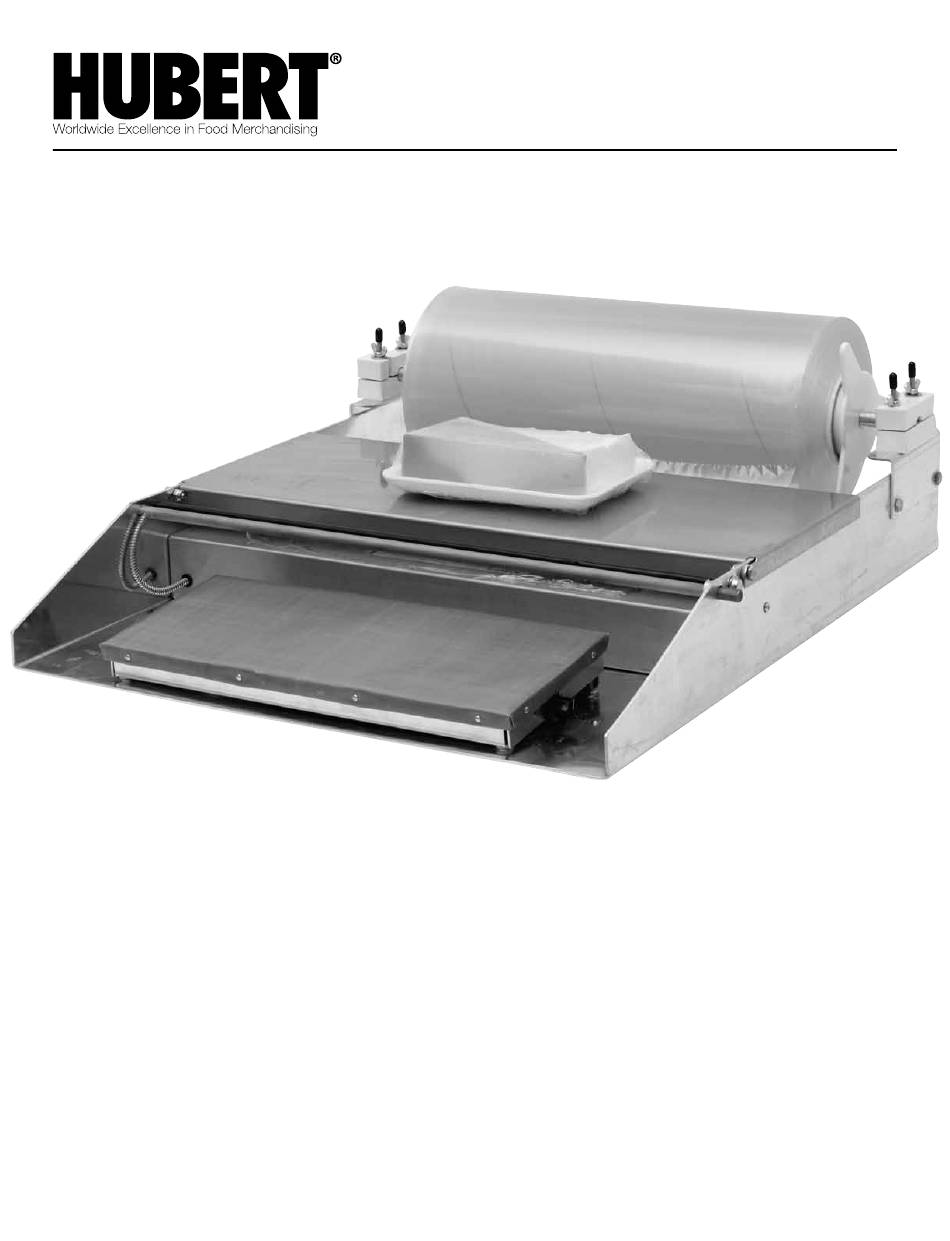

  • Page 1 Film Wrapper Technical Bulletin Hubert #53232 U.L. Listed 9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com Directory General and Safety Information Technical Specifications Operation Film Roll Axle Assembly Loading the Film Core Axle Electrical Schematics Testing Troubleshooting...

  • Page 2: General Information

    General information The Hubert Company is not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing.

  • Page 3: Technical Specifications

    Specifications Hubert #53232 U.L. Listed 9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com 1. Brace 2. Bar-1 1. Brace 3. Cover plate 2. Film Core Axle 4. Ledge 3. Cover Plate 5. Cap 4. Ledge 6. Bar-2 5.

  • Page 4: Operation

    Hubert #53232 U.L. Listed 9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com The wrapper is appropriate for fruit, vegetable, fish, meat, cold food, etc. First, insert the electrical plug into a standard NEMA 5 -15 outlet and switch on. A red light will appear. Turn the thermostat to set the desired temperature. Before starting the operation, let the machine preheat for 5 to 10 minutes.
  • Page 5 Schematics Hubert #53232 U.L. Listed 9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com loaDinG the film core axle: 1. Loosen all Wing Nuts. Swing out right and left Bearing Blocks. 2. Lift out the Axle Assembly. Unscrew Wing End Cap, position Pin End Cap for correct film width, secure with Pin and 0-Ring.
  • Page 6 Hubert #53232 U.L. Listed 9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com Testing the Cut-Off Rod: 1. Disconnect the “red” CUT-OFF ROD wire from terminals 1 and 2. 2. Using an ohmmeter, measure the resistance across “red” terminal wires.

  • Page 7: Troubleshooting And Maintenance

    Hubert #53232 U.L. Listed 9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com troUbleShootinG apparent Problem check Point Solution Cut-off rod fails to heat properly The cut-off rod and circuit board must be Replace if necessary tested together.
  • Page 8 Parts reference list Hubert #53232 U.L. Listed 9555 Dry Fork Rd., Harrison, OH 45030-1994 • 1-800-543-7374 • www.hubert.com Stock no. Description Stock no. Description 73233 6D 1 Amp AGC Fuse 23847 Pilot Light Red 77102 Fuse Holder 32011 Film Core Axel...
