Summary of Contents for DynaGen ToughLink TL-3600

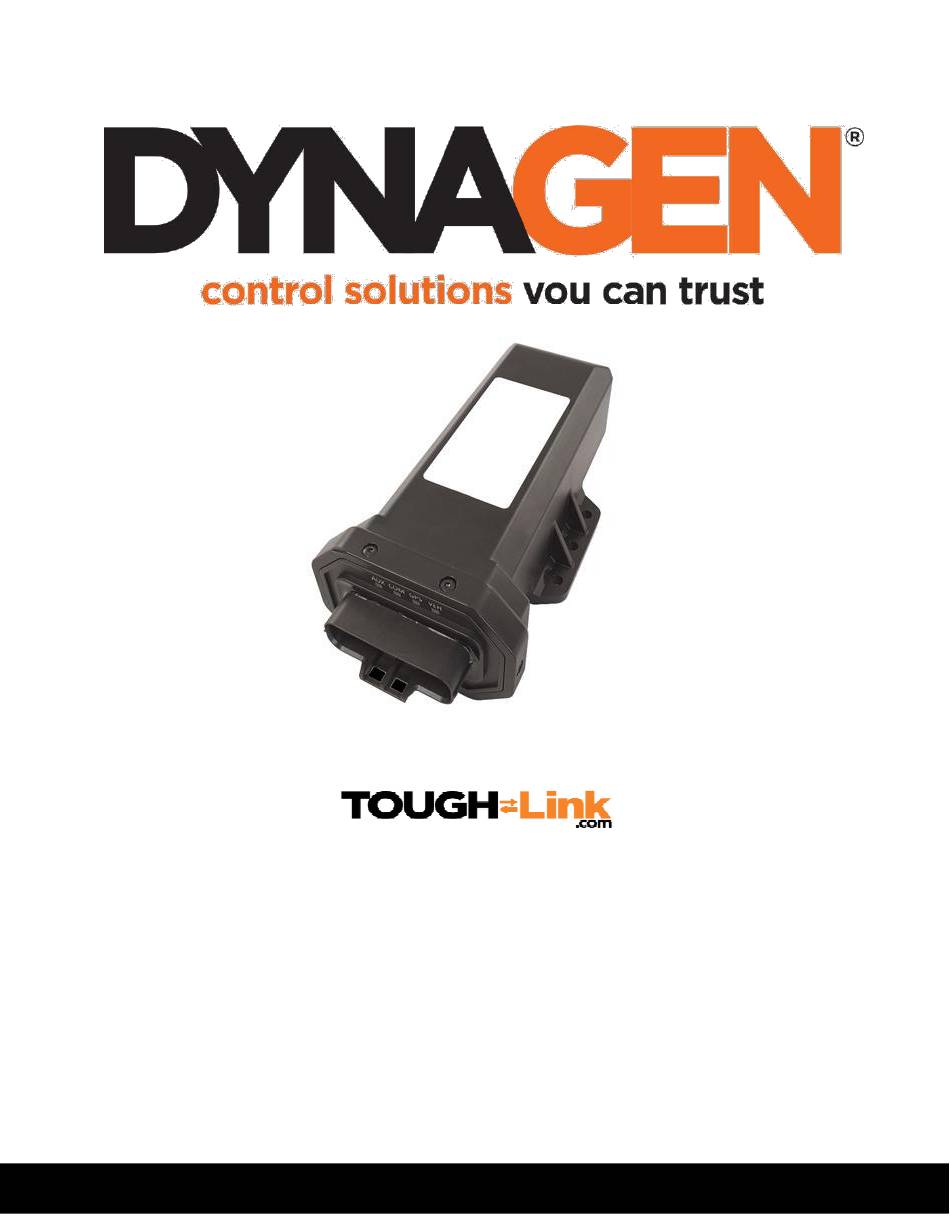

- Page 1 Remote Intelligence Gateway TL-3600 User Manual © 2019 Dynagen Technologies Inc.
-
Page 2: Table Of Contents
Size and placement of TTU Unit..................8 Access to SIM (Subscriber Identity Module) Card............8 Placement of Combination and Internal Access............. 9 Backup Battery........................9 Warranty..........................9 4. Activation Adding a new device to a subscription service ……………............10 TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. -
Page 3: Introduction
Placement of the units is usually within enclosures or on top of equipment canopies. Pin Diagram and Description Pin Numbering Fig. Mating Plug on the wire harness Fig. Connector receptacle on the TL-3600 TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. -
Page 4: Pin Description And Colors
Output_0 Yellow/ Blue Output_1 Blue Orange Vin Primary Violet Vin2 Gray Input_1 Green/ White Input_2 Blue/ White Input_3 Black/ White Input_4 Green/ Black ADC_1 Black K/L Line_15 Orange/ Black CAN1_L Green AUX1_TX Brown TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. -
Page 5: Status Of Leds
COM On - Searching Slow Blinking Network Available, Not yet registered Fast Blinking Registered but no Acknowledgement Alternates from Solid to Fast blinking From TOUGH-Link.com every 1 sec Registered and received Acknowledgement from TOUGH-Link.com Solid TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. -
Page 6: Gps Led- Green Identification
I/O. A device that provides this kind of protection is known as a TVS or a varistor. Fusing: A fuse should be placed in line with the battery +ve wire going to the TL-3600 unit power. A 10 A fuse is suggested. TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. -
Page 7: Installation
Protection from heat It is best not to place the TL-3600 unit in an unusually warm location such as directly near heater vents, near hot engine components or in direct sunlight. TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. Technologies Inc. -
Page 8: Size And Placement Of Ttu Unit
The whole PCB board slides out and the SIM holder is on the PCB board. The cover can be removed without unmounting the device from the asset. It is sealed with a gasket that is reusable. Screw driver required is TORX T8. TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc... -
Page 9: Placement Of Combination And Internal Access
TL-3600. Backup Battery The TTU-3640™ supports a Lithium-Ion 1000 mAh backup battery input to be used when primary power is lost; the supported voltage range is 9 to 16 VDC. Warranty 12 months TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. -
Page 10: Activation
TL-3600 and the email address to associate with your account. Your device will then be added to your account. For new TOUGH-Link.com accounts, users will receive login invitations at the email addresses provided. Email invitations will include instructions for your account. TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc. - Page 11 Activation 2. Once your device has been added to your account, login to the cloud at https://tough- link.com to view it. TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.
